DV125

DV125 VARIABLE DISPLACEMENT MOTOR Diagram

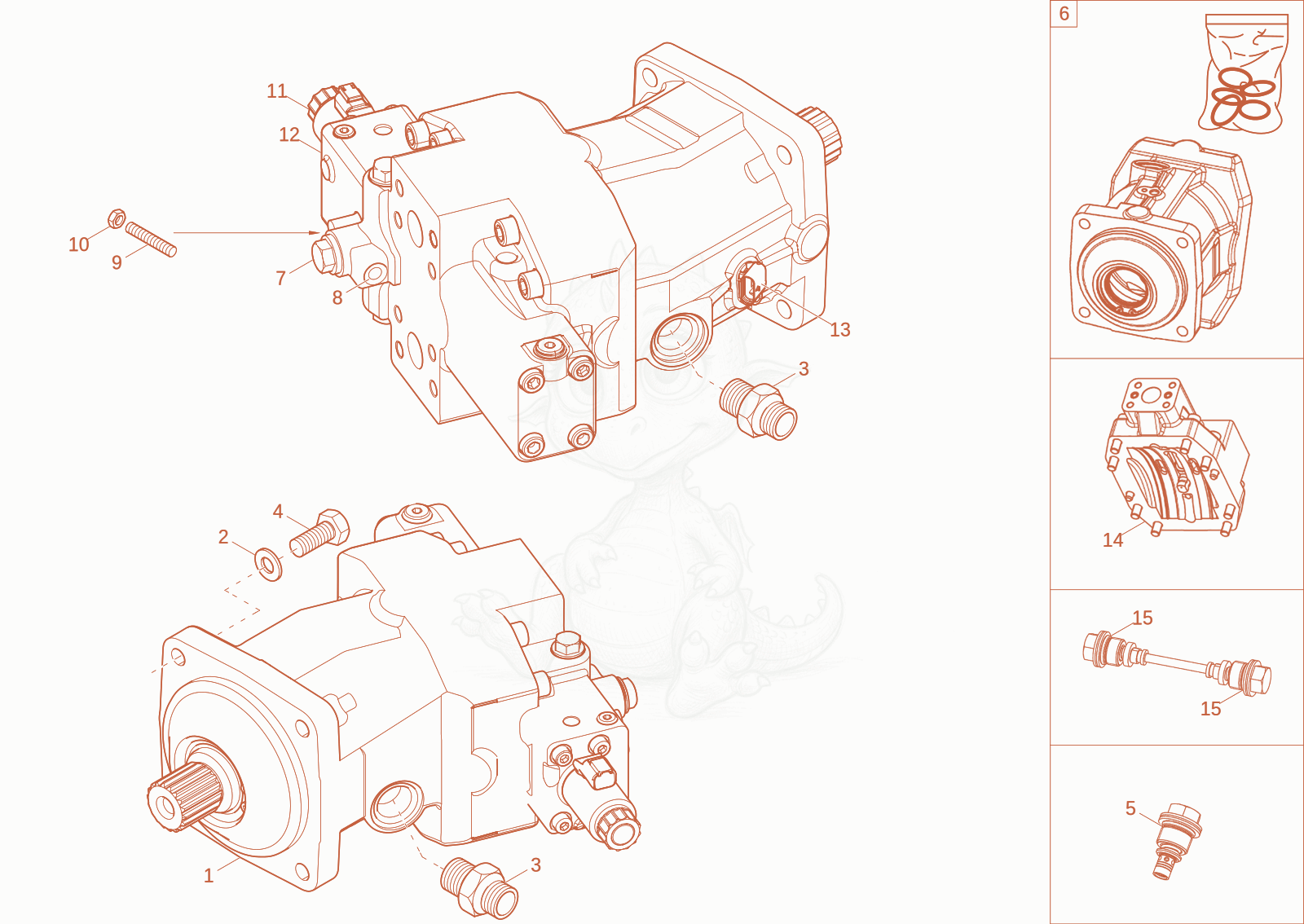

Exploded parts diagram of the VARIABLE DISPLACEMENT MOTOR of a Wacker Neuson DV125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000400872Not stocked
    displacement motor×1
  • 21000015450Not stocked
    northlock disc×4
  • 31000260785
    $33.13
    GE18LM27X2ORA3C - 1000260785×2
  • 41000085420
    $1.54
    hex screw - 1000085420×4
  • 51000266913
    $12.42
    O-ring - 1000266913×1
  • 61000409166Not stocked
    seal kit×1
  • 71000409167Not stocked
    pressure valve×1
  • 81000409168Not stocked
    washing valve×1
  • 91000409170Not stocked
    thread pin×1
  • 101000222501
    $5.68
    lodging nut - 1000222501×1
  • 111000409127
    $247.18
    Solenoid - 1000409127×1
  • 121000409169Not stocked
    replacement valve×1
  • 131000501192
    $249.84
    Rotational speed sensor - 1000501192×1
  • 141000224951
    $12.42
    O-RING - 1000224951×6
  • 151000266914
    $12.42
    O-ring - 1000266914×2
