DV125

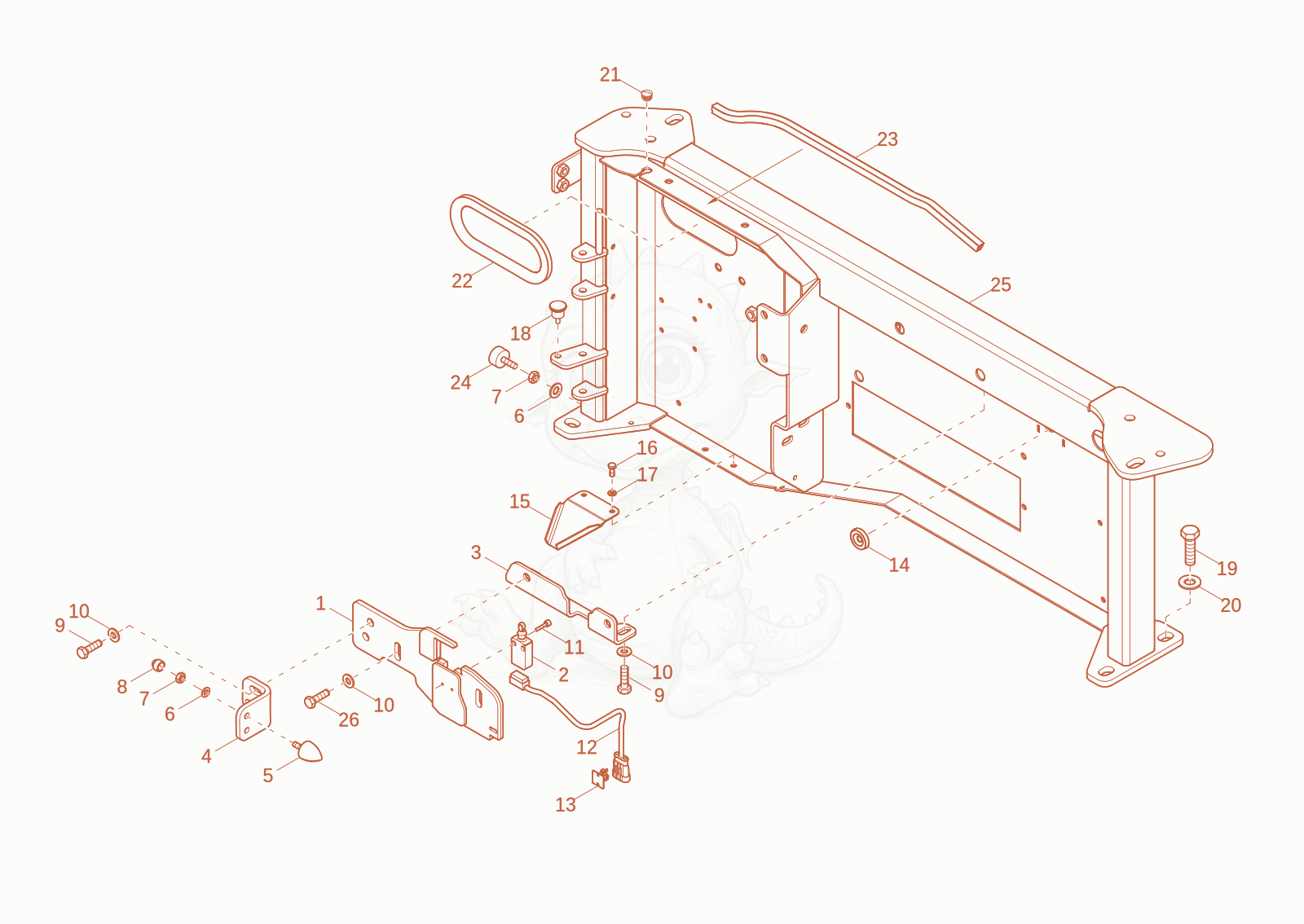

DV125 REAR WALL Diagram

Exploded parts diagram of the REAR WALL of a Wacker Neuson DV125, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000432742
    $138.48
    locking - 1000432742×1
  • 21000305832
    $143.75
    SWITCH - 1000305832×1
  • 31000456689
    $86.86
    plate - 1000456689×1
  • 41000384682Not stocked
    limit stop×1
  • 51000241699
    $27.74
    rubber buffer - 1000241699×1
  • 61000015431Not stocked
    washer×2
  • 71000013021Not stocked
    hexagon nut×2
  • 81000004276Not stocked
    cover cap×1
  • 91000015364Not stocked
    hex screw×4
  • 101000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 111000048155Not stocked
    cheese head screw×2
  • 121000254757
    $114.97
    cable - 1000254757×1
  • 131000346429
    $13.74
    sockets - 1000346429×2
  • 141000274374
    $17.59
    rubber sleeve - 1000274374×1
  • 151000476487
    $48.17
    plate - 1000476487×1
  • 161000085382
    $0.70
    HEX SCREW - 1000085382×2
  • 171000015430Not stocked
    u-washer×2
  • 181000247956
    $27.90
    pin detent - 1000247956×1
  • 191000085429
    $1.71
    HEX SCREW - 1000085429×4
  • 201000082679
    $0.75
    Washer M16-DIN134 - 1000082679×4
  • 211000279891
    $1.65
    PLUG - 1000279891×1
  • 221000098163
    $5.21
    edge protection - 1000098163×0.5
  • 231000369581
    $13.26
    seal - 1000369581×0.5
  • 241000350999Not stocked
    metal-rubber buffer×1
  • 251000506779
    $906.81
    rear plate - 1000506779×1
  • 261000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
