Wheel dumper DW100

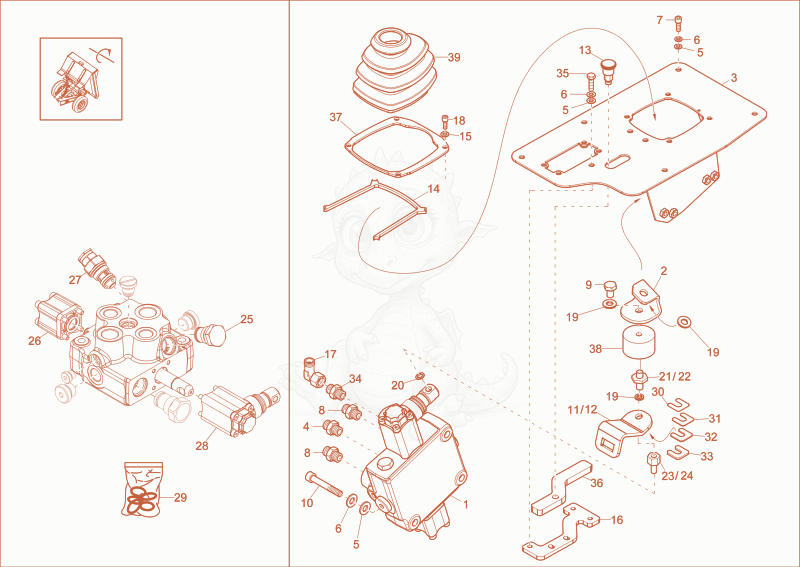

DW100 control valve Diagram
- 11000329171Not stockedcontrol block×1
- 21000345226Not stockedbracket×1
- 31000345221Not stockedcover plate×1
- 41000015494Not stockedscrew joint×1
- 51000015431Not stockedwasher×11
- 61000015437Not stockedlock washer×11
- 71000019593Not stockedcheese head screw×5
- 81000015533Not stockedscrew joint×2
- 91000013009Not stockedhex screw×1
- cheese head screw - 1000085464×3
- 111000345230Not stockedlocking sheet×1
- 121000402388Not stockedlocking sheet×1
- pin detent - 1000247956×1
- 141000351705Not stockedshim×1
- 151000015436Not stockedlock washer×4
- 161000345229Not stockedthread plate×1
- 171000015513Not stockedscrew joint×1
- allen screw M6x20-8.8 A2C-DIN912 - 1000085456×3
- NORTHLOCK DISC - 1000082678×3
- Nord-Lock disc NL8 - 1000094995×1
- 211000345343Not stockedthread rod×1
- 221000402390Not stockedthread rod×1
- SCREW - 1000332983×1
- 241000402387Not stockedthread rod×1
- 251000333234Not stockednon return valve×1
- 261000333211Not stockedback adjust stick set×1
- 271000329929Not stockedPort relief valve×1
- 281000333212Not stockedlever fastening set×1
- 291000333198Not stockedseal kit×1
- shim - 1000333027×1
- shim - 1000333026×1
- shim - 1000333025×1
- shim - 1000333024×1
- GE18LR1/2EDOMDA3C - 1000082979×1
- 351000015343Not stockedhex screw×3
- 361000345225Not stockedlocking×1
- 371000351706Not stockedfixing plate×1
- 381000332828Not stockedrubber buffer×1
- bellow - 1000341333×1
