Wheel dumper DW100

DW100 FOOT BRAKE Diagram

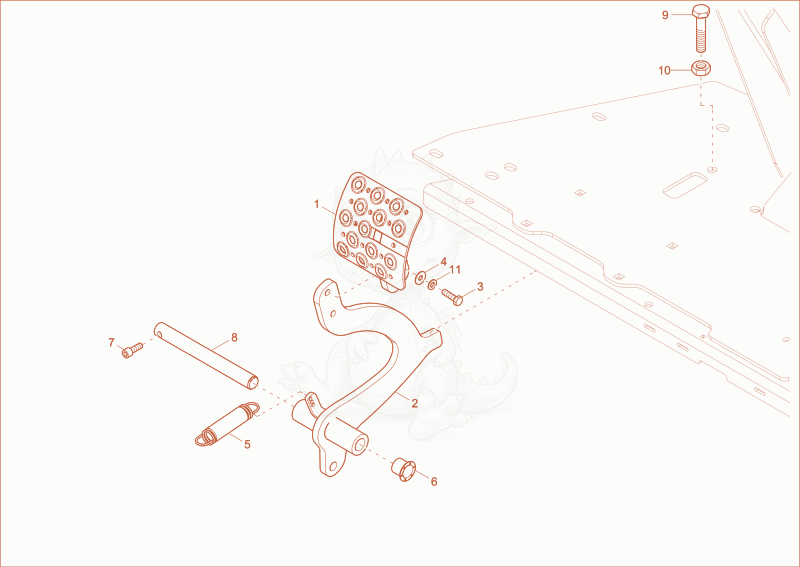

Exploded parts diagram of the FOOT BRAKE of a Wacker Neuson DW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000324070Not stocked
    brake pedal×1
  • 21000330685Not stocked
    brake pedal×1
  • 31000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 41000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 51000325633Not stocked
    tension spring×1
  • 61000066462Not stocked
    slide bearing×4
  • 71000082295
    $1.10
    cheese head screw - 1000082295×1
  • 81000323777
    $30.27
    PIN - 1000323777×1
  • 91000085414
    $0.98
    hex screw - 1000085414×1
  • 101000015407Not stocked
    hexagon nut×1
  • 111000015438Not stocked
    lock washer×2
