Wheel dumper DW100

DW100 TILT CYLINDER OPERATION Diagram

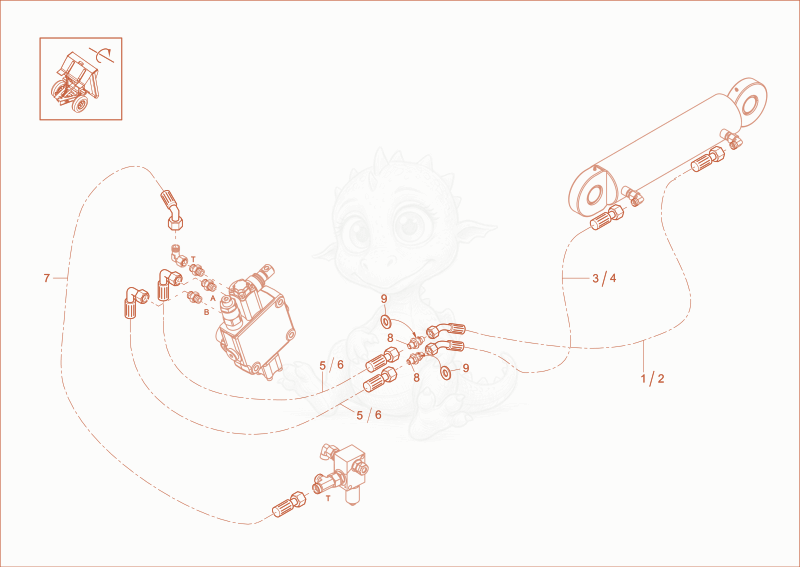

Exploded parts diagram of the TILT CYLINDER OPERATION of a Wacker Neuson DW100, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000331432
    $89.36
    SLHYDR 2SC 12 PN15 45 PN15 0 L1850 0 - 1000331432×1
  • 21000349509
    $179.11
    SLHYDR 2SCP12 PN15 45 PN15 0 L1850 - 1000349509×1
  • 31000331380
    $78.54
    SLHYDR 2SC 12 PN15 45 PN15 0 L1400 0 - 1000331380×1
  • 41000349512Not stocked
    Hose×1
  • 51000331437
    $118.73
    SLHYDR 2SC 12 PN15 90 PN15 0 L3500 0 - 1000331437×2
  • 61000349504Not stocked
    Hose×2
  • 71000330564
    $108.59
    SLHYDR 1SC 16 PN18 45 PN18 0 L2200 0 - 1000330564×1
  • 81000015550Not stocked
    lock screw connection×2
  • 91000082620
    $0.08
    washer 23 - 1000082620×2
