ET08

ET08 FLOOR PANEL SPC Diagram

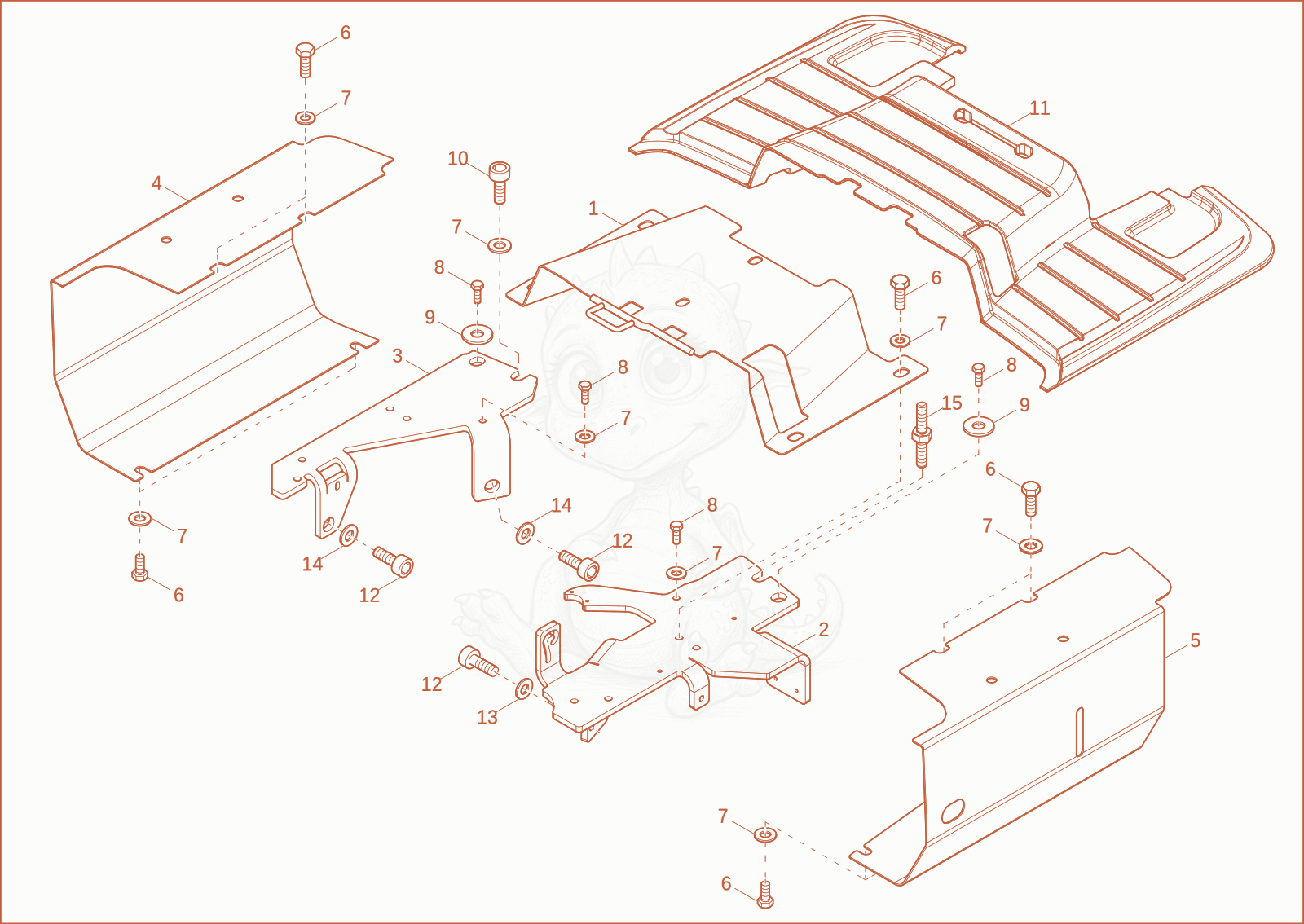

Exploded parts diagram of the FLOOR PANEL SPC of a Wacker Neuson ET08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000500330
    $383.50
    Cover - 1000500330Unknown×1
  • 11000562862Not stocked
    Cover×1
  • 21000151152
    $237.73
    Support 1000151152Unknown×1
  • 21000531145Not stocked
    support×1
  • 31000151153
    $171.50
    Support 1000151153Unknown×1
  • 31000531144Not stocked
    support×1
  • 41000323859Not stocked
    side plate×1
  • 51000323860Not stocked
    side plate×1
  • 61000013009Not stocked
    hex screw×12
  • 71000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×14
  • 81000085433
    $1.42
    HEX SCREW - 1000085433×4
  • 91000015442Not stocked
    u-washer×2
  • 101000085503
    $0.93
    cheese head screw - 1000085503×1
  • 111000497209Not stocked
    foot mat×1
  • 121000085510
    $1.03
    allen screw M 12x30-10.9DACRO500DIN912 - 1000085510×3
  • 131000049219Not stocked
    washer×1
  • 141000085610
    $0.43
    WASHER - 1000085610×2
  • 151000259182
    $4.46
    limit stop - 1000259182×1
