ET08

ET08 FUEL SUPPLY (Option) SPC Diagram

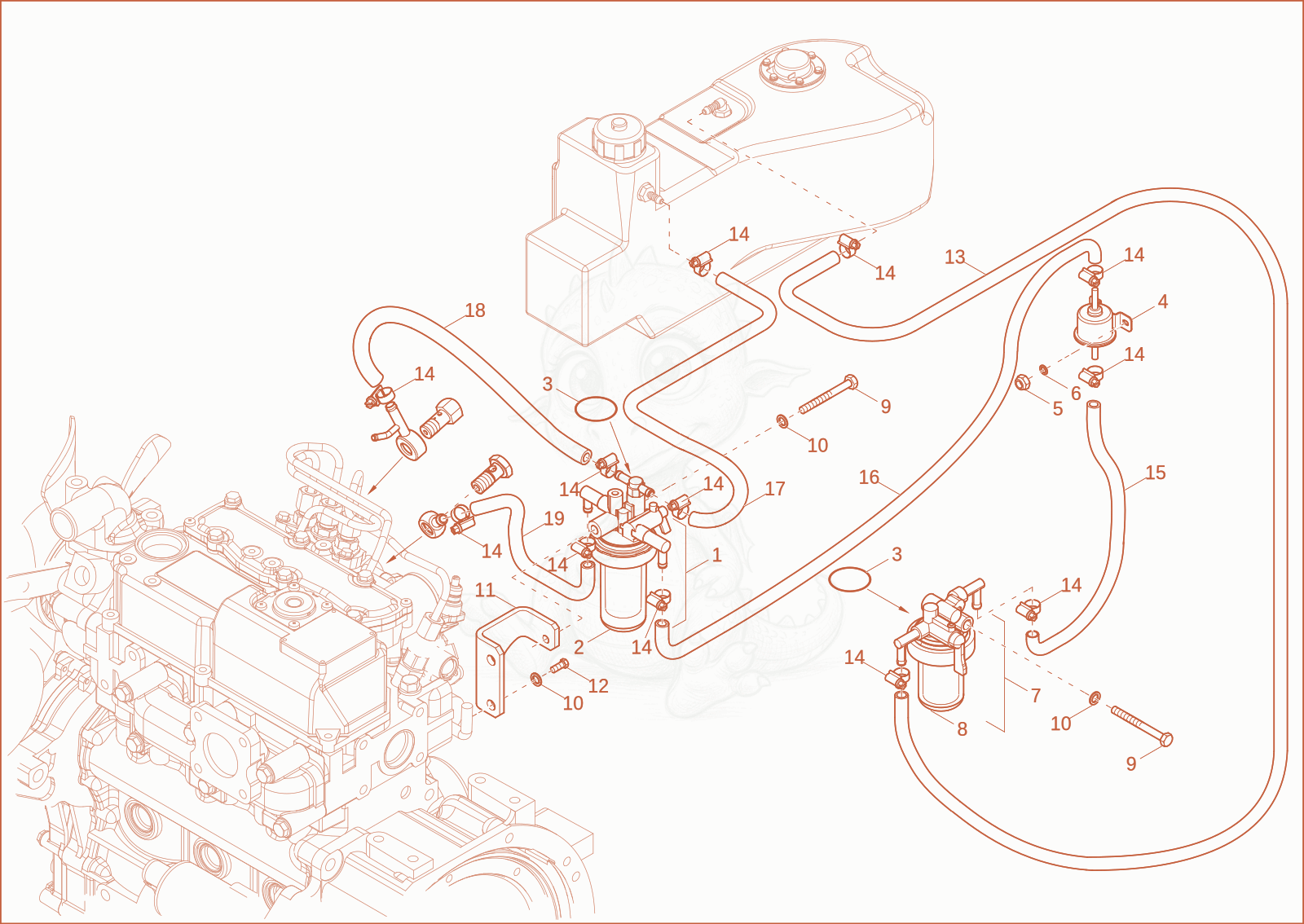

Exploded parts diagram of the FUEL SUPPLY (Option) SPC of a Wacker Neuson ET08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15100070475
    $66.60
    Fuel Filter - 5100070475×1
  • 25100070476
    $66.10
    Fuel Filter Element - 5100070476×1
  • 31000503594Not stocked
    o-ring×2
  • 41000093894
    $299.72
    FUEL PUMP - 1000093894×1
  • 51000085588
    $0.32
    self-locking nuts M6-8 A2C-DIN985 - 1000085588×2
  • 61000094966
    $0.65
    washer M6,4-DIN134 - 1000094966×2
  • 71000466934
    $325.85
    WATER SEPERATOR - 1000466934×1
  • 81000535909Not stocked
    Water seperator element×1
  • 91000022334Not stocked
    hex screw×2
  • 101000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×4
  • 111000301678
    $14.05
    bracket dieselfilter - 1000301678×1
  • 121000085495
    $0.07
    cheese head screw M 8x16-8.8 A2C - 1000085495×2
  • 131000523667Not stocked
    fuel line×1.3
  • 145000402180
    $18.26
    CLAMP-HOSE - 5000402180×12
  • 151000523667Not stocked
    fuel line×0.95
  • 161000523667Not stocked
    fuel line×0.35
  • 171000523667Not stocked
    fuel line×1
  • 181000523667Not stocked
    fuel line×0.4
  • 191000523667Not stocked
    fuel line×0.4
