ET08

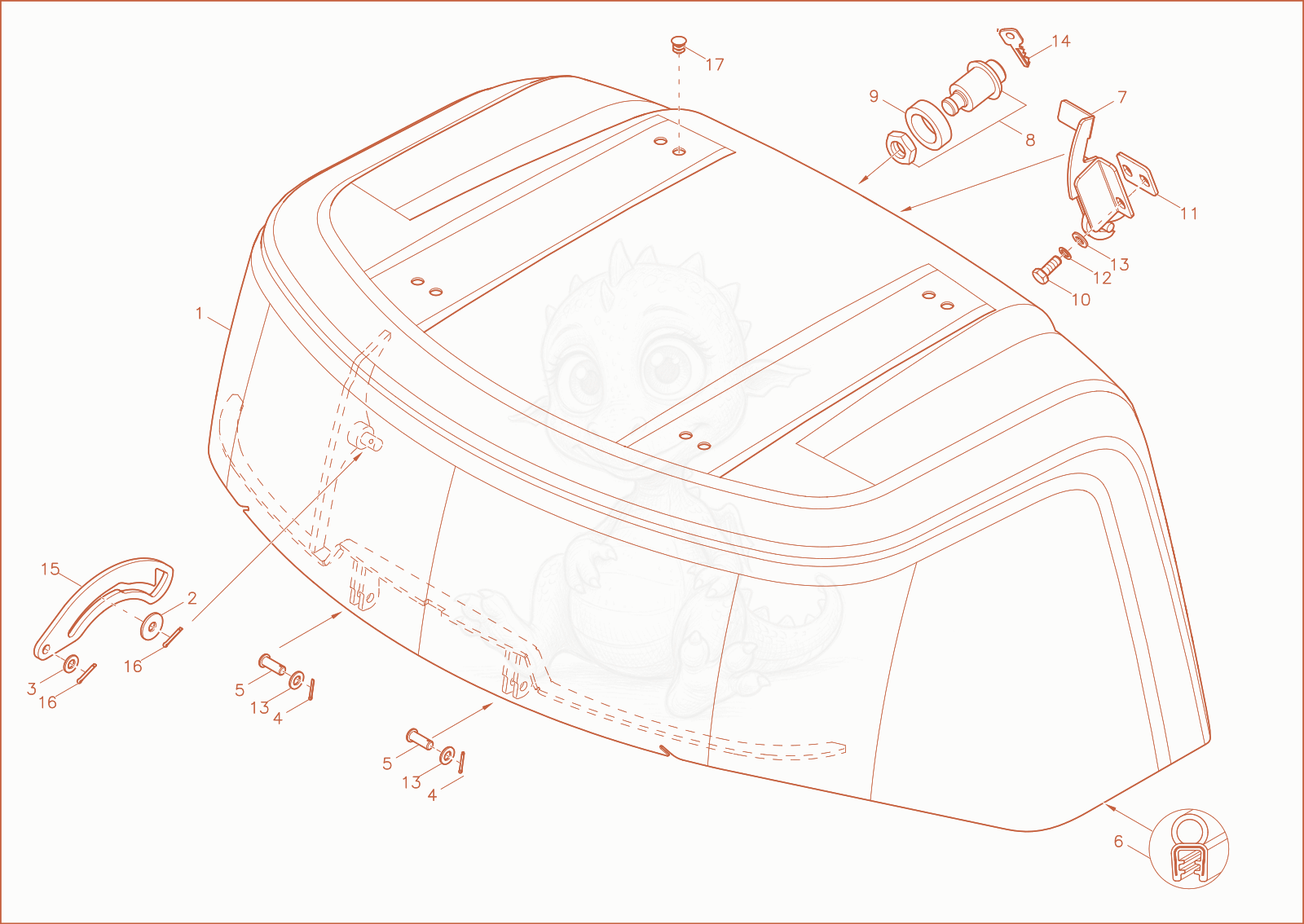

ET08 Engine hood SPC Diagram

Exploded parts diagram of the Engine hood SPC of a Wacker Neuson ET08, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000495892Not stocked
    engine hood×1
  • 21000015442Not stocked
    u-washer×1
  • 31000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×1
  • 41000085657
    $1.74
    COTTERPIN - 1000085657×2
  • 51000151230
    $17.02
    PIN - 1000151230×2
  • 61000097922
    $19.67
    rubber profile - 1000097922×2.1
  • 71000152576
    $114.63
    LOCK - 1000152576×1
  • 81000078889
    $62.87
    push button - 1000078889×1
  • 91000154195
    $4.98
    washer 44/30x12 - 1000154195×1
  • 101000013008Not stocked
    hex screw×2
  • 111000159052
    $37.97
    thread plate - 1000159052×1
  • 121000015448Not stocked
    washer×2
  • 131000092292
    $5.86
    washer A8,4-140HV A2C DIN125 - 1000092292×4
  • 141000184819
    $14.17
    EZ17 Key without cap - 1000184819×1
  • 151000261241
    $28.44
    joint - 1000261241Unknown×1
  • 151000261241
    $28.44
    joint - 1000261241Unknown×1
  • 151000548208Not stocked
    joint×1
  • 151000548208Not stocked
    joint×1
  • 161000280924
    $1.08
    PIN COTTER 3.2 X 20 - 1000280924×2
  • 171000068993Not stocked
    plug×4
