ET16

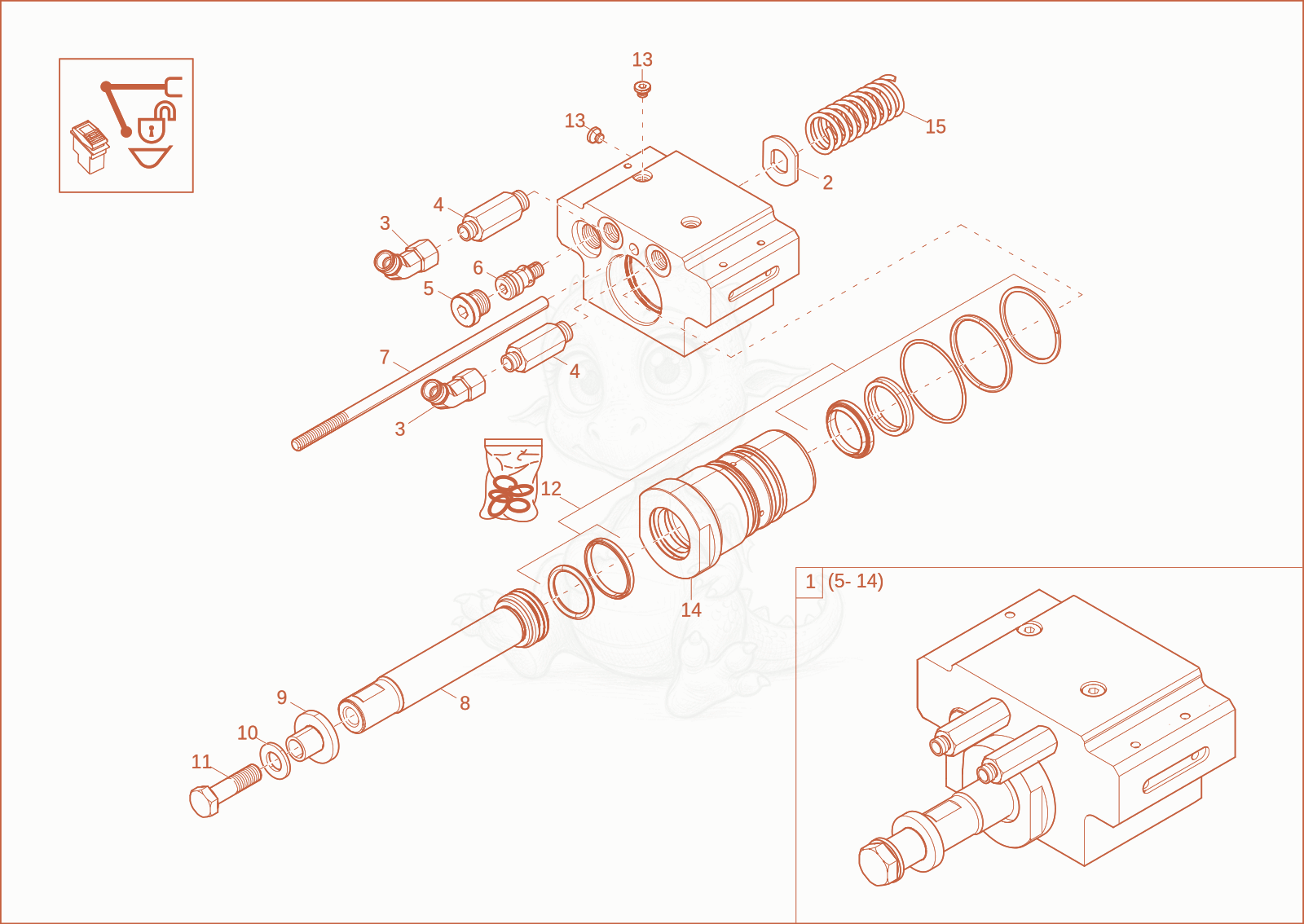

ET16 quick hitch (Option) Diagram
- Quickhitchunit 1000277789×1
- WASHER - 1000324398×1
- EV08LA3C-EO45° - 1000187907×2
- extension - 1000248875×1
- screw joint - 1000277803×1
- non return valve - 1000152314×1
- thread rod - 1000252256×1
- piston - 1000288456×1
- ring - 1000324400×1
- washer 10,5 A2C DIN125 - 1000015432×1
- 6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×1
- SEAL KIT - 1000235974×1
- LOCK SCREW - 1000082391×5
- guide bushing - 1000277853×1
- pressure spring - 1000277864×1
