ET16

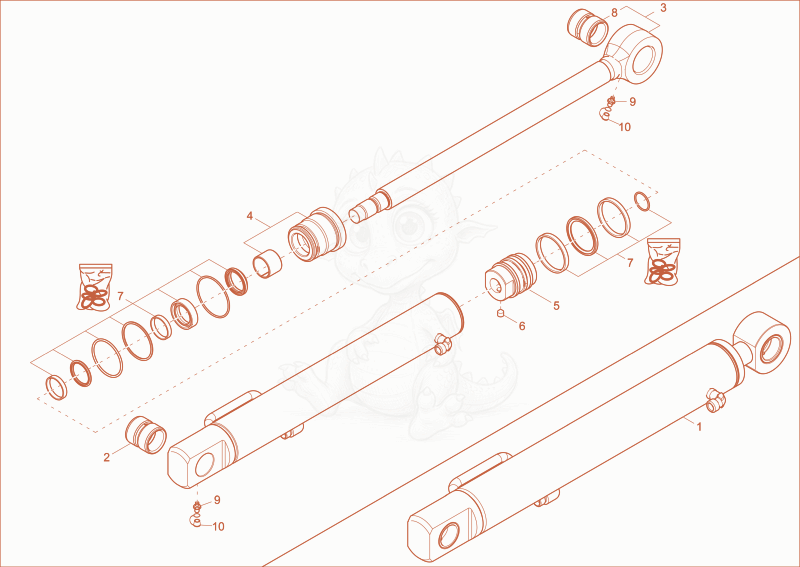

ET16 bucket cylinder Diagram

Exploded parts diagram of the bucket cylinder of a Wacker Neuson ET16, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000372618
    $814.74
    bucket cylinder E09-01/51; E13-01/51 WN - 1000372618×1
  • 21000165322
    $58.60
    STEEL BUSHING - 1000165322×1
  • 31000160911
    $492.22
    Pistonrod 1000160911×1
  • 41000364348Not stocked
    guide bushing×1
  • 51000159628
    $120.67
    PISTON - 1000159628×1
  • 61000128055
    $2.61
    thread pin - 1000128055×1
  • 71000364349Not stocked
    cylinder seal kit×1
  • 81000165323
    $41.39
    STEEL BUSHING - 1000165323×1
  • 91000015475Not stocked
    grease nipple×2
  • 101000015480Not stocked
    cap grease nipple×2
