ET16

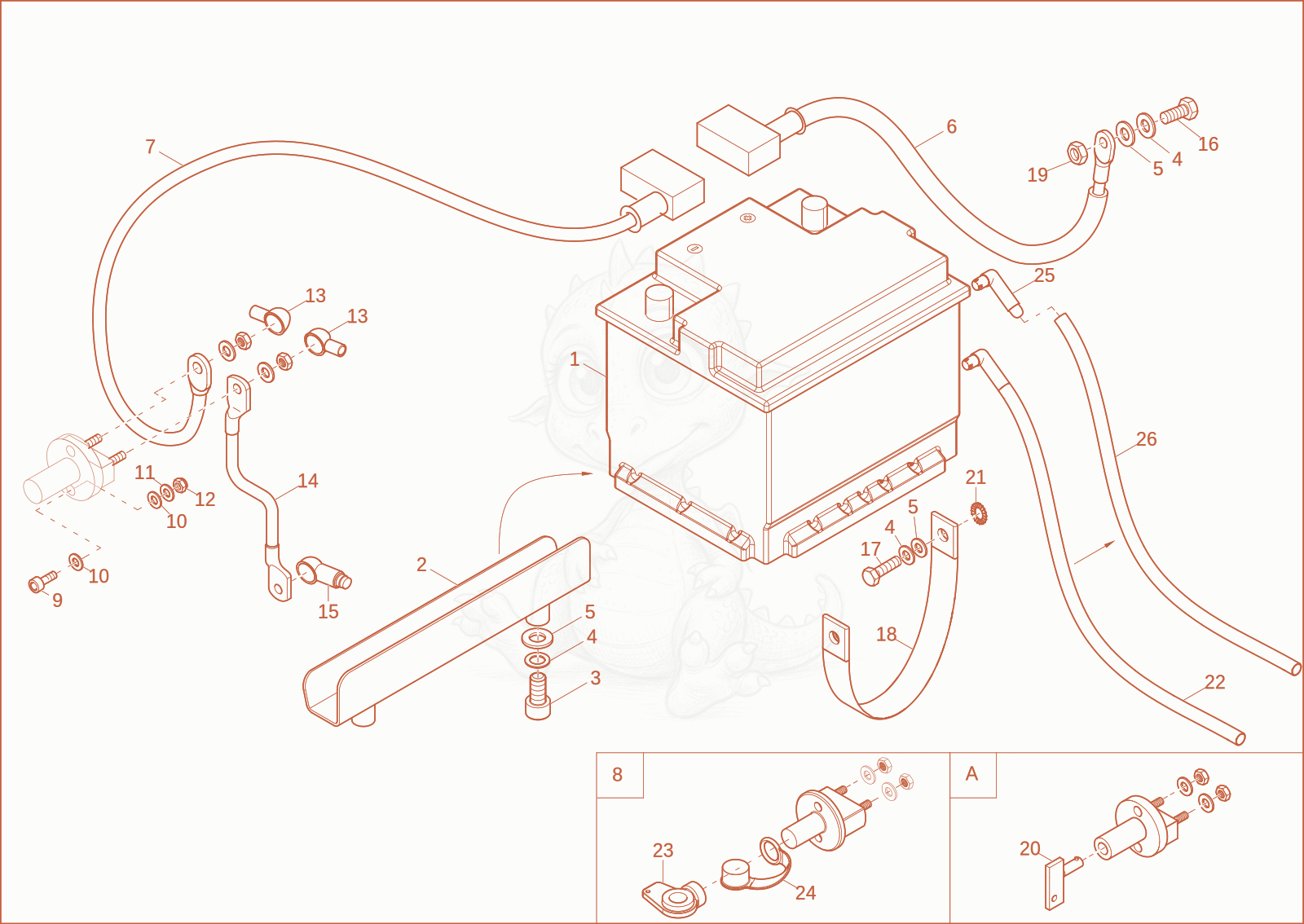

ET16 battery Diagram

Exploded parts diagram of the battery of a Wacker Neuson ET16, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000168891
    $183.30
    Battery 1000168891×1
  • 21000244855
    $33.68
    bracket battery - 1000244855×1
  • 31000082374
    $0.98
    cheese head screw M10x16 - 1000082374×2
  • 41000015438Not stocked
    lock washer×2
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 61000155751
    $64.34
    minus cable battery - 1000155751×1
  • 71000155740
    $98.74
    BATTERY CABLE - 1000155740×1
  • 81000254627
    $36.00
    BATTERY DISCONNECT SWITCH COMPLETE - 1000254627×1
  • 91000085457
    $0.13
    allen screw M6x25-8.8 A2C DIN912 - 1000085457×2
  • 101000015430Not stocked
    u-washer×4
  • 111000015436Not stocked
    lock washer×2
  • 121000015405Not stocked
    hexagon nut×2
  • 131000081683
    $6.71
    protecting cap starter cable - 1000081683×2
  • 141000155739
    $83.49
    PLUS CABLE - 1000155739×1
  • 151000063176Not stocked
    protecting cap×1
  • 161000085414
    $0.98
    hex screw - 1000085414×1
  • 171000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 181000069009Not stocked
    earth strap×1
  • 191000015407Not stocked
    hexagon nut×1
  • 201000084909
    $8.47
    cutoff switch key - 1000084909×1
  • 211000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×2
  • 221000360756Not stocked
    hose×1
  • 231000273710
    $13.79
    cutoff switch key - 1000273710×1
  • 241000273724
    $4.94
    Dustcap 1000273724×1
  • 251000554560Not stocked
    ELBOW DEGASSING HOSE×1
  • 261000556150Not stocked
    hose×0.5
