ET18-2

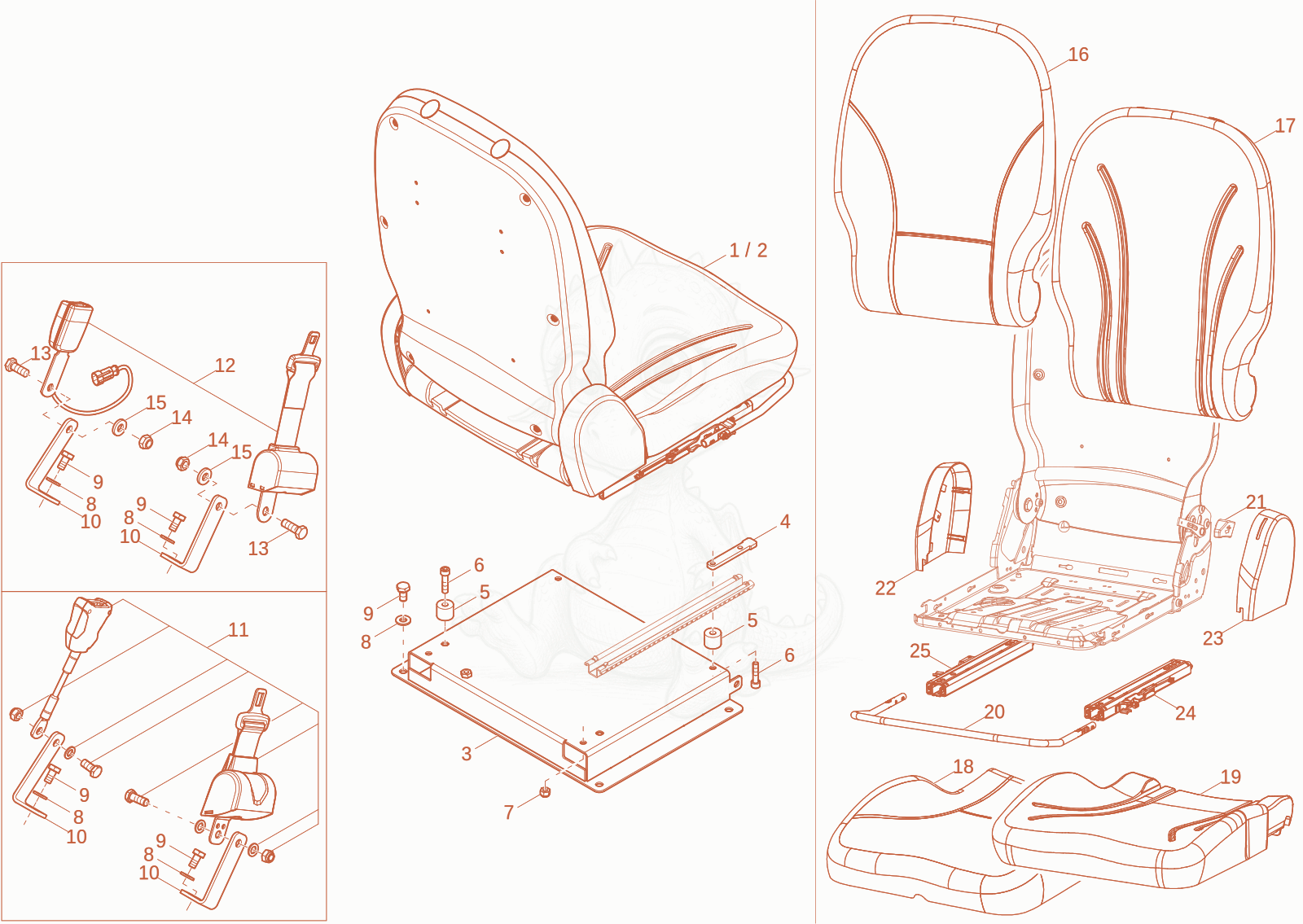

ET18-2 DRIVER SEAT Diagram

Exploded parts diagram of the DRIVER SEAT of a Wacker Neuson ET18-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000530911Not stocked
    drivers seat×1
  • 21000531108Not stocked
    drivers seat×1
  • 31000551762Not stocked
    console×1
  • 41000530913Not stocked
    thread plate×2
  • 51000505385Not stocked
    sleeve×4
  • 61000048250Not stocked
    cheese head screw×4
  • 71000357534Not stocked
    hexagon nut×2
  • 81000094974
    $0.70
    washer M10-DIN134 - 1000094974×6
  • 91000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×6
  • 101000551772Not stocked
    fastener angle×2
  • 111000541881Not stocked
    belt×1
  • 121000391421Not stocked
    safety belt×1
  • 131000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×2
  • 141000357535Not stocked
    hexagon nut×2
  • 151000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 161000566669Not stocked
    back cushion×1
  • 171000566667Not stocked
    back cushion×1
  • 181000566670Not stocked
    seat upholstery×1
  • 191000566668Not stocked
    seat upholstery×1
  • 201000566675Not stocked
    handle×1
  • 211000566676Not stocked
    handle×1
  • 221000537707Not stocked
    cover×1
  • 231000537706Not stocked
    cover×1
  • 241000537715Not stocked
    displacement rail×1
  • 251000537713Not stocked
    displacement rail×1
