ET18-2

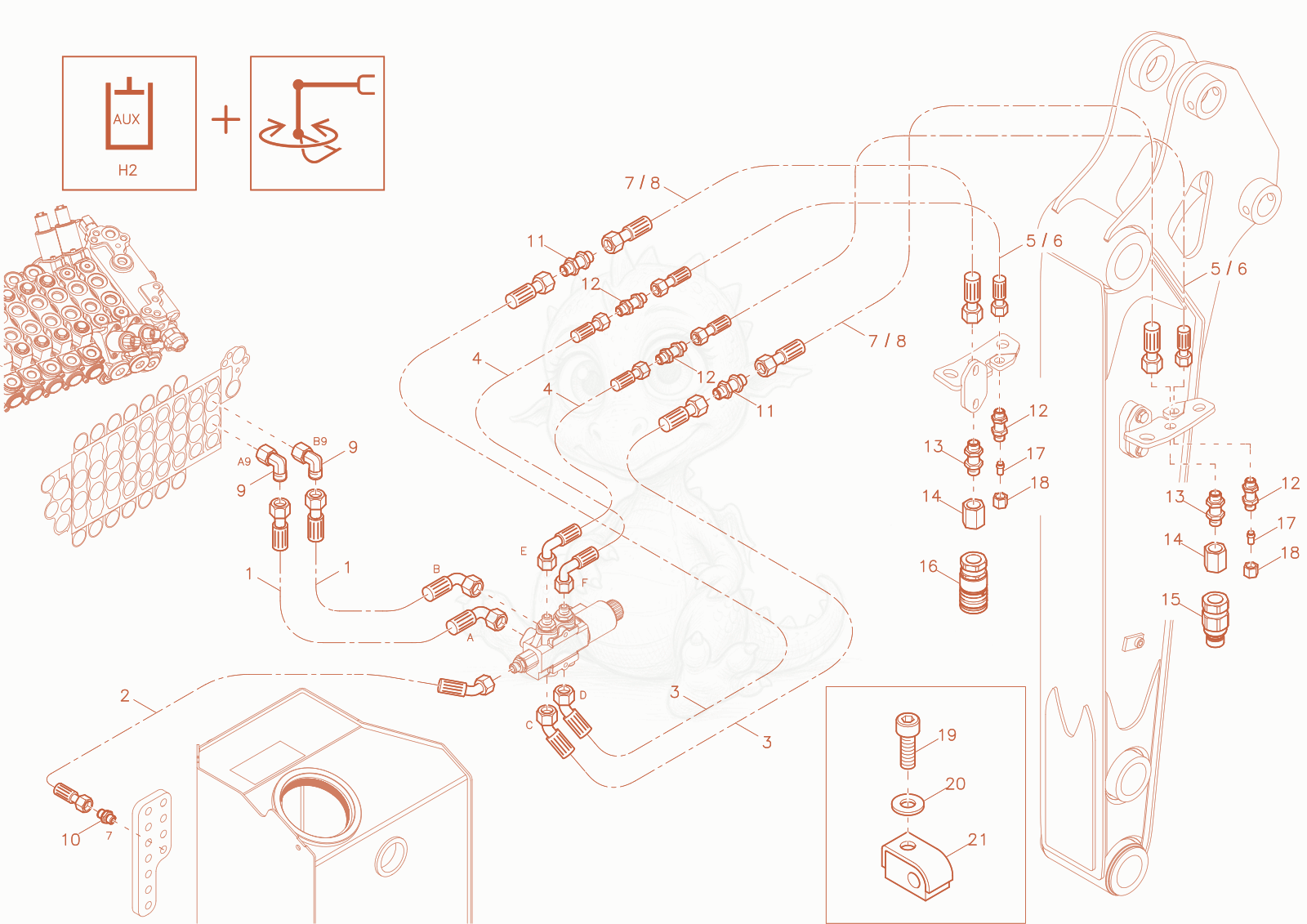

ET18-2 Pilot circuit Powertilt (Option) Diagram

Exploded parts diagram of the Pilot circuit Powertilt (Option) of a Wacker Neuson ET18-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000390335Not stocked
    Hose×2
  • 21000433380Not stocked
    Hose×1
  • 31000554748Not stocked
    Hose×2
  • 41000554746Not stocked
    Hose×2
  • 51000553643Not stocked
    Hose×2
  • 61000553647Not stocked
    Hose×2
  • 71000553479Not stocked
    Hose×2
  • 81000553645Not stocked
    Hose×2
  • 91000015510Not stocked
    screw joint×2
  • 101000015488Not stocked
    screw joint×1
  • 111000085076
    $4.95
    SV10-L - 1000085076×2
  • 121000085075
    $4.46
    SV08-L - 1000085075×4
  • 131000238586
    $18.41
    SCHOTTVERSCHRAUBUNG 10L 1/2" - 1000238586×2
  • 141000082961
    $15.76
    locking cap - 1000082961×2
  • 151000226218
    $48.42
    Coupling - 1000226218×1
  • 161000533819Not stocked
    plug coupling×1
  • 171000083043
    $1.31
    VKA08A3C - 1000083043×2
  • 181000015481Not stocked
    union nut×2
  • 191000019450Not stocked
    cheese head screw×2
  • 201000015448Not stocked
    washer×2
  • 211000575415Not stocked
    clamp×2
