ET20-2

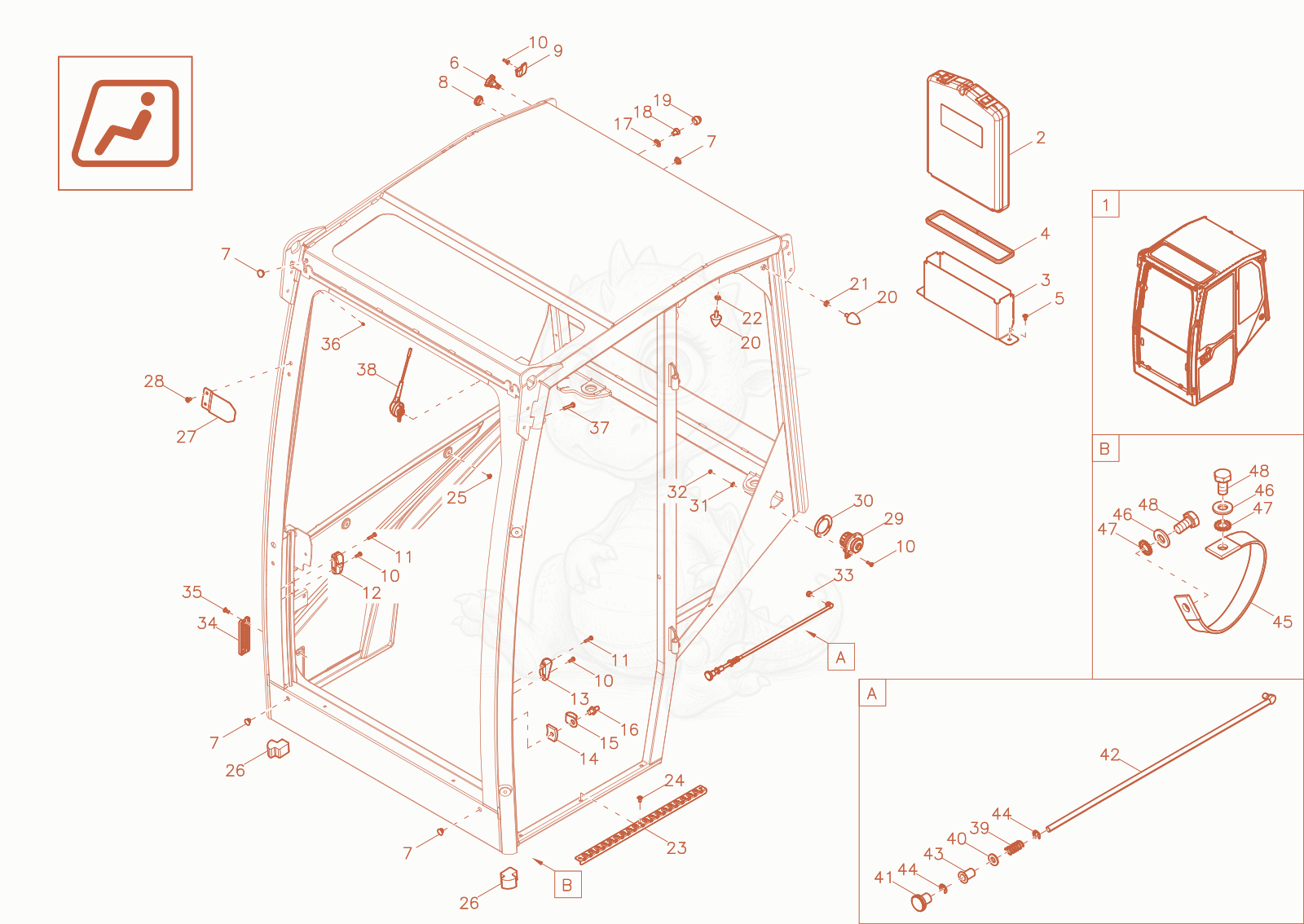

ET20-2 CABIN FRAME Diagram

Exploded parts diagram of the CABIN FRAME of a Wacker Neuson ET20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000522559Not stocked
    cabin×1
  • 21000081206
    $40.96
    documents box - 1000081206×1
  • 31000506499Not stocked
    bracket×1
  • 41000097928
    $4.57
    edge protection - 1000097928×1
  • 51000326519Not stocked
    flat head screw×2
  • 61000002902Not stocked
    socket×1
  • 71000075523
    $2.92
    blind plug - 1000075523×5
  • 81000265272
    $14.07
    rubber sleeve 10/18/22-3 closed - 1000265272×1
  • 91000124822
    $19.56
    cloth hook - 1000124822×1
  • 101000124798
    $2.61
    ovalhead screw - 1000124798×6
  • 111000015395Not stocked
    ovalhead screw×2
  • 121000003866Not stocked
    catch-rests×1
  • 131000003867Not stocked
    catch-rests×1
  • 141000068933Not stocked
    thread plate×1
  • 151000075584
    $3.16
    BRACKET - 1000075584×1
  • 161000073401
    $15.88
    catch bolt - 1000073401×1
  • 171000093520
    $2.25
    Washer (Polyamid) - 1000093520×1
  • 181000085410
    $0.98
    Hex Screw M10x12-DIN933 - 1000085410×1
  • 191000067799Not stocked
    cover cap×1
  • 201000241699
    $27.74
    rubber buffer - 1000241699×3
  • 211000013021Not stocked
    hexagon nut×1
  • 221000015379Not stocked
    hexagon nut×2
  • 231000390416
    $85.55
    strap - 1000390416×1
  • 241000443600Not stocked
    flat head screw×3
  • 251000561629Not stocked
    screw×4
  • 261000378355Not stocked
    lock plug×2
  • 271000457952Not stocked
    plate×1
  • 281000313423
    $5.29
    SCREW - 1000313423×2
  • 291000124796
    $122.14
    door fastener - 1000124796×1
  • 301000124797
    $11.44
    rubber disc - 1000124797×1
  • 311000094967
    $0.65
    Washer M5,3-DIN134 - 1000094967×3
  • 321000085587
    $0.03
    HEXAGON NUT - 1000085587×3
  • 331000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×1
  • 341000478491
    $1.79
    Grille - 1000478491×1
  • 351000313389
    $7.32
    SCREW - 1000313389×2
  • 361000152959
    $2.95
    thread pin - 1000152959×2
  • 371000568325Not stocked
    screw×2
  • 381000364750
    $83.93
    antenna - 1000364750×1
  • 391000251799
    $18.78
    pressure spring - 1000251799×1
  • 401000015448Not stocked
    washer×1
  • 411000367430Not stocked
    grooved nut×1
  • 421000522274Not stocked
    antilock rod×1
  • 431000251804
    $19.86
    mounting - 1000251804×1
  • 441000049454Not stocked
    lock washer×2
  • 451000064990Not stocked
    earth strap×1
  • 461000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 471000095354
    $0.03
    Lock washer DIN6797 A10,5 - 1000095354×2
  • 481000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
