ET20-2

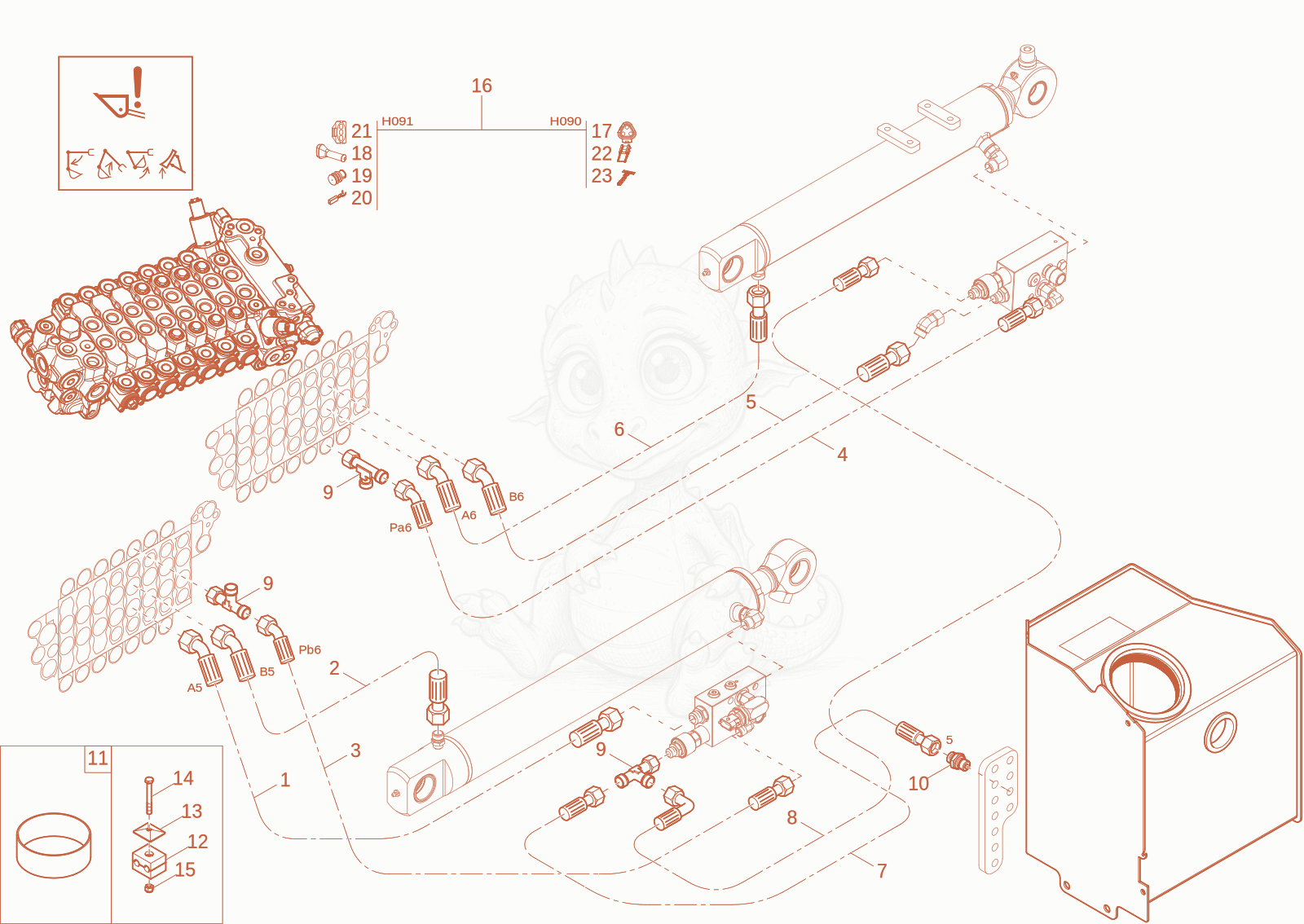

ET20-2 OVERLAOD SYSTEM (OPTION) Diagram

Exploded parts diagram of the OVERLAOD SYSTEM (OPTION) of a Wacker Neuson ET20-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000553417Not stocked
    Hose×1
  • 21000553415Not stocked
    Hose×1
  • 31000553433Not stocked
    Hose×1
  • 41000553439Not stocked
    Hose×1
  • 51000553414Not stocked
    Hose×1
  • 61000553388Not stocked
    Hose×1
  • 71000553434Not stocked
    Hose×1
  • 81000566086Not stocked
    Hose×1
  • 91000015515Not stocked
    screw joint×3
  • 101000015488Not stocked
    screw joint×1
  • 111000563777Not stocked
    lock strap×1
  • 121000168708
    $1.99
    clamp body - 1000168708×5
  • 131000015628Not stocked
    cover plate×5
  • 141000082238
    $0.73
    HEX SCREW - 1000082238×5
  • 151000357533Not stocked
    hexagon nut×5
  • 161000489000Not stocked
    wiring harness×1
  • 171000027394Not stocked
    pin housing×1
  • 181000126051
    $7.95
    PROTECTING CAP - 1000126051×1
  • 191000126126
    $1.84
    Seal - 1000126126×3
  • 201000126127
    $7.72
    BUSHING CONTACT - 1000126127×3
  • 211000168235
    $20.80
    bushing housing - 1000168235×1
  • 221000293439Not stocked
    clip×1
  • 231000362407Not stocked
    pin contact×3
