ET40

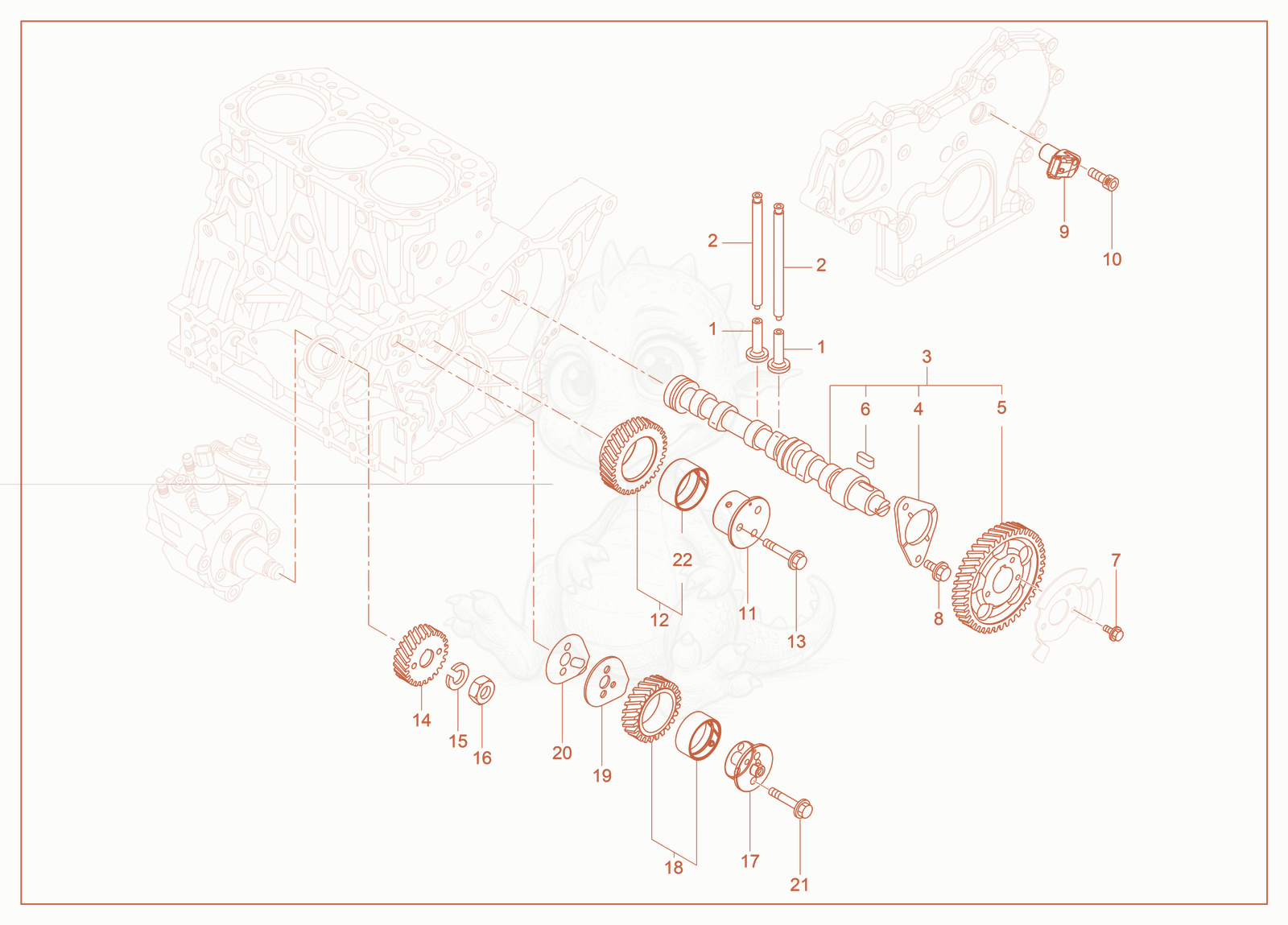

ET40(E33-01) Camshaft Diagram

Exploded parts diagram of the Camshaft of a Wacker Neuson ET40(E33-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000107911
    $20.08
    push rod - 1000107911×6
  • 21000099299
    $11.73
    PUSH ROD - 1000099299×6
  • 31000461793Not stocked
    Camshaft×1
  • 41000107533
    $38.13
    BEARING CAMSHAFT - 1000107533×1
  • 51000461887Not stocked
    Gear×1
  • 61000107537
    $2.10
    fitting key - 1000107537×1
  • 71000063363Not stocked
    Hex screw×3
  • 81000085175
    $1.82
    SCREW - 1000085175×2
  • 91000461798Not stocked
    RPM sensor×1
  • 101000539887Not stocked
    Screw×1
  • 111000461898Not stocked
    Idler gear×1
  • 121000461895
    $225.96
    gear - 1000461895×1
  • 131000107492
    $2.15
    SCREW - 1000107492×3
  • 141000461894Not stocked
    Gear×1
  • 151000125809
    $8.17
    SPRING WASHER - 1000125809×1
  • 161000125810
    $4.26
    NUT - 1000125810×1
  • 171000461977Not stocked
    Idler gear×1
  • 181000461982
    $166.66
    gear - 1000461982×1
  • 191000461984
    $5.35
    PLATE - 1000461984×1
  • 201000455629
    $6.44
    Gasket - 1000455629×1
  • 211000085180
    $2.80
    HEX SCREW - 1000085180×2
  • 225200020010Not stocked
    Bushing×1
