ET40

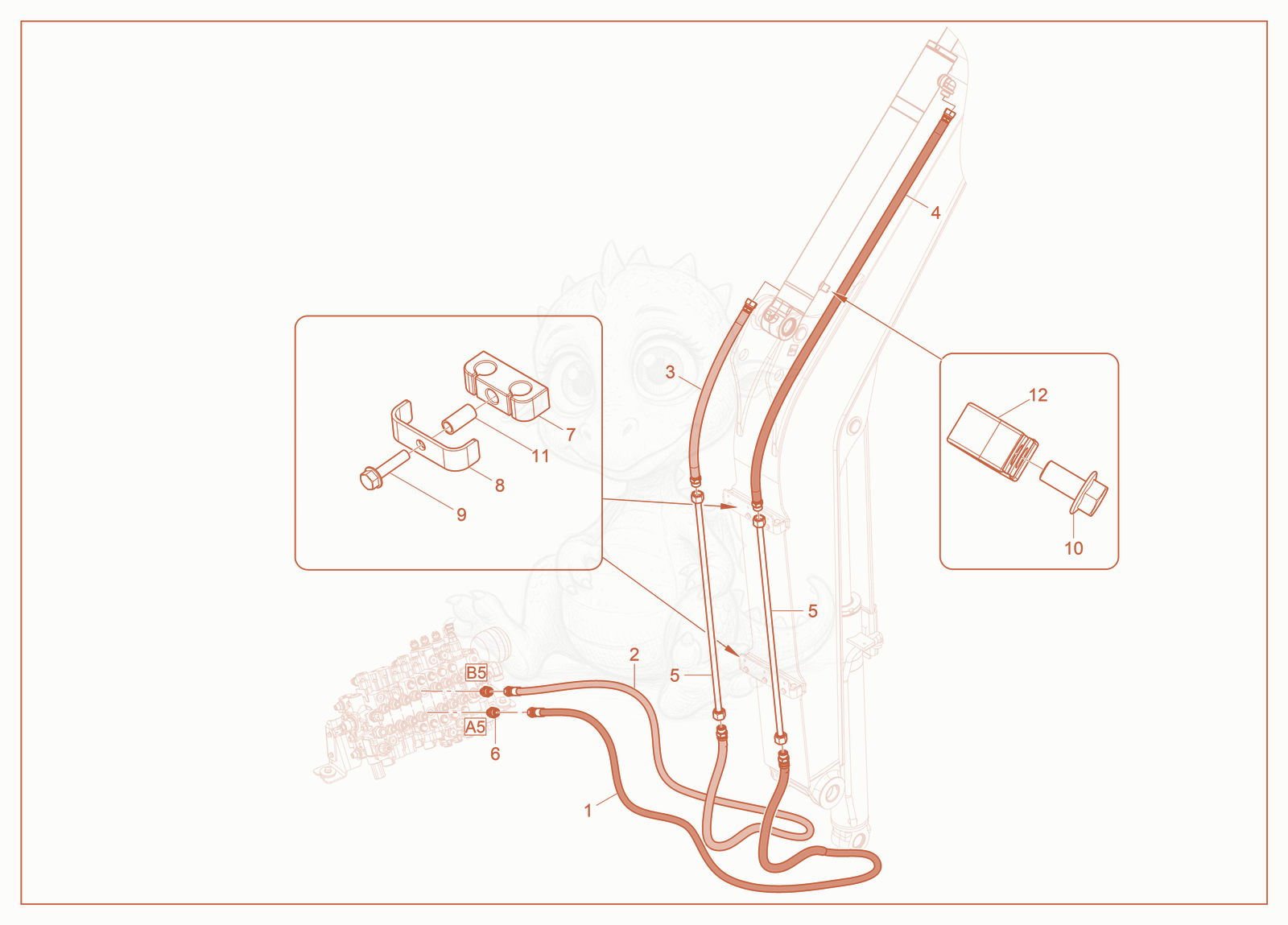

ET40(E33-01) Dipper Arm Operation Diagram

Exploded parts diagram of the Dipper Arm Operation of a Wacker Neuson ET40(E33-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000557417Not stocked
    Hose assembly×1
  • 21000557416Not stocked
    Hose assembly×1
  • 31000524750Not stocked
    Hose assembly×1
  • 41000524751Not stocked
    Hose assembly×1
  • 51000522506Not stocked
    Pipe line×2
  • 61000528072Not stocked
    Fitting×2
  • 71000523838Not stocked
    Clamp×2
  • 81000523041Not stocked
    Clamp×2
  • 91000548751Not stocked
    Bolt×2
  • 105100077919Not stocked
    Hexagonal flange head screw×1
  • 111000523903Not stocked
    Bushing×2
  • 121000449055
    $1.39
    P-CLIP 1-1/4 VINYL COAT - 1000449055×1
