ET40

ET40(E33-01) Arm Overload System Diagram

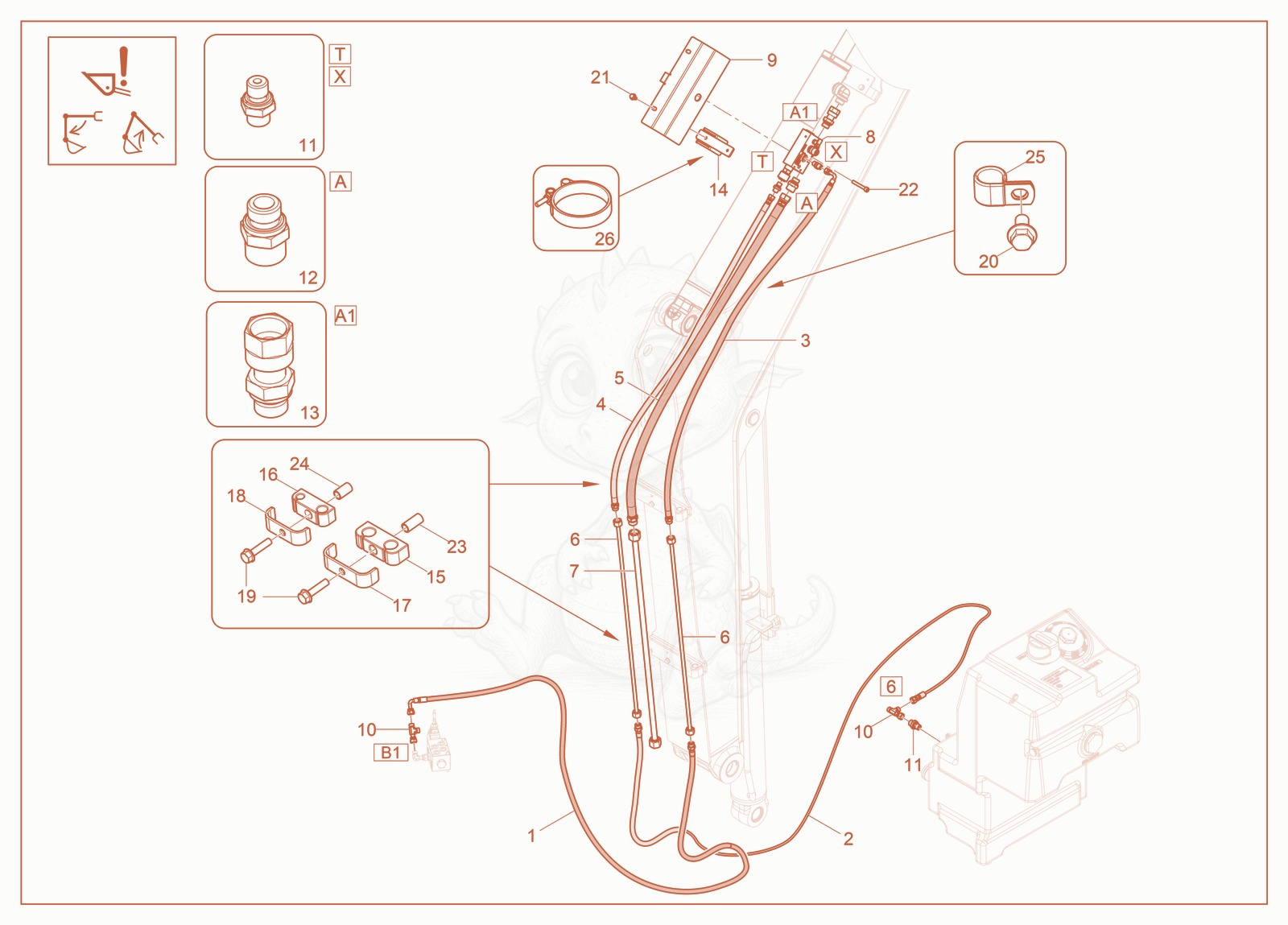

Exploded parts diagram of the Arm Overload System of a Wacker Neuson ET40(E33-01), with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000567830Not stocked
    Hose assembly×1
  • 21000566604Not stocked
    Hose assembly×1
  • 31000565902Not stocked
    Hose assembly×1
  • 41000565903Not stocked
    Hose assembly×1
  • 51000524762Not stocked
    Hose assembly×1
  • 61000522572Not stocked
    Pipe line×2
  • 71000522506Not stocked
    Pipe line×1
  • 81000563350Not stocked
    Overload valve×1
  • 91000565900Not stocked
    Guard×1
  • 101000522022Not stocked
    T Fitting×2
  • 111000522021Not stocked
    Fitting×3
  • 121000522031Not stocked
    Fitting×1
  • 131000522030Not stocked
    Fitting×1
  • 141000539017Not stocked
    Band clamp×2
  • 151000523838Not stocked
    Clamp×2
  • 161000523916Not stocked
    Clamp×4
  • 171000523041Not stocked
    Clamp×2
  • 181000523040Not stocked
    Clamp×4
  • 191000548751Not stocked
    Bolt×6
  • 205100077919Not stocked
    Hexagonal flange head screw×1
  • 215100071578
    $0.94
    SCREW-M8x16-HEX.FLG.HD-8.8-MAG565 - 5100071578×2
  • 221000556906Not stocked
    Flange Bolt×1
  • 231000523903Not stocked
    Bushing×2
  • 241000523917Not stocked
    Bushing×4
  • 251000369360
    $1.56
    P-CLIP 7/8 VINYL COAT - 1000369360×1
  • 261000238318
    $26.71
    Pipe Clamp - 1000238318×2
