EZ26-2

EZ26-2 DIPPER ARM Diagram

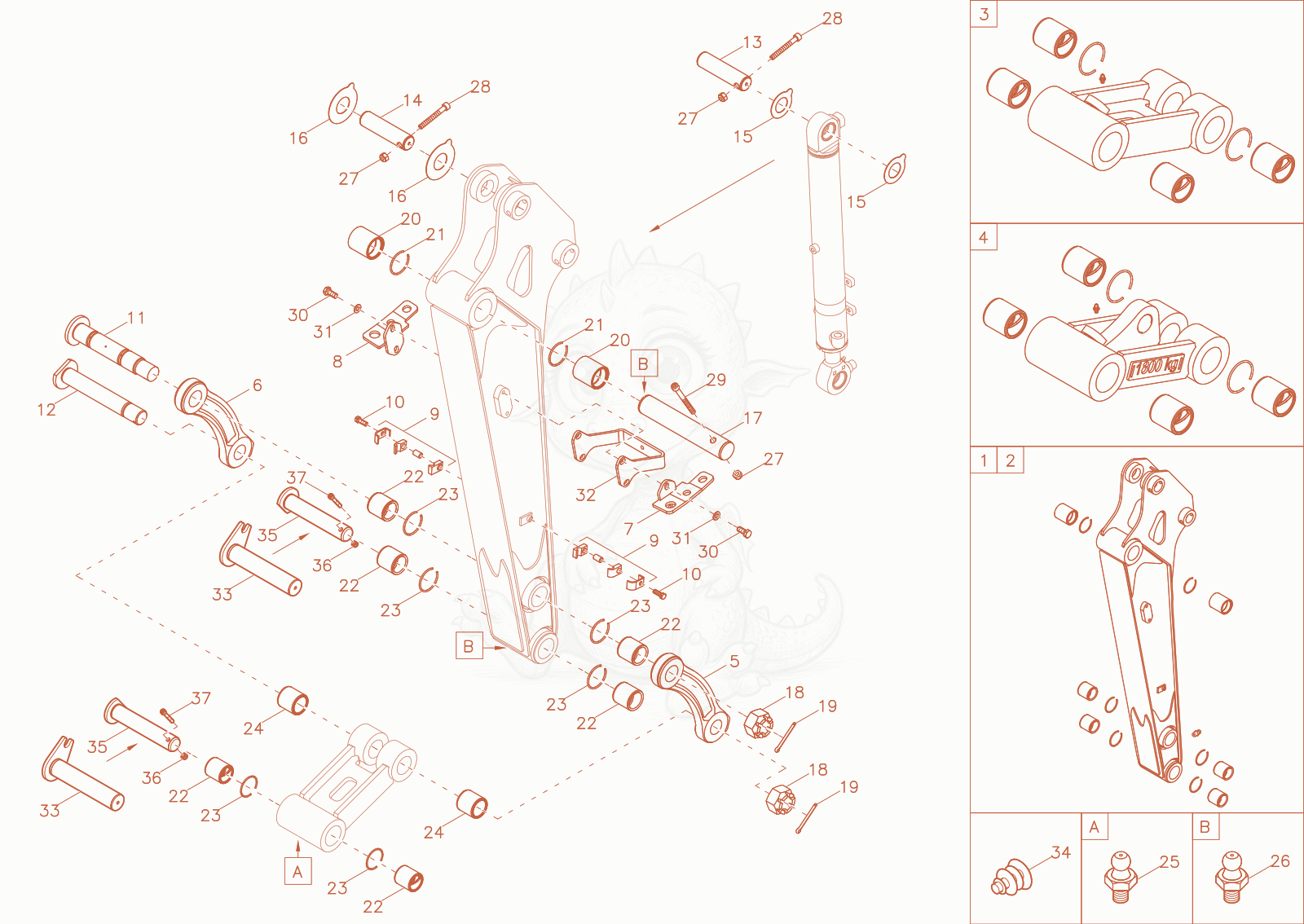

Exploded parts diagram of the DIPPER ARM of a Wacker Neuson EZ26-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000510965
    $1,938.87
    DIPPER ARM - 1000510965×1
  • 21000512206
    $1,938.87
    PRE-ASSEMBLED DIPPER ARM - 1000512206×1
  • 31000510972
    $618.89
    PRE-ASSEMBLED CONNECTING LINK - 1000510972×1
  • 41000510973
    $671.78
    PRE-ASSEMBLED CONNECTING LINK - 1000510973×1
  • 51000459019Not stocked
    pivot plate×1
  • 61000459020Not stocked
    pivot plate×1
  • 71000487758Not stocked
    bracket hose×1
  • 81000487759Not stocked
    bracket hose×1
  • 91000368411Not stocked
    pipe clamp×2
  • 101000015343Not stocked
    hex screw×2
  • 111000500028
    $114.13
    pin - 1000500028×1
  • 121000494580
    $101.89
    pin - 1000494580×1
  • 131000505741
    $47.52
    pin - 1000505741×1
  • 141000505742
    $55.26
    pin - 1000505742×1
  • 151000494564
    $3.26
    shim - 1000494564×2
  • 161000370167Not stocked
    shim×2
  • 171000466378
    $91.71
    pin - 1000466378×1
  • 181000015417
    $12.94
    DIN935-M36-8-A2C - 1000015417×2
  • 191000280889
    $1.91
    DINENISO1234-6,3x63-A2C - 1000280889×2
  • 201000019754Not stocked
    steel bushing×2
  • 211000095015
    $1.03
    lock ring - 1000095015×2
  • 221000015608Not stocked
    steel bushing×6
  • 231000021601Not stocked
    lock ring×4
  • 241000486647Not stocked
    steel bushing×2
  • 251000015475Not stocked
    grease nipple×1
  • 261000015476Not stocked
    grease nipple×2
  • 271000357535Not stocked
    hexagon nut×2
  • 281000451100Not stocked
    screw×2
  • 291000085471
    $1.56
    cheese head screw - 1000085471×1
  • 301000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×4
  • 311000094974
    $0.70
    washer M10-DIN134 - 1000094974×4
  • 321000509869
    $109.68
    plate - 1000509869×1
  • 331000466818Not stocked
    pin×2
  • 341000288011
    $1.09
    plug M8 - 1000288011×6
  • 351000296761
    $52.12
    Pin 1000296761×2
  • 361000357534Not stocked
    hexagon nut×2
  • 371000085464
    $1.53
    cheese head screw - 1000085464×2
