EZ26-2

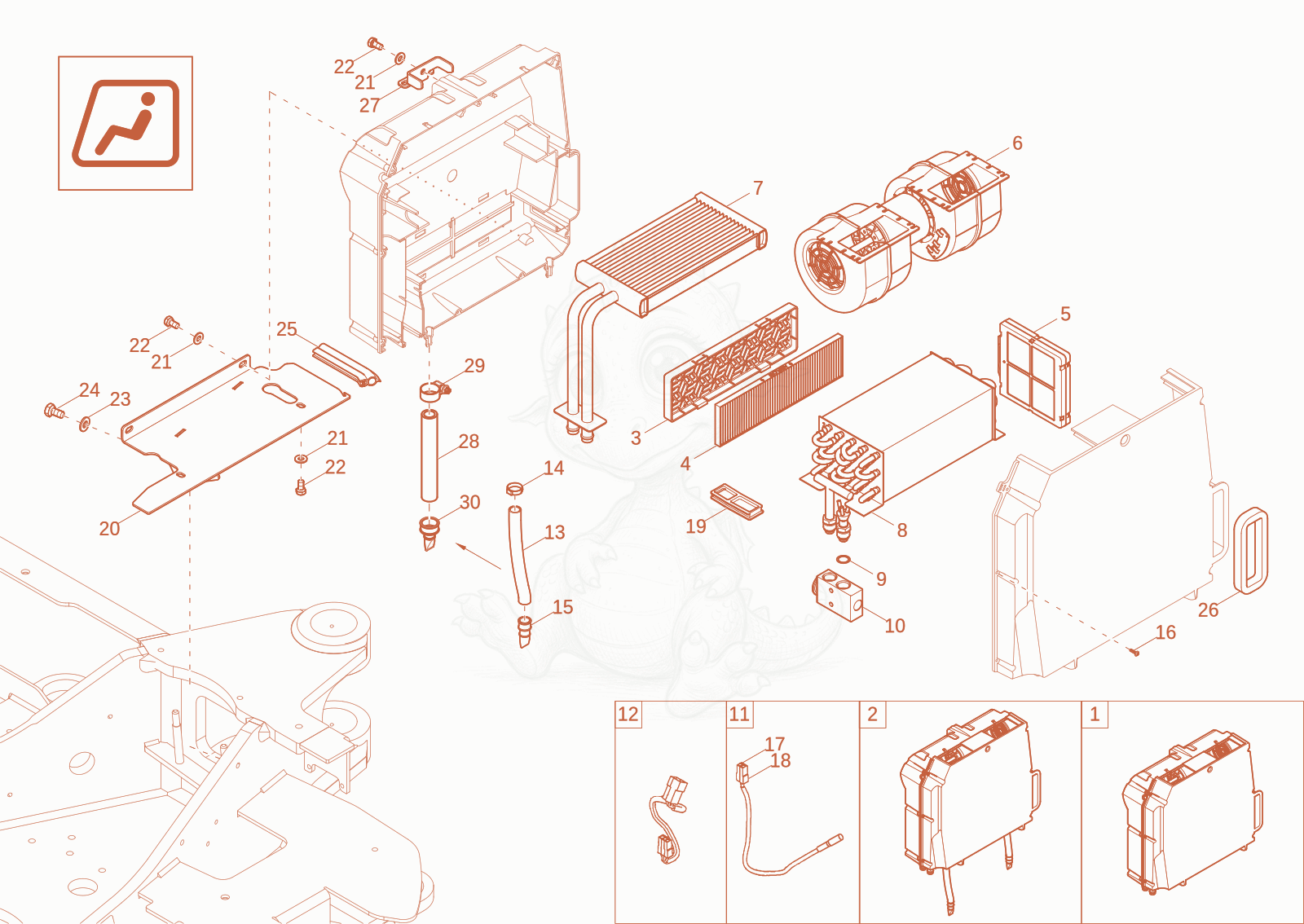

EZ26-2 HEATING, AIR-CONDITIONING PLANT (Option) Diagram

Exploded parts diagram of the HEATING, AIR-CONDITIONING PLANT (Option) of a Wacker Neuson EZ26-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000552000Not stocked
    heater×1
  • 21000549826Not stocked
    air condition system×1
  • 31000553095Not stocked
    screen×1
  • 41000510738Not stocked
    filter×1
  • 51000552588Not stocked
    Fresh Filter a AIR×1
  • 61000510741
    $525.24
    Blower - 1000510741×1
  • 71000510781Not stocked
    heating×1
  • 81000510783
    $612.81
    evaporator - 1000510783×1
  • 91000187502
    $2.56
    SEAL RING - 1000187502×2
  • 101000510785Not stocked
    expansion valve×1
  • 111000510814
    $80.84
    Sensor - 1000510814×1
  • 121000510786Not stocked
    cable×1
  • 131000510787Not stocked
    pipe line×2
  • 141000510815Not stocked
    hose clamp×2
  • 151000510827Not stocked
    pipe line×2
  • 161000510821
    $7.90
    Bolt - 1000510821×9
  • 171000510825Not stocked
    plug sleeve×2
  • 181000510826
    $8.94
    Bushing - 1000510826×2
  • 191000510733
    $39.40
    Seal - 1000510733×1
  • 201000507240Not stocked
    console×1
  • 211000015448Not stocked
    washer×5
  • 221000019136Not stocked
    hex screw×5
  • 231000094974
    $0.70
    washer M10-DIN134 - 1000094974×2
  • 241000085411
    $1.37
    hex screw M10x20-8.8 A2C DIN933 - 1000085411×2
  • 251000017845Not stocked
    rubber profile×0.2
  • 261000466366
    $8.05
    SEALING - 1000466366×1
  • 271000507271
    $58.36
    Bracket - 1000507271×1
  • 281000560472Not stocked
    hose×0.3
  • 291000560286Not stocked
    hose clamp×2
  • 301000556406Not stocked
    pipe line×2
