EZ26-2 HARNESS WIRING CHASSIS Diagram

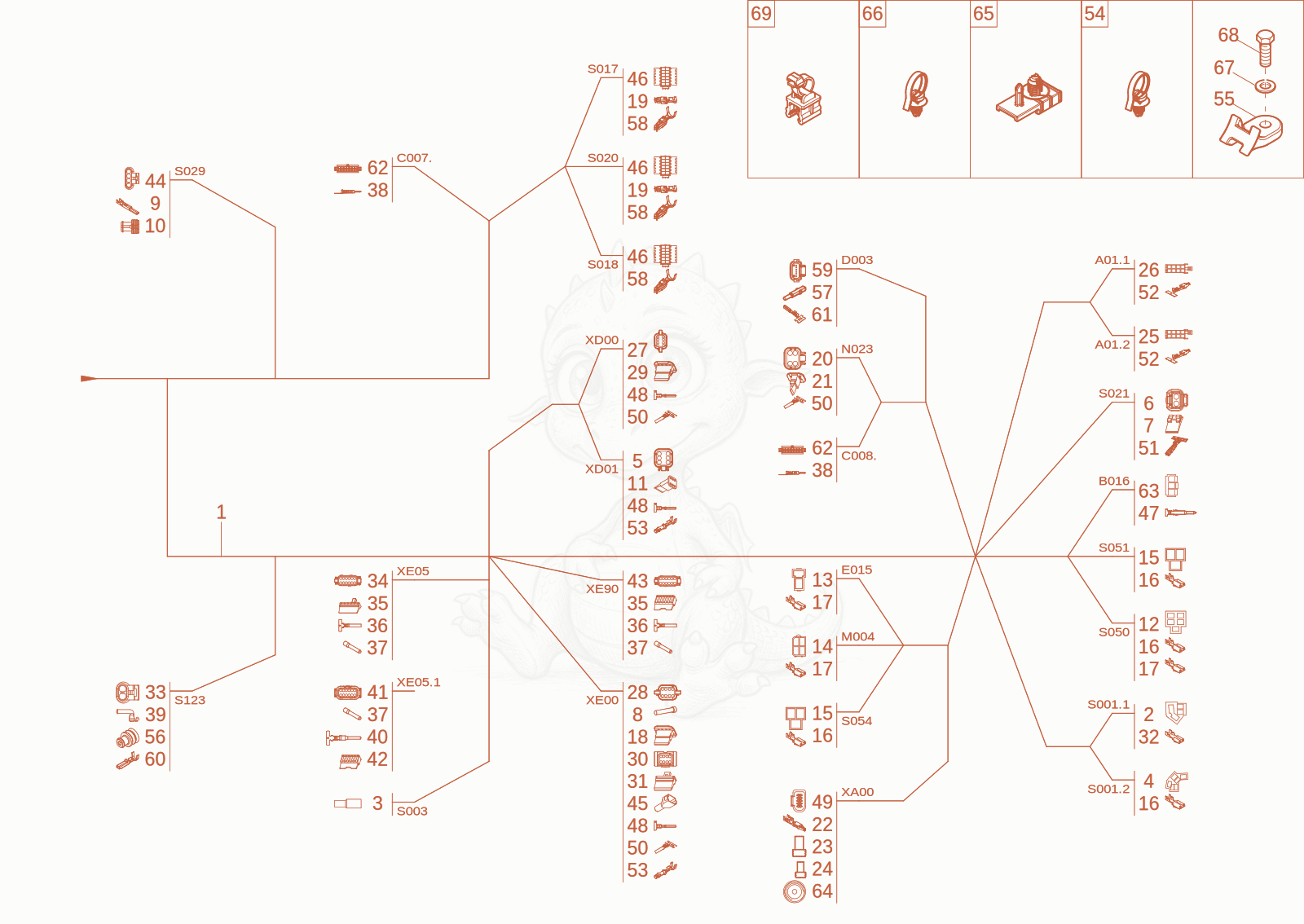

Exploded parts diagram of the HARNESS WIRING CHASSIS of a Wacker Neuson EZ26-2, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000509379Not stocked
    wiring harness×1
  • 21000027368Not stocked
    central plug×1
  • 31000027384Not stocked
    round socket sleeve×1
  • 41000027386
    $6.47
    PLUG - 1000027386×1
  • 51000027431Not stocked
    bushing housing×1
  • 61000027445Not stocked
    pin housing×1
  • 71000027449Not stocked
    housing×1
  • 81000030446Not stocked
    plug×8
  • 91000051990Not stocked
    bushing contact×4
  • 101000052672Not stocked
    seal×4
  • 111000085032
    $1.15
    plug locking - 1000085032×1
  • 121000086664
    $4.92
    plug sleeve housing - 1000086664×1
  • 131000095323
    $3.39
    plug sleeve housing - 1000095323×1
  • 141000095325
    $2.11
    plug sleeve housing - 1000095325×1
  • 151000095339
    $4.61
    plug sleeve housing - 1000095339×2
  • 161000095370
    $0.66
    plug sleeve - 1000095370×13
  • 171000095371Not stocked
    plug sleeve×10
  • 181000100723
    $2.77
    wedge - 1000100723×1
  • 191000103753
    $3.01
    Timer Contact - 1000103753×7
  • 201000104286
    $11.39
    bushing housing - 1000104286×1
  • 211000104287
    $0.99
    wedge - 1000104287×1
  • 221000104732
    $3.06
    CONTACT - 1000104732×9
  • 231000104738
    $1.51
    seal - 1000104738×9
  • 241000104740
    $1.41
    lock plug - 1000104740×1
  • 251000104902
    $18.69
    CONTACT-HOUSING - 1000104902×1
  • 261000104903
    $4.90
    CONTACT-HOUSING - 1000104903×1
  • 271000105112
    $16.59
    bushing housing - 1000105112×1
  • 281000105113
    $14.50
    bushing housing - 1000105113×1
  • 291000105114
    $1.31
    wedge - 1000105114×1
  • 301000105117
    $53.23
    Pin housing - 1000105117×1
  • 311000105118
    $1.19
    wedge - 1000105118×1
  • 321000107750
    $5.41
    plug sleeve - 1000107750×4
  • 331000110449
    $2.46
    plug bushing - 1000110449×1
  • 341000148271
    $30.88
    Pin housing - 1000148271×1
  • 351000148272
    $2.17
    Pin housing - 1000148272×2
  • 361000148274
    $1.84
    bushing contact - 1000148274×17
  • 371000161431
    $0.66
    Plug - 1000161431×15
  • 381000166644
    $1.45
    Pin contact - 1000166644×11
  • 391000228723
    $10.08
    RUBBER CAP - 1000228723×1
  • 401000236298
    $2.30
    pin contact - 1000236298×4
  • 411000240116
    $39.91
    Pin housing - 1000240116×1
  • 421000240117
    $4.36
    locking pin - 1000240117×1
  • 431000254182
    $29.32
    bushing housing - 1000254182×1
  • 441000258052
    $3.23
    plug bushing - 1000258052×1
  • 451000284442
    $3.65
    protecting cap - 1000284442×1
  • 461000103949
    $5.74
    bushing housing - 1000103949×3
  • 471000306806Not stocked
    pin contact×3
  • 481000309284Not stocked
    bushing contact×11
  • 491000347631Not stocked
    housing×1
  • 501000359612Not stocked
    plug connection×12
  • 511000362407Not stocked
    pin contact×2
  • 521000362527Not stocked
    bushing contact×7
  • 531000365064Not stocked
    round socket sleeve×3
  • 541000375997Not stocked
    fixing bracket×24
  • 551000378385Not stocked
    sockets×8
  • 561000392349Not stocked
    seal×2
  • 571000395384Not stocked
    blind plug×2
  • 581000432365Not stocked
    timer contact×12
  • 591000437205
    $4.36
    plug - 1000437205×1
  • 601000443428
    $0.99
    Buchsenkontakt - 1000443428×2
  • 611000445655
    $1.00
    bushing contact - 1000445655×4
  • 621000483805
    $5.40
    Connector - 1000483805×2
  • 631000485328
    $1.46
    Connector - 1000485328×1
  • 641000498682Not stocked
    rubber sleeve×1
  • 651000293439Not stocked
    clip×2
  • 661000090083
    $2.13
    Cable strap T80IFT6 - 1000090083×5
  • 671000015448Not stocked
    washer×8
  • 681000013008Not stocked
    hex screw×8
  • 691000291362
    $6.38
    clip - 1000291362×1
