EZ80

EZ80 DIPPER ARM OPERATION Diagram

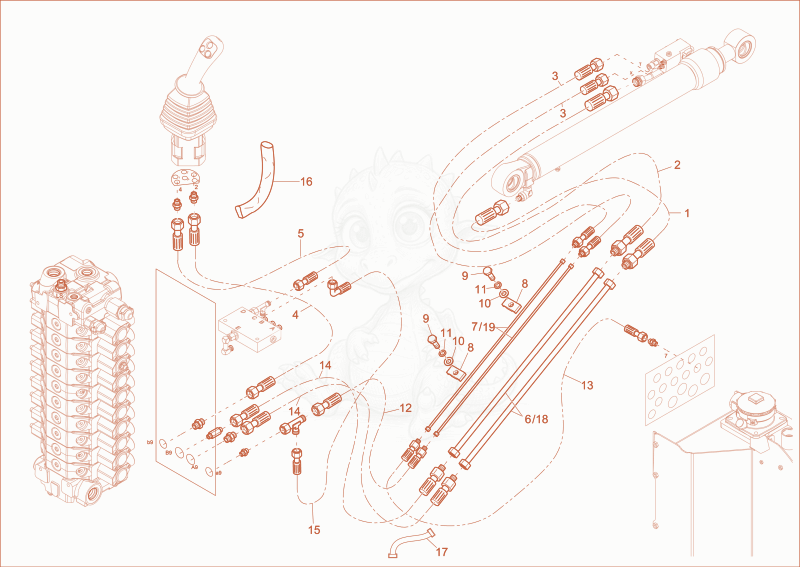

Exploded parts diagram of the DIPPER ARM OPERATION of a Wacker Neuson EZ80, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000352967
    $104.59
    SLHYDR 787T20 PP25 0 PE25 0 L700,0S0 - 1000352967×1
  • 21000349311
    $131.76
    SLHYDR 787T20 PP25 0 PE25 0 L1600 S0 - 1000349311×1
  • 31000348500Not stocked
    Hose×2
  • 41000324102Not stocked
    Hose×1
  • 51000076395
    $35.63
    SLHYDR 1SCP6,0PN8 0 PN8 0 L2450 0 - 1000076395×1
  • 61000328561Not stocked
    pipe line×2
  • 71000308889Not stocked
    pipe line×2
  • 81000307957
    $13.72
    pipe clamp - 1000307957×2
  • 91000015348Not stocked
    hex screw×2
  • 101000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×2
  • 111000015438Not stocked
    lock washer×2
  • 121000385243Not stocked
    Hose×1
  • 131000385249Not stocked
    Hose×1
  • 141000385206Not stocked
    Hose×2
  • 151000076313
    $58.94
    SLHYDR 1SCP6,0PN8 0 PN8 90 L1200 0 - 1000076313×1
  • 161000277618
    $22.41
    protecting hose black - 1000277618×1
  • 171000347080Not stocked
    lock strap×2
  • 181000362444
    $60.92
    pipe line - 1000362444×2
  • 191000362445
    $133.67
    pipe line - 1000362445×2
