EZ80

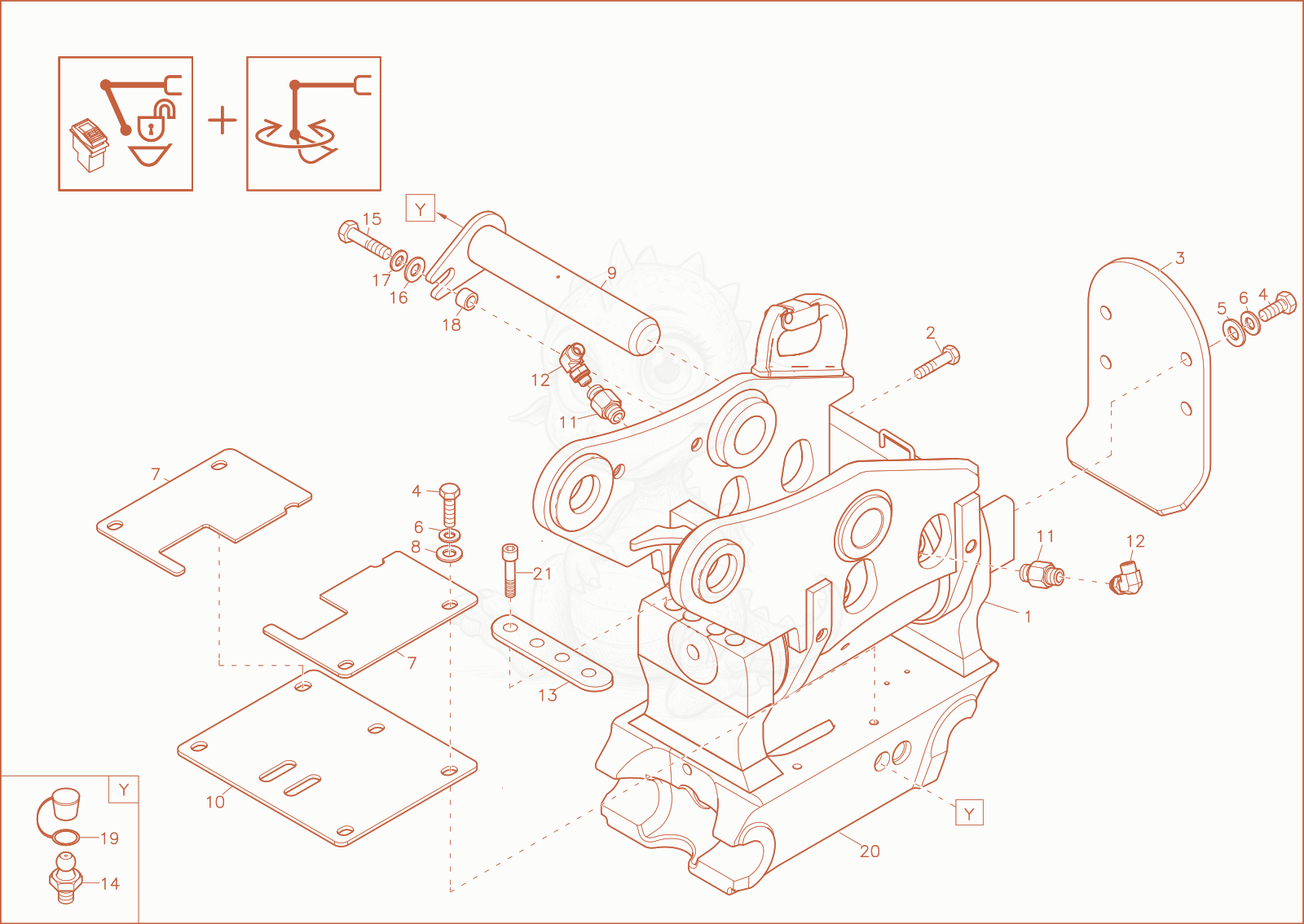

EZ80 Easy Lock Powertlit (Option) Diagram

Exploded parts diagram of the Easy Lock Powertlit (Option) of a Wacker Neuson EZ80, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000352366
    $5,247.29
    POWERTILT - 1000352366×1
  • 31000246433
    $178.48
    Protectionplate 1000246433×1
  • 41000015345
    $1.55
    Hex Screw M10x25-8.8 A2K-DIN933 - 1000015345×9
  • 51000015432
    $0.05
    washer 10,5 A2C DIN125 - 1000015432×4
  • 61000015438Not stocked
    lock washer×9
  • 71000279952
    $41.20
    COVER - 1000279952×1
  • 81000092303
    $0.86
    Washer 10,5 St A2C - 1000092303×5
  • 91000396308
    $195.48
    PIN - 1000396308×2
  • 101000278338
    $110.29
    rubber protection - 1000278338×1
  • 111000179195
    $32.62
    extension - 1000179195×2
  • 121000060905
    $24.97
    WEE10LROMDA3C - 1000060905×2
  • 131000327872
    $50.67
    plate - 1000327872×1
  • 141000015476Not stocked
    grease nipple×4
  • 151000015381Not stocked
    hex screw×2
  • 161000085613
    $0.10
    washer - 1000085613×2
  • 171000082609
    $0.73
    lock washer - 1000082609×2
  • 181000154661
    $3.75
    WASHER - 1000154661×2
  • 191000015480Not stocked
    cap grease nipple×4
  • 201000344658Not stocked
    adapter plate×10
  • 211000328091
    $15.10
    SCREW - 1000328091×4
