EZ80

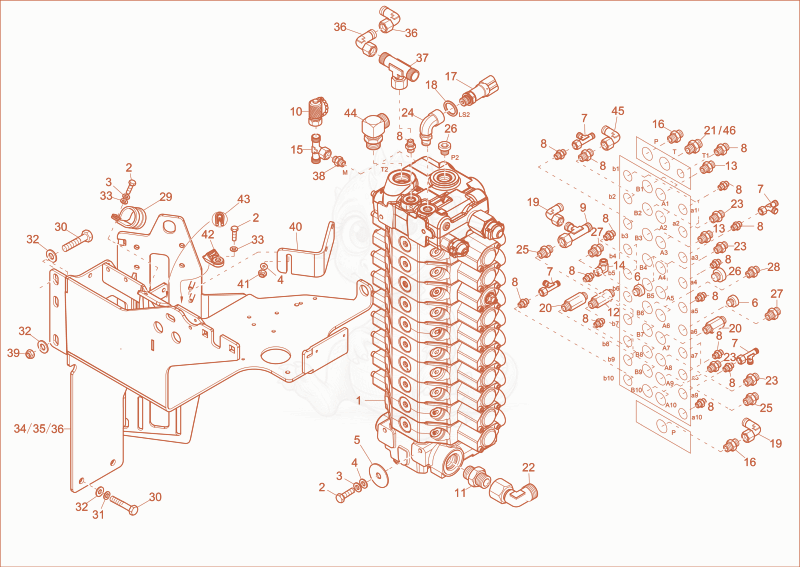

EZ80 control block 1 Diagram

Exploded parts diagram of the control block 1 of a Wacker Neuson EZ80, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 11000513152Not stocked
    control block×1
  • 21000013008Not stocked
    hex screw×6
  • 31000015437Not stocked
    lock washer×6
  • 41000013027Not stocked
    washer×6
  • 51000156073
    $6.56
    rubber shock absorber - 1000156073×4
  • 61000022438Not stocked
    screw joint×2
  • 71000015515Not stocked
    screw joint×4
  • 81000015488Not stocked
    screw joint×20
  • 91000021216Not stocked
    screw joint×1
  • 101000263904
    $36.85
    MINIMESS POINT - 1000263904×1
  • 111000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×1
  • 121000334820Not stocked
    screw joint×1
  • 131000015494Not stocked
    screw joint×4
  • 141000187907
    $30.16
    EV08LA3C-EO45° - 1000187907×1
  • 151000085057
    $13.12
    ET10LOMDA3C - 1000085057×1
  • 161000020908Not stocked
    screw joint×2
  • 171000312658Not stocked
    pressure sensor×1
  • 181000124948
    $12.46
    screw seal - 1000124948×1
  • 191000085093
    $17.22
    EW20SOMDA3C - 1000085093×2
  • 201000334814Not stocked
    screw joint×2
  • 211000085096
    $9.05
    GE22LREDOMDA3C - 1000085096×1
  • 221000085091
    $31.25
    EW28LOMDA3C - 1000085091×1
  • 231000015497Not stocked
    screw joint×9
  • 241000251624
    $35.82
    WEE1/4"-1/4" - 1000251624×1
  • 251000015549Not stocked
    screw joint×2
  • 261000082786
    $3.66
    VSTI1/2EDA3C - 1000082786×3
  • 271000015488Not stocked
    screw joint×2
  • 281000015497Not stocked
    screw joint×2
  • 291000062589Not stocked
    pipe clamp×2
  • 301000085412
    $0.87
    6-Point screw M10x40-8.8 A2C-DIN933 - 1000085412×6
  • 311000015438Not stocked
    lock washer×2
  • 321000094974
    $0.70
    washer M10-DIN134 - 1000094974×8
  • 331000015431Not stocked
    washer×2
  • 341000303479
    $270.16
    Valvebracket 1000303479×1
  • 351000363212Not stocked
    bracket valve×1
  • 361000358185Not stocked
    bracket valve×1
  • 371000015515Not stocked
    screw joint×1
  • 381000015490Not stocked
    screw joint×1
  • 391000015408
    $1.33
    nut M10-8 A2C-DIN985 - 1000015408×2
  • 401000358131
    $19.02
    bracket - 1000358131×1
  • 411000015416
    $0.71
    DIN985-M8-8-A2C - 1000015416×2
  • 421000282738
    $2.17
    sockets - 1000282738×1
  • 431000151037
    $7.02
    edge protection - 1000151037×0.435
  • 441000373699Not stocked
    screw joint×1
  • 451000000542
    $11.08
    EW08LOMD - 1000000542×3
  • 461000085069
    $27.33
    E28LR3/4" EDOMDA3C - 1000085069×1
