G180 Generator, Cold Weather T4

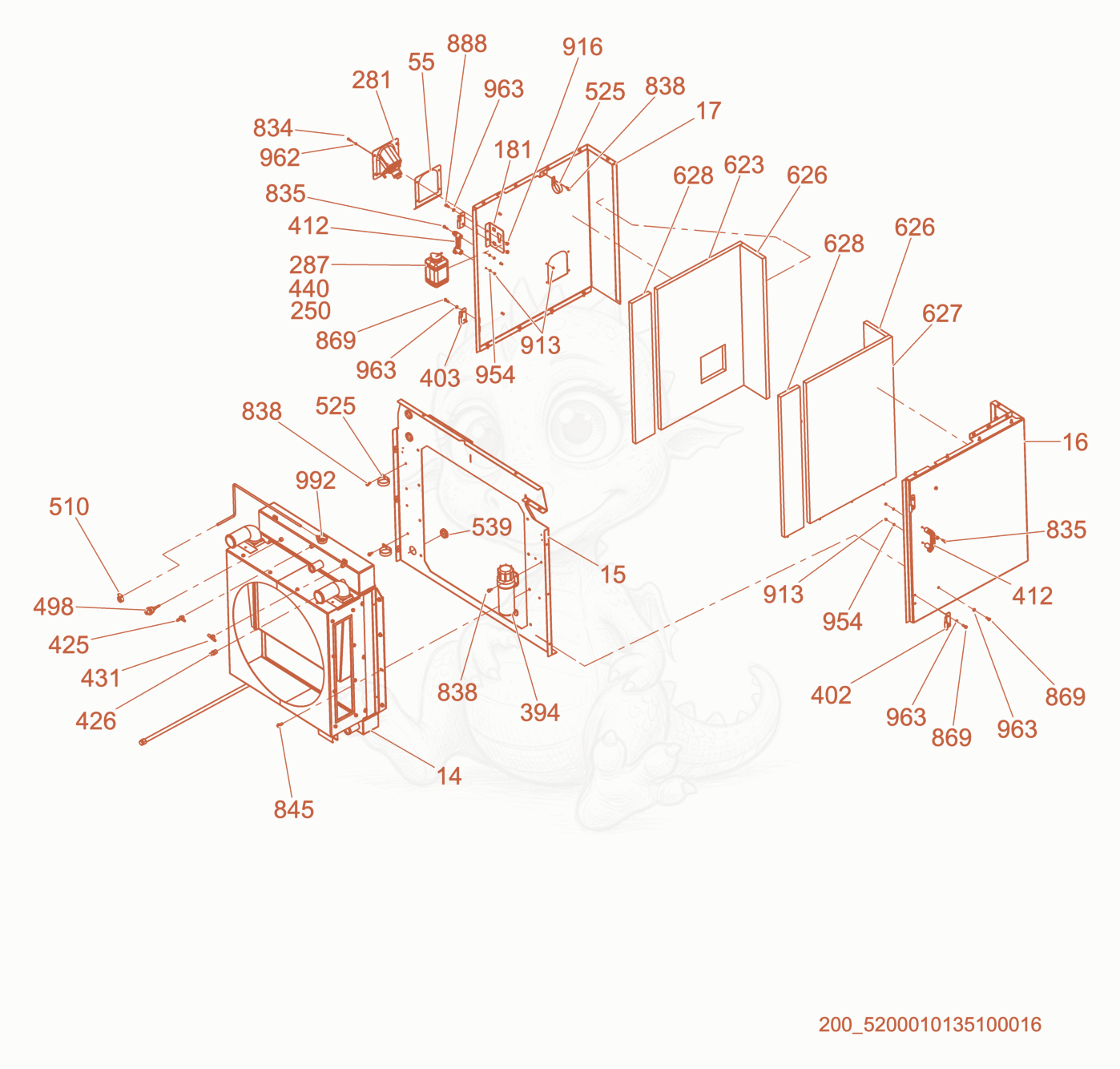

G180 Front Enclosure/Radiator Diagram

Exploded parts diagram of the Front Enclosure/Radiator of a Wacker Neuson G180, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 145000182347
    $7,982.44
    RADIATOR,CAC,W/SHRD, XL T4 P- 500011200 - 5000182347×1
  • 155200012440Not stocked
    Panel×1
  • 165100021140
    $533.49
    PANEL-RF SIDE,WLDMT,XLG, P-5100021100 - 5100021140×1
  • 175100022070
    $494.38
    Panel-LF Side,WLDMT,XLG,T4F P-5100021100 - 5100022070×1
  • 555200016877Not stocked
    Plate×1
  • 1815000183073
    $64.67
    BRACKET-BOTTLE,OVERFLOW P-5000176420 - 5000183073×1
  • 2505000183432
    $0.76
    GASKET-CAP,OVERFLOW BOTTLE - 5000183432×1
  • 2815200012487Not stocked
    Port×1
  • 2875000165144
    $3.23
    CAP-BOTTLE,OVERFLOW - 5000165144×1
  • 3945200008089
    $15.03
    Holder-Manual,3.25 w/Molded Feet - 5200008089×1
  • 4025200014957Not stocked
    Hinge pin×2
  • 4035200014959Not stocked
    Hinge pin×2
  • 4125000117815
    $11.08
    HANDLE-PUMP - 5000117815×2
  • 4255000192395
    $2.30
    FITTING-1/4 NPT X 3/8 BARB - 5000192395×1
  • 4265000183090
    $12.22
    FITTING-3/4 NPT X 3/4 BARB - 5000183090×1
  • 4315100015515
    $33.89
    Fitting-Hose,3/8x1/4,Male Branch T,Bras - 5100015515×1
  • 4405000165143
    $25.80
    BOTTLE-OVERFLOW - 5000165143×1
  • 4985000192650
    $253.61
    SENSOR-COOLANT LEVEL 5V - 5000192650×1
  • 5105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×1
  • 5255200017173Not stocked
    Clamp×3
  • 5395000153092
    $0.73
    BUSHING 1-5/8 IN. I.D. - 5000153092×3
  • 6235200012453Not stocked
    Insulator×1
  • 6265000171491
    $39.99
    INSULATOR-EXHAUST COMP,SIDE FT - 5000171491×2
  • 6275000171492
    $121.22
    INSULATOR-EXHAUST COMP,SIDE - 5000171492×1
  • 6285000171493
    $38.82
    INSULATOR-EXHAUST COMP,BULKHD - 5000171493×2
  • 8345200018934Not stocked
    Screw×4
  • 8355000154519
    $0.46
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×4
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×8
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×12
  • 8885000161194
    $0.29
    SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×2
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9625200018935Not stocked
    Washer×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9925100028240
    $32.03
    CAP-RAD., 14 psi for Rad. 182347 - 5100028240×1
