G180 Generator, Cold Weather T4

G180 Main Breaker Diagram

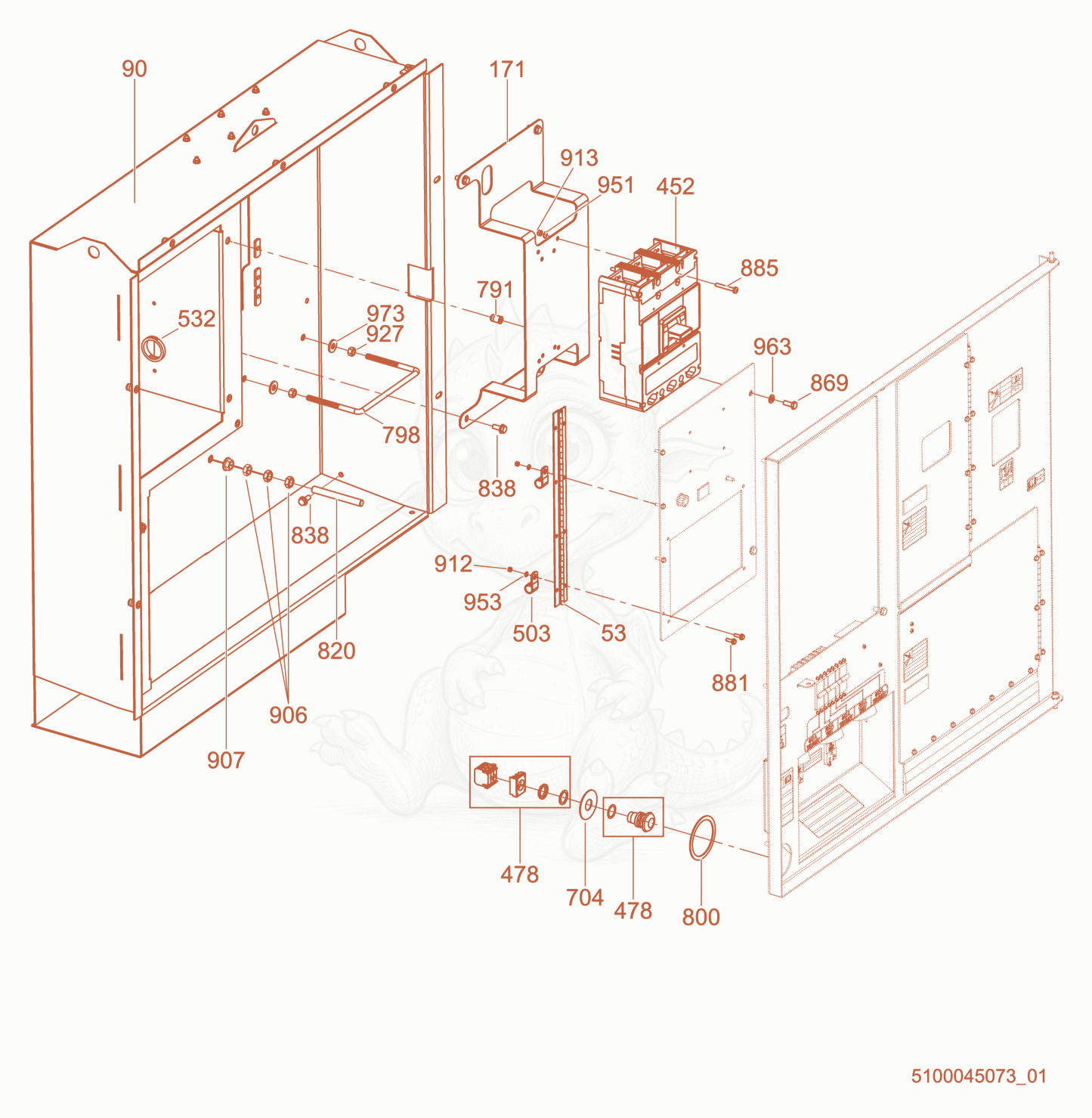

Exploded parts diagram of the Main Breaker of a Wacker Neuson G180, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

535000171477
$27.63
HINGE ASSY - 5000171477×1
905000171139
$1,143.74
CONTROL BOX WELDMENT - 5000171139×1
1355100036009
$10.61
PLUG-DEUTSCH,8-PIN,DT06-08SA-C017 - 5100036009×1
1715000171564
$111.66
BRACKET-MAIN BREAKER - 5000171564×1
4525000155011
$6,271.08
BREAKER 500 AMP,3 POLE - 5000155011×1
4785000165439
$139.33
SWITCH-E STOP ASSM,2P-NC,1P-NO - 5000165439×1
5035000153746
$1.14
CLAMP-TUBING .625 - 5000153746×2
5325000153092
$0.73
BUSHING 1-5/8 IN. I.D. - 5000153092×2
7045000155460
$148.82
LABEL-EMERGENCY STOP - 5000155460×1
7915000085454
$0.85
INSERT M8,THREADED - 5000085454×2
7985000171129
$16.60
BOLT,3/8-16 X 8 SQUARE BEND-U - 5000171129×1
8005000171541
$5.91
SEAL-EMERGENCY STOP - 5000171541×1
8205000171489
$27.32
STUD 1/2-13X4.5 ,FULL THREAD - 5000171489×1
8385000028404
$0.26
SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×5
8695000058897
$186.60
MOLDING-RUBBER STRIP,415MM - 5000058897×2
8815000159811
$0.95
SCREW M5X16 HX HD SERR FLG ZP - 5000159811×8
8855000155779
$0.40
SCREW M6 X 45,PAN HD,PHIL - 5000155779×4
9065000025626
$0.12
NUT .500-13 HX JAM ZN - 5000025626×3
9075000155243
$1.03
NUT 1/2-13 HX SER FLG ZP - 5000155243×1
9125000010369
$0.03
NUT-LOCK M5 HEX. - 5000010369×8
9135000010368
$0.10
NUT-LOCK M6 HEX. - 5000010368×4
9245000010367
$0.10
NUT-LOCK M8 HEX - 5000010367×2
9275000025617
$0.07
NUT 3/8-16,HEX - 5000025617×2
9515000010624
$0.03
WASHER B6.4 FLAT - 5000010624×4
9535000010625
$0.14
WASHER B5.3 FLAT - 5000010625×8
9635000158899
$0.07
WASHER M8 FLAT,SST - 5000158899×6
9735000025637
$0.06
WASHER 3/8 NOM,STEEL,FLAT - 5000025637×2
