G180 Generator, Cold Weather T4

G180 Sheet Metal Assembly Diagram

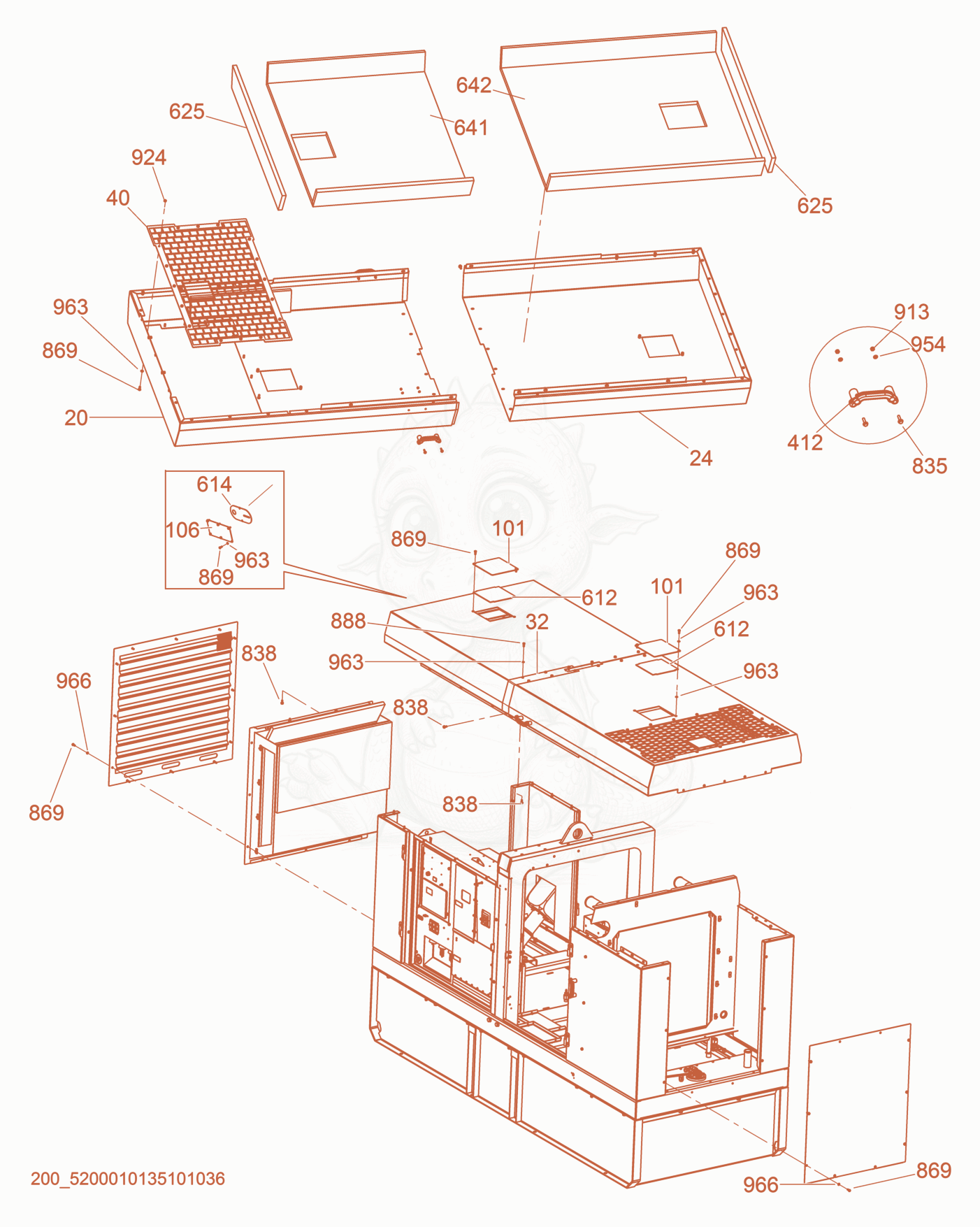

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G180, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 205100022071
    $3,074.40
    PANEL-ROOF,FRT XL,MG,WLDMT,P-5100021100 - 5100022071×1
  • 245100022068
    $1,488.85
    PANEL-ROOF,REAR WLDMNT,XLC P-5100021100 - 5100022068×1
  • 325100022069
    $59.93
    PANEL-ROOF JOINT XL P-5100021100 - 5100022069×2
  • 405200021980Not stocked
    Panel×1
  • 1015100020975
    $77.72
    PANEL-RADIATOR COVER, P-5100021100 - 5100020975×2
  • 1065100021913
    $21.69
    PANEL-TELEMATICS ACCESS P-5100021100 - 5100021913×1
  • 4125000117815
    $11.08
    HANDLE-PUMP - 5000117815×2
  • 6125000179156
    $14.12
    GASKET-RADIATOR COVER - 5000179156×2
  • 6145100015120
    $3.82
    GASKET- TELEMATICS PORT - 5100015120×1
  • 6255000171500
    $42.28
    INSULATOR-EXHAUST COMP,FRT TOP - 5000171500×2
  • 6415000171499
    $282.61
    INSULATOR-ROOF,FRONT - 5000171499×1
  • 6425200022384Not stocked
    Insulator-roof, rear×1
  • 8355000154519
    $0.46
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×4
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×24
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×54
  • 8885000161194
    $0.29
    SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×16
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×4
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×10
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×36
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×24
