G240-MOBILE GENERATOR,STANDARD

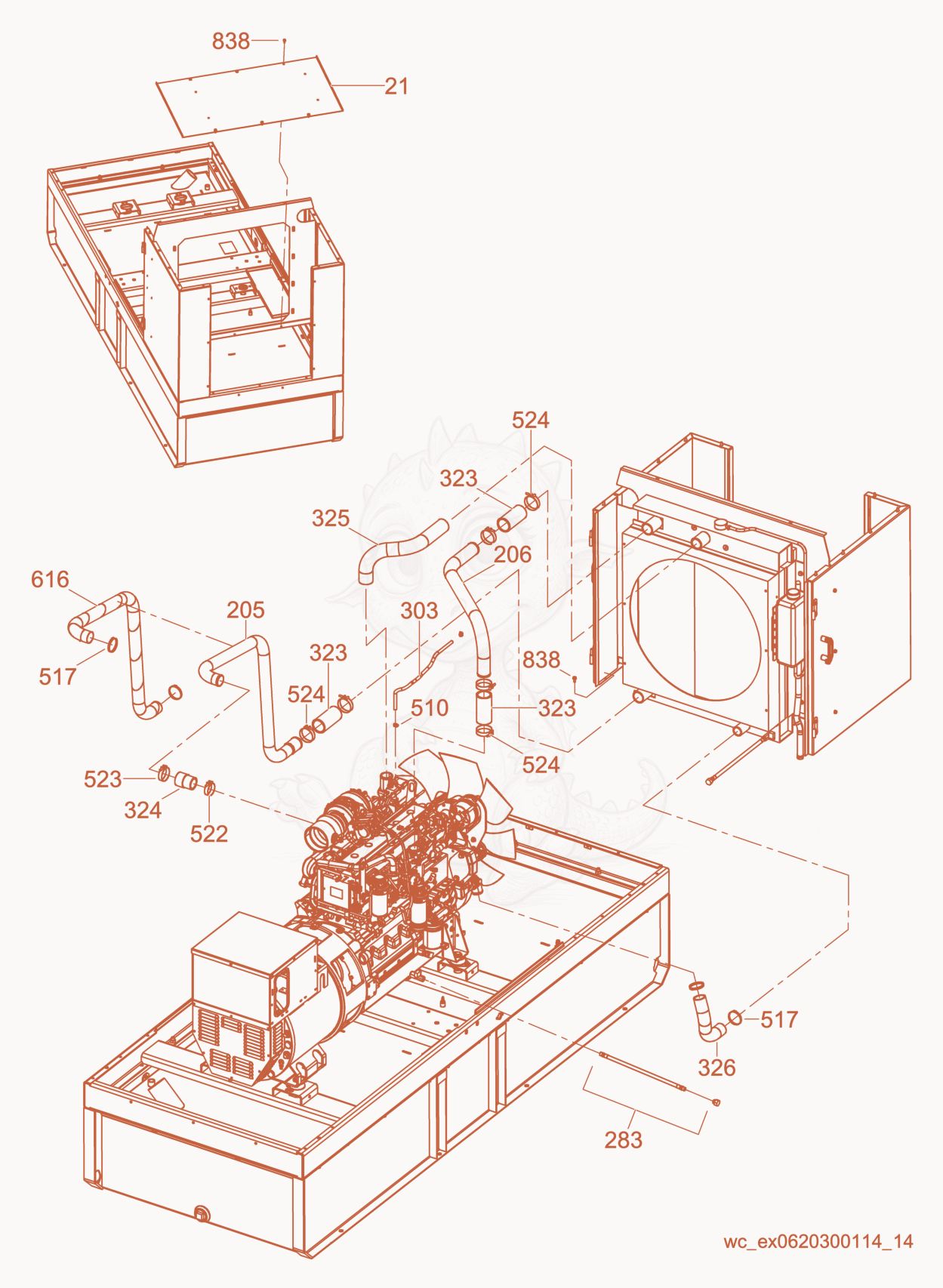

G240 Radiator Hoses Diagram

Exploded parts diagram of the Radiator Hoses of a Wacker Neuson G240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 215000171099
    $272.88
    PANEL-SPLASH,XLG P-5000176420 - 5000171099×1
  • 2055000171116
    $517.40
    PIPE-CAC TURBO - 5000171116×1
  • 2065000171117
    $309.00
    PIPE-CAC INTAKE - 5000171117×1
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 3035000171565
    $2.48
    HOSE-RADIATOR,5/16 X 555MM - 5000171565×1
  • 3235000156299
    $135.54
    HOSE-CAC,2.5 - 5000156299×3
  • 3245000156300
    $54.64
    HOSE-CAC,2 X 2.25 REDUCER - 5000156300×1
  • 3255000180130
    $172.07
    HOSE-RADIATOR,TOP,G240 - 5000180130×1
  • 3265000170698
    $33.10
    HOSE-RADIATOR,2.0 ID X 17.0 L - 5000170698×1
  • 5105000028707
    $0.67
    CLAMP-THREADED,.21-.63 - 5000028707×1
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×4
  • 5225000028698Not stocked
    T-bolt clamp×1
  • 5235000156290
    $7.24
    CLAMP-2 5/8 NOM,T-BOLT - 5000156290×1
  • 5245000174640
    $7.72
    CLAMP-2 3/4 NOM,T-BOLT - 5000174640×6
  • 6165000179786
    $184.72
    INSULATOR-EXH SOCK 7FT - 5000179786×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×14
