G240-MOBILE GENERATOR,STANDARD

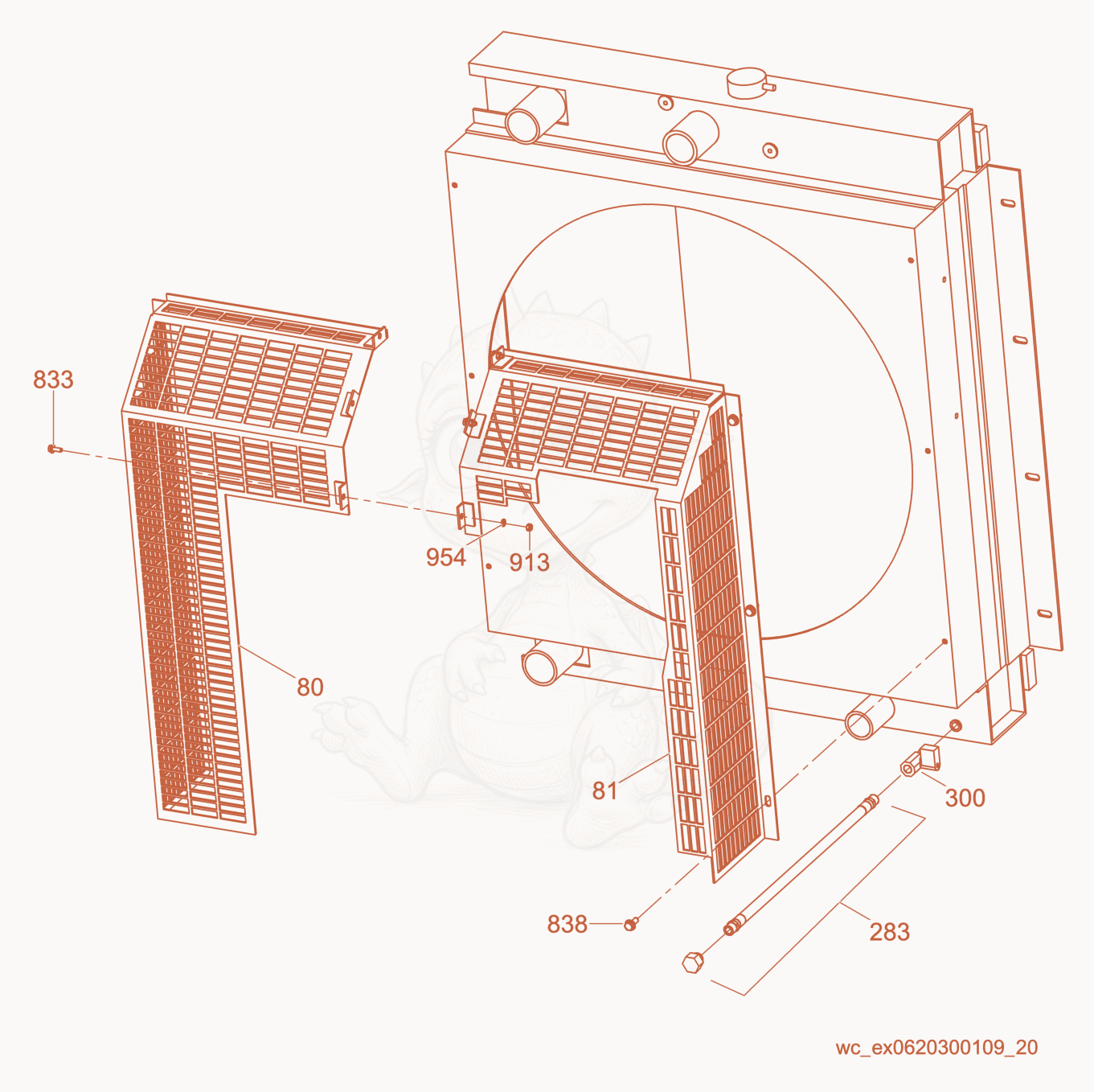

G240 Fan Guard Diagram

Exploded parts diagram of the Fan Guard of a Wacker Neuson G240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 805000171106
    $515.89
    GUARD-FAN,LEFT,XLG P-5000176420 - 5000171106×1
  • 815000171107
    $207.82
    GUARD-FAN,RIGHT,XLG P-5000176420 - 5000171107×1
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×3
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×3
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×3
