G240-MOBILE GENERATOR,STANDARD

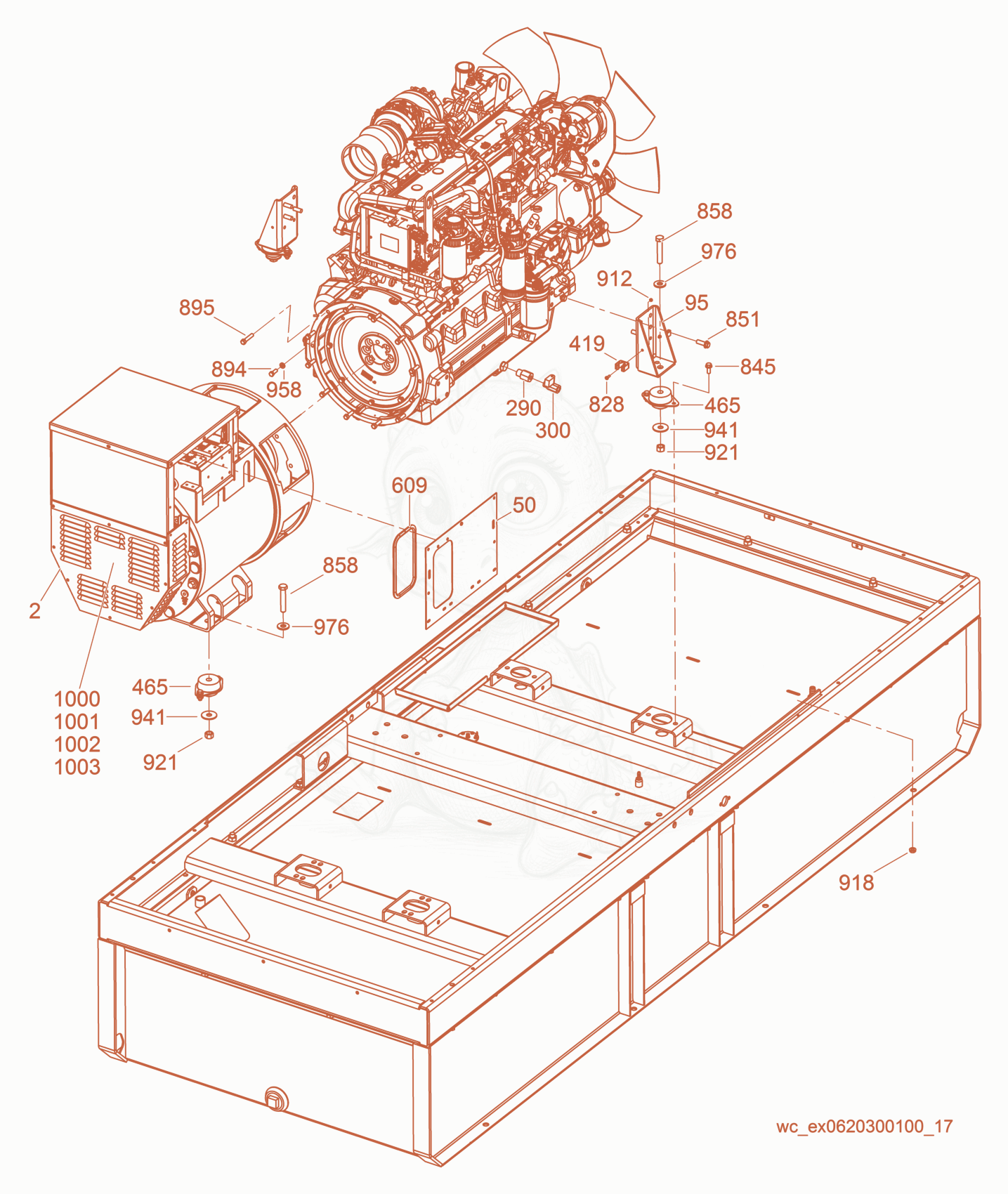

G240 Generator/Engine Diagram

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 25000180142
    $21,557.28
    G240 Generator Complete 5000180142×1
  • 505000174539
    $181.89
    PANEL-GENERATOR,G240/180 - 5000174539×1
  • 955000171109
    $82.92
    MOUNT-ENGINE P-5000176420 - 5000171109×2
  • 2905000153962
    $40.66
    FITTING M22 X 1/2 NPT - 5000153962×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 4195000153747
    $4.20
    CLIP-SPRING HOLDER - 5000153747×2
  • 4655000171133
    $98.21
    SHOCKMOUNT-RUBBER,1020 LBS MAX - 5000171133×4
  • 6095000176733
    $13.70
    SEAL-TRIM EDGE LOCK,636MM - 5000176733×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×2
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×8
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×6
  • 8585000011382
    $2.18
    SCREW M16 X 90 HX.HD. - 5000011382×4
  • 8945000025573Not stocked
    Hexagonal head cap screw×8
  • 8955000171561
    $3.45
    SCREW M10 X 50 HX HD,10.9 PLN - 5000171561×12
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×2
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
  • 9215000155244
    $0.68
    NUT M16-8.8 HX HD ZP - 5000155244×4
  • 9415000153067
    $44.42
    WASHER-SNUBBER - 5000153067×4
  • 9585000154530
    $0.29
    WASHER M10 HARDENED BLK TP 200 - 5000154530×8
  • 9765000153532
    $3.16
    WASHER-LOCK M16 CON SPR,MZP - 5000153532×4
  • 10005200005593
    $1,414.48
    EXCITER STATOR - 5200005593×1
  • 10015200005592
    $217.02
    BEARING-REAR - 5200005592×1
  • 10025000164609
    $94.79
    RING-DIODE - 5000164609×3
  • 10035100028621
    $10,655.88
    Main Stator cpl. -Gen 51.16817 & 0171089 - 5100028621×1
