G240-GENERATOR, SKID, CUSTOM, DEERE T3

G240 Option-Radiator Shutter Diagram

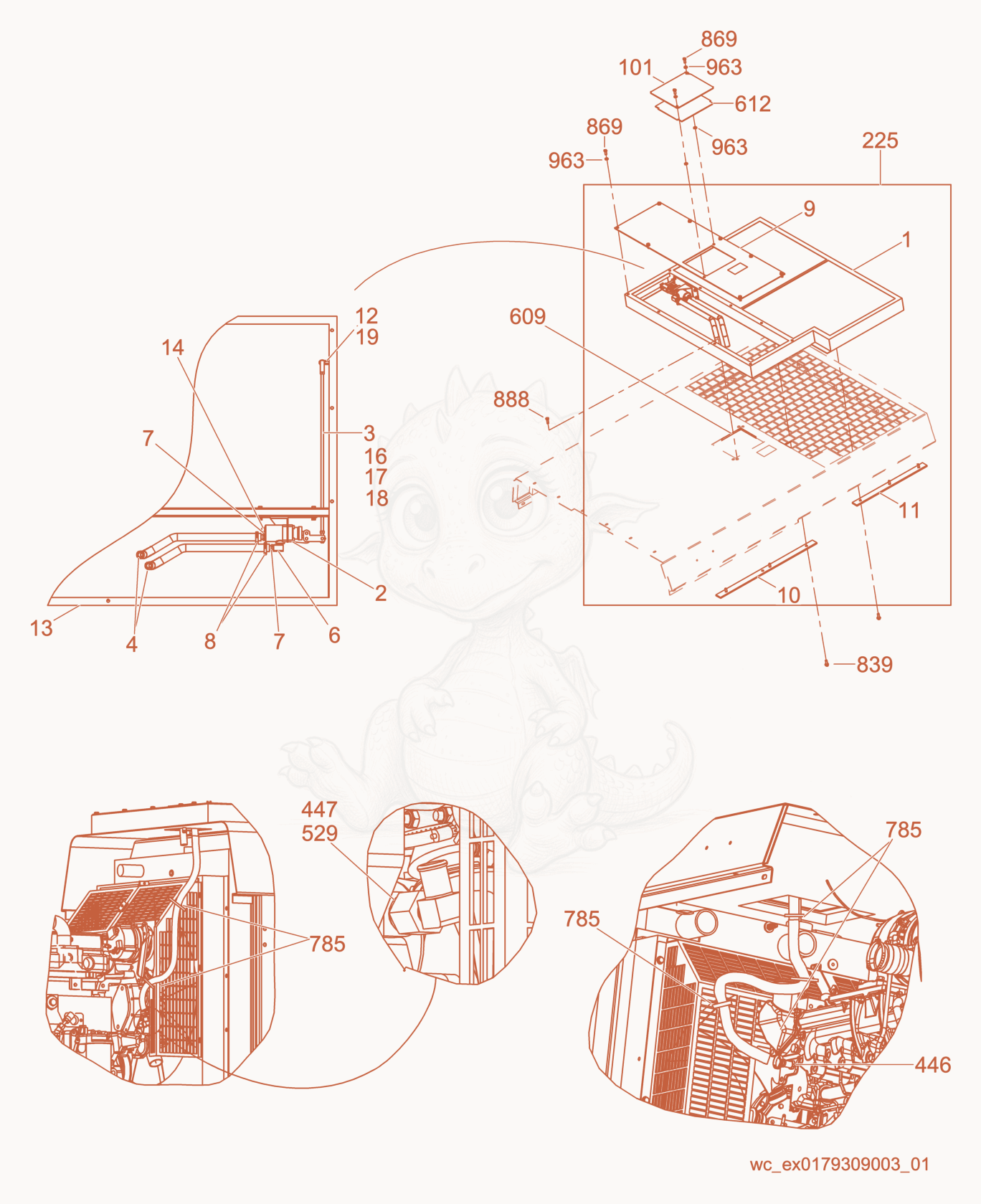

Exploded parts diagram of the Option-Radiator Shutter of a Wacker Neuson G240, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

15000178639
$1,418.64
BAFFLE,SHUTTER - 5000178639×1
25000178640Not stocked
Control module×1
35000171921
$38.14
ROD-CONTROLLER - 5000171921×1
45000171925
$20.71
HOSE-HEATER - 5000171925×2
65000171926
$6.95
FITTING-90 DEG. ELBOW - 5000171926×1
75000171927
$12.57
Fitting - 5000171927×2
85000171928
$5.35
CLAMP-THREADED HOSE - 5000171928×4
95000178641
$140.01
PLATE-COVER - 5000178641×1
105000178642
$61.57
BRACKET-MOUNTING,LONG - 5000178642×1
115000178643
$36.86
BRACKET-MOUNTING,SHORT - 5000178643×1
125000171932
$43.96
PIN-THREADED PIVOT - 5000171932×1
135000179374
$32.07
TAPE-WEATHER STRIP - 5000179374×1
145000175118
$1.68
PLUG-PIPE - 5000175118×1
155000179375
$18.45
SPRING-EXTENSION - 5000179375×1
165000171922
$55.55
FITTING-END - 5000171922×1
175000171923
$0.52
NUT-HEX - 5000171923×2
185000171924
$0.81
NUT-LOCK - 5000171924×1
195000179373
$0.35
C-CLIP - 5000179373×1
1015000179153
$73.81
PANEL-RADIATOR COVER, P-5000177670 - 5000179153×1
2255000174619
$4,308.13
Baffle-Rad Shutter,XL - 5000174619×1
4465000159865
$5.92
FITTING 5/8 ID HOSE X 1/2 PIPE - 5000159865×1
4475000159864
$11.47
ADAPTER M18 MALE X 3/8 NPTF - 5000159864×1
5295000164137
$9.23
FITTING-3/8 NPT,5/8 BARB,90 DE - 5000164137×1
6095000153255
$3.85
SEAL-GENERATOR BOX - 5000153255×2
6125000179156
$14.12
GASKET-RADIATOR COVER - 5000179156×1
7855000047388
$0.18
CABLE-TIE 7.6X356MM,NO MNT,BLK - 5000047388×6
8395000155213
$0.96
SCREW-M8 X 25 HX SER FLG ZP - 5000155213×6
8695000158897
$0.25
SCREW M8X20 HX.HD.,SST - 5000158897×8
8885000161194
$0.29
SCREW M8X25 HX.HD.,A2 304,SST - 5000161194×1
9635000158899
$0.07
WASHER M8 FLAT,SST - 5000158899×8
