G240-GENERATOR, SKID, CUSTOM, DEERE T3

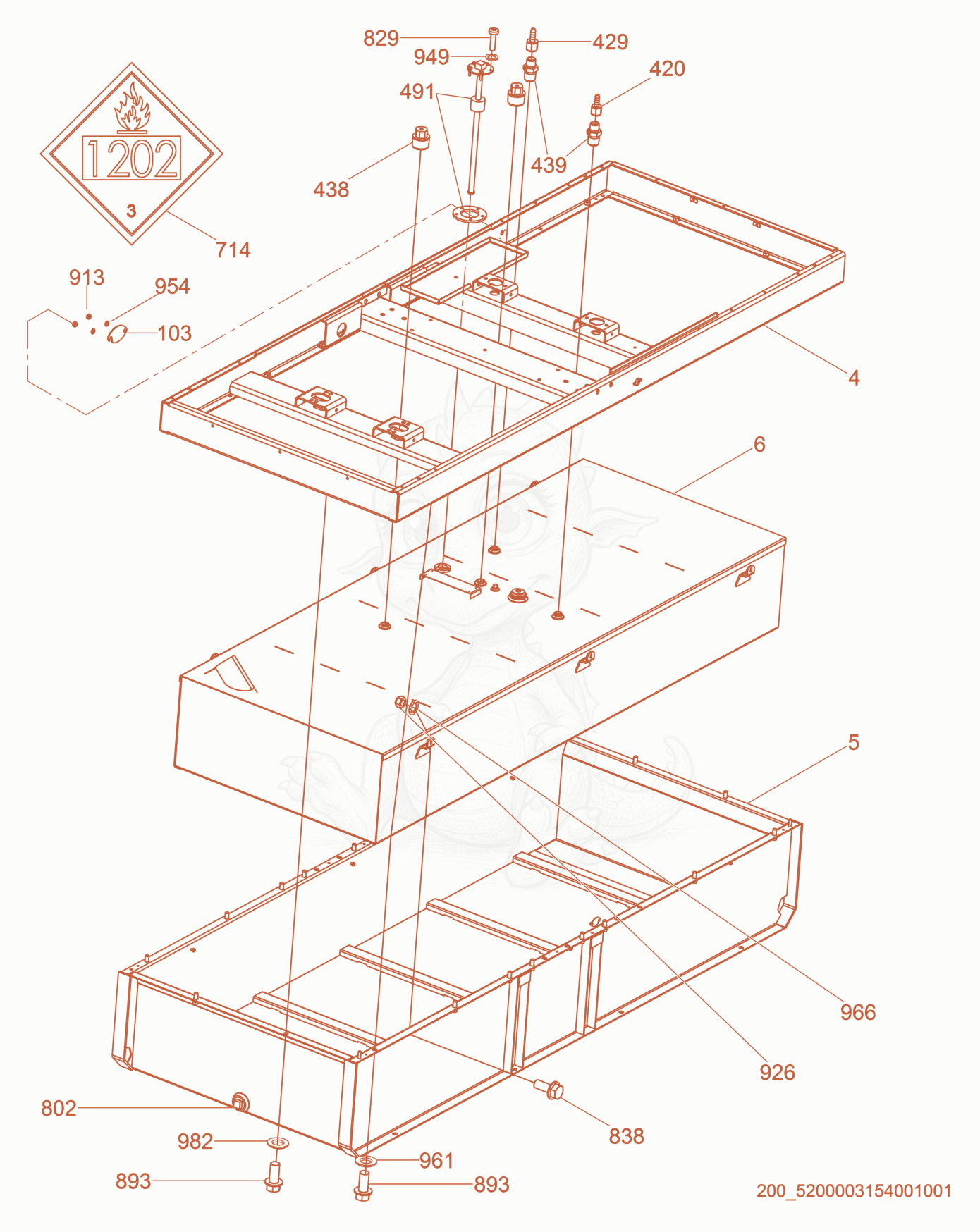

G240 Option-Skid/Fuel Tank cpl. Diagram

Exploded parts diagram of the Option-Skid/Fuel Tank cpl. of a Wacker Neuson G240, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45000171073
    $4,648.95
    FRAME-SKID WLDMNT UPPER,XL - 5000171073×1
  • 55000171060
    $5,373.92
    FRAME-SKID WLDMNT LOWER,G240 - 5000171060×16
  • 65200003139
    $11,637.05
    TANK-FUEL 400 GAL, TC APPROVED - 5200003139×1
  • 1035000158900
    $29.81
    PANEL-OIL DRAIN COVER,SKID P-5000176420 - 5000158900×1
  • 4205000160596
    $11.12
    FITTING-5/16 BARB X 3/8 F.NPT - 5000160596×1
  • 4295000160980
    $4.62
    FITTING 1/4 BARB X 3/8 FNPT - 5000160980×1
  • 4385200005512
    $7.75
    FITTING-1/2 NPT NIPPLE, BRASS - 5200005512×2
  • 4395200005514
    $34.75
    FITTING-3/4 NPT PLUG, BRASS - 5200005514×2
  • 4915200001007
    $178.98
    Sensor-Fuel,450mm w/connector - 5200001007×1
  • 7145200003428
    $38.87
    LABEL-DIESEL PLACARD - 5200003428×4
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×5
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×6
  • 8935000011522
    $0.62
    SCREW M16 X 35 HX.HD. - 5000011522×20
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9265000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×6
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×2
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×16
  • 9615000178507
    $0.24
    WASHER-LOCK,A16 EXT.STAR - 5000178507×4
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×6
