G240-GENERATOR, SKID, CUSTOM, DEERE T3

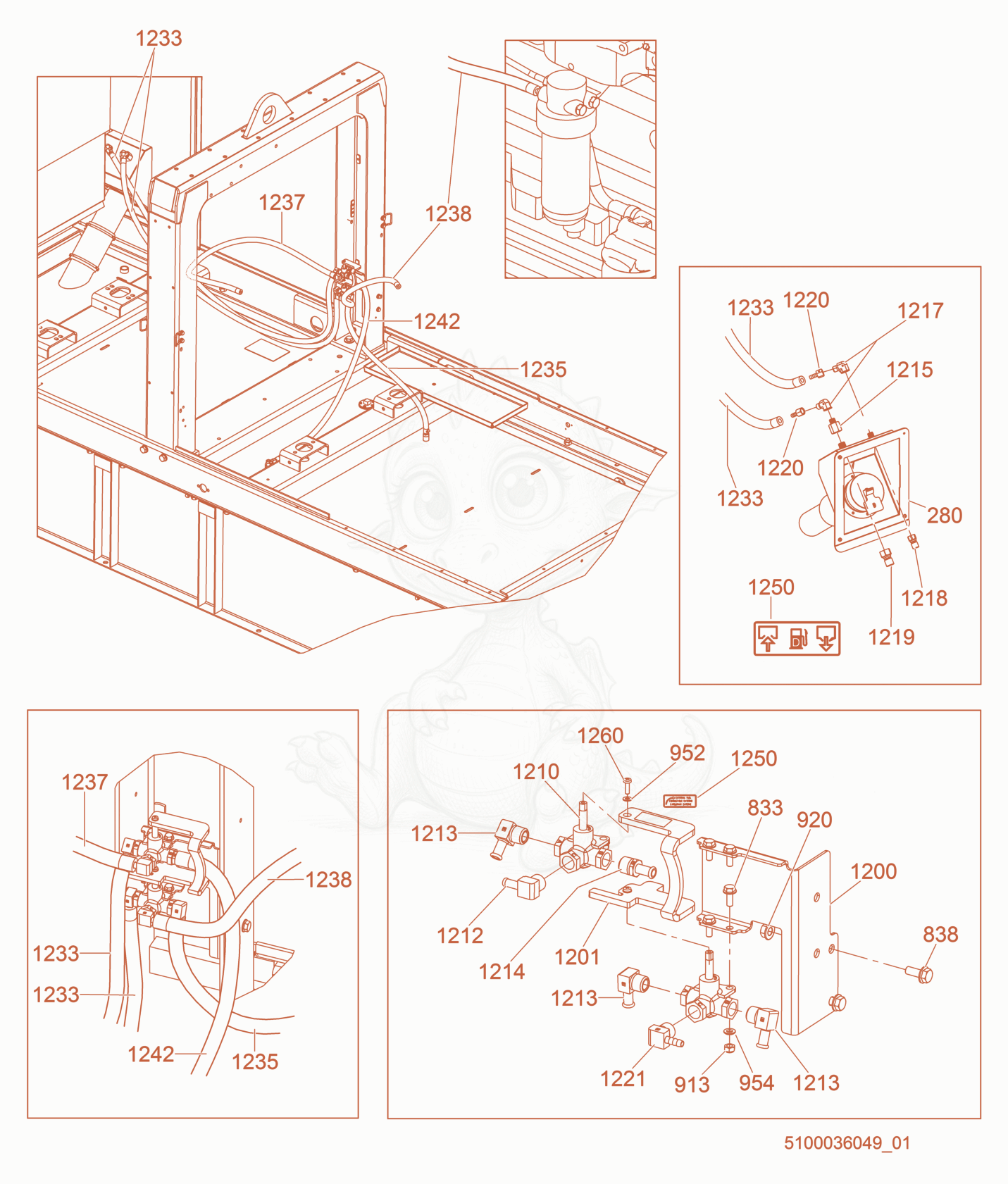

G240 Option-Fuel Quick Disconnect Diagram
- 2805200024166Not stockedFuel fill port×1
- CLAMP-THREADED,.21-.63 - 5000028707×12
- SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×2
- NUT-LOCK M6 HEX. - 5000010368×4
- Nut M8 Flange, Non serrated - 5000115570×2
- WASHER A4.3 FLAT - 5000010628×2
- WASHER B6.4 FLAT - 5000010624×4
- 12005200025293Not stockedBracket×1
- 12015200025294Not stockedHandle×1
- 12105200025295Not stockedFuel valve×2
- FITTING-HOSE,3/8 NPT X 5/16 - 5000164618×1
- 12135200022715Not stockedFitting×3
- 12145200025557Not stockedFitting×1
- FITTING-REDUCER 1/2NPTF TO 3/8NPTM - 5200005250×1
- FITTING-ELBOW,3/8 NPTFX3/8 NPT - 5000180571×3
- COUPLER-ISO 7241-1B 3/8 MALE - 5200001623×1
- 12195200024167Not stockedCoupling×1
- FITTING-3/8 BARB X 3/8 F.NPT - 5000181823×4
- 12215200022978Not stockedFitting×1
- 12335200015822Not stockedFuel hose×2
- HOSE-FUEL 3/8 x 800MM - 5200007891×1
- HOSE-FUEL 5/16 X 1170MM - 5000172785×1
- HOSE-FUEL,1/4 X 780MM - 5000171118×1
- HOSE-DRAIN,ML,1100MM - 5000179344×1
- HOSE-FUEL 5/16 X 1170MM - 5000172785×1
- LABEL-SHEET,FUEL EXTERNAL - 5100015030×1
- SCREW #8-32 X 1/4,HX.HD.MACH. - 5000028329×2
