G320 Generator, Standard, T4

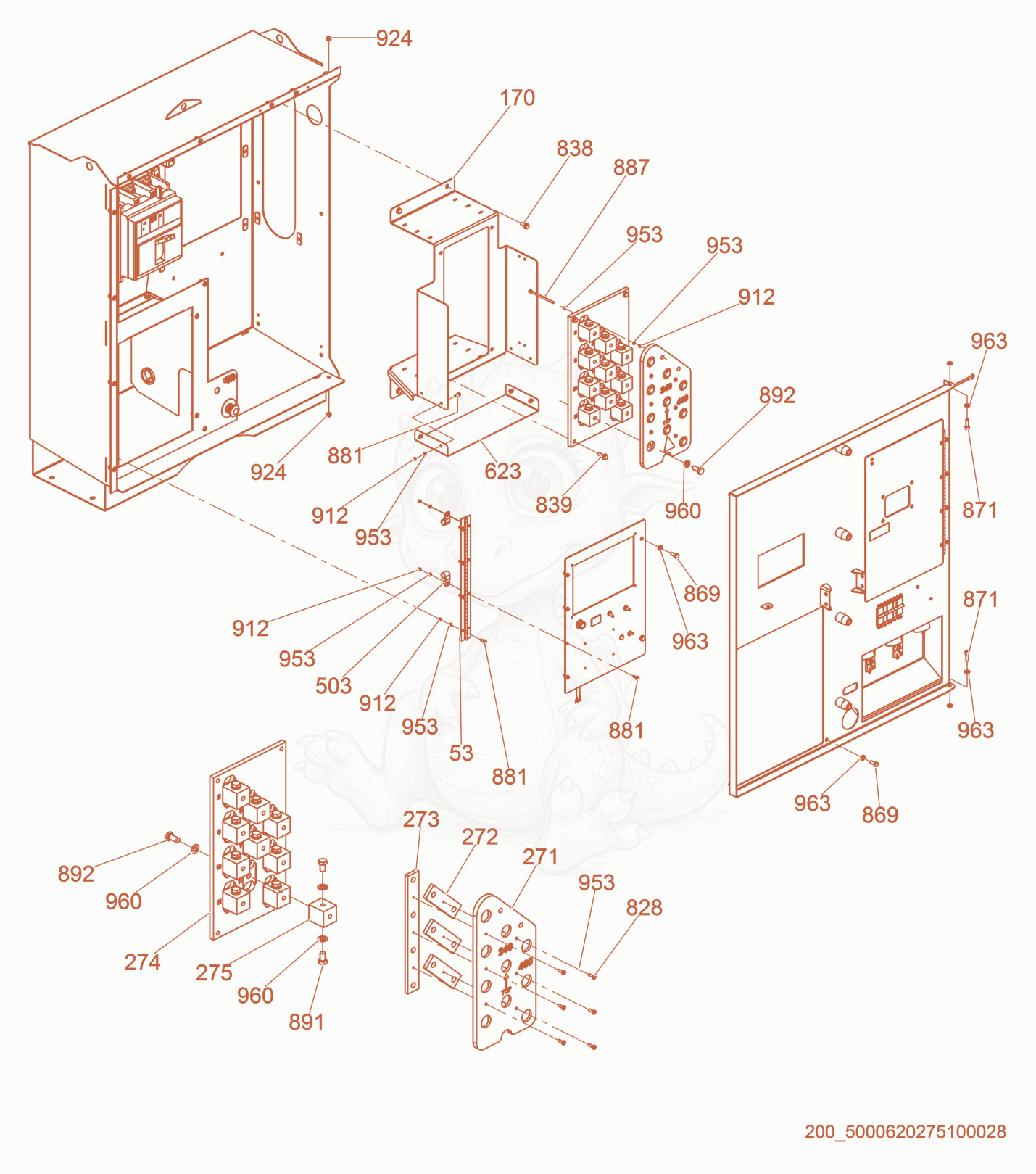

G320 Reconnectable Panel and Door Diagram

Exploded parts diagram of the Reconnectable Panel and Door of a Wacker Neuson G320, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 535000171477
    $27.63
    HINGE ASSY - 5000171477×13
  • 1705000193220
    $526.54
    Bracket- Reconn. Weldment - 5000193220×1
  • 2715000171157
    $166.29
    PLATE-GLASTIC RECONNECT PANEL - 5000171157×1
  • 2725000171158
    $88.04
    PLATE-BUS BAR,SHORT - 5000171158×3
  • 2735000171159
    $184.28
    PLATE-BUS BAR,LONG - 5000171159×1
  • 2745000171154
    $386.06
    PLATE-GLASTIC,TERMINAL BLOCK - 5000171154×1
  • 2755000171155
    $69.73
    TERMINAL BLK-RECONNECT PLATE - 5000171155×10
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×2
  • 6235000193222
    $296.53
    GUARD-PAN - 5000193222×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×6
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8395000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×4
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×7
  • 8715000051543
    $1.03
    SCREW M8 X 25 ST,SOC.HD - 5000051543×28
  • 8815000159811
    $0.95
    SCREW M5X16 HX HD SERR FLG ZP - 5000159811×12
  • 8875000171494
    $1.52
    SCREW-M5 X 100 PN HD,PHILLIPS - 5000171494×1
  • 8915000012368
    $0.52
    SCREW M12 X 20 HX.HD. - 5000012368×17
  • 8925000013002
    $0.37
    SCREW M12 X 25 HX.HD. - 5000013002×20
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×13
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×20
  • 9605000010620
    $0.26
    WASHER B13 FLAT - 5000010620×37
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×6
