G320 Generator, Standard, T4

G320 Generator/Engine Diagram

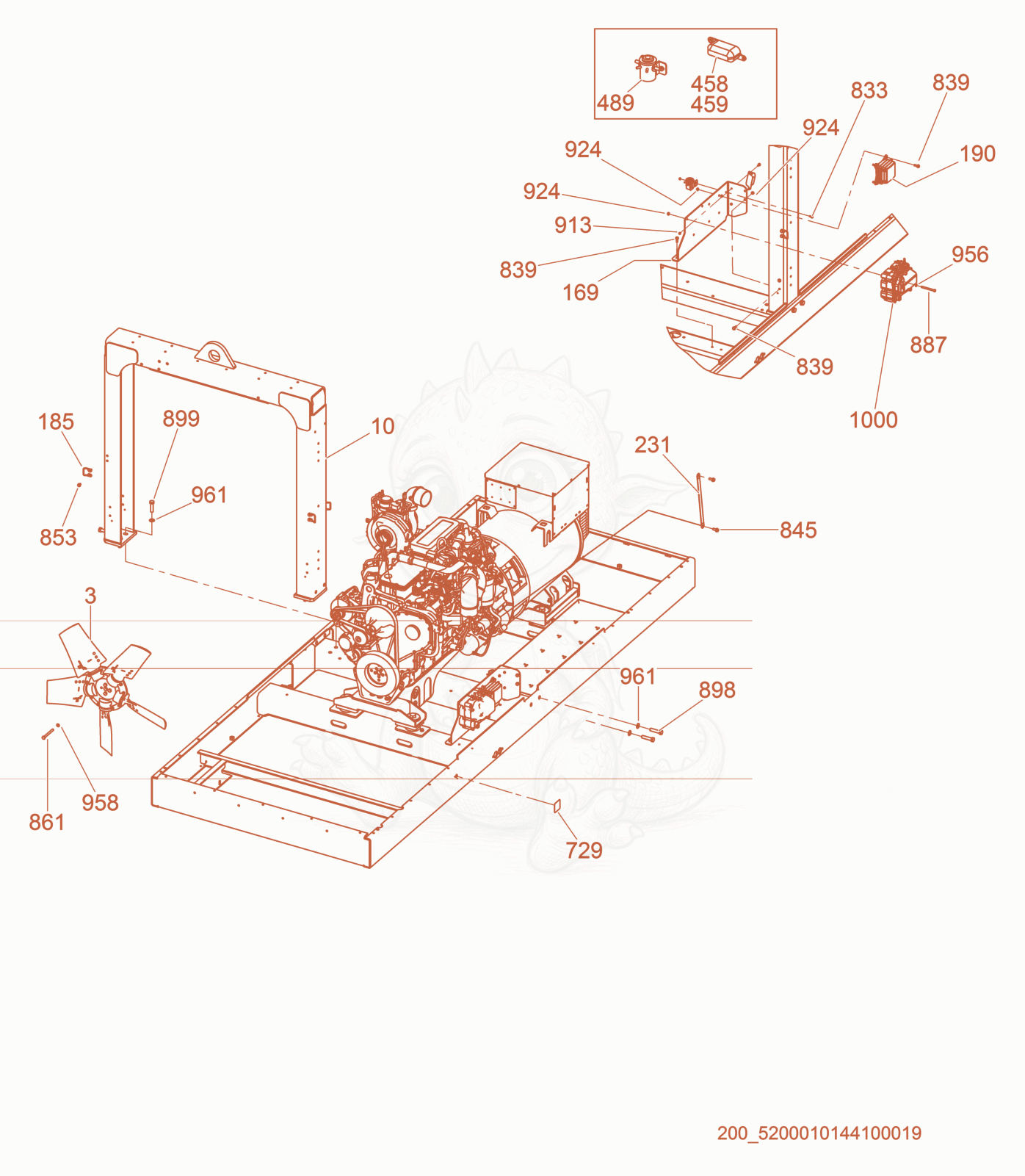

Exploded parts diagram of the Generator/Engine of a Wacker Neuson G320, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 35200001880
    $783.19
    Fan-34 AirFoil, G320 - 5200001880×1
  • 105200010167Not stocked
    Frame×1
  • 1695200016970Not stocked
    Bracket×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×5
  • 1905200016619Not stocked
    Module×1
  • 2315000152979
    $16.84
    STRAP GROUND 15IN - 5000152979×1
  • 4585000183858
    $25.04
    FUSE HOLDER - 5000183858×1
  • 4595000183859
    $66.32
    FUSE - AMG TYPE, 150 AMP - 5000183859×1
  • 4895000183076
    $166.12
    RELAY-200 AMP,24 VOLT - 5000183076×1
  • 7295200022821Not stocked
    Label×1
  • 8335000028949
    $0.29
    SCREW M6 X 16,HX.HD,SER.FLG - 5000028949×4
  • 8395000155213
    $0.96
    SCREW-M8 X 25 HX SER FLG ZP - 5000155213×7
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×2
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×6
  • 8615000156270
    $1.05
    SCREW-M10 X 100 HX HD,GR 10.9 - 5000156270×4
  • 8875000011311
    $0.46
    SCREW M8 X 90 HHCS CL 8.8 ZINC - 5000011311×4
  • 8985000011378
    $4.98
    SCREW M16 X 70 HX.HD. - 5000011378×4
  • 8995000011517
    $4.94
    SCREW M16 X 60 HX.HD. - 5000011517×4
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×2
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×9
  • 9565000010622
    $0.10
    WASHER-FLAT,M8,ZINC - 5000010622×3
  • 9615000010618
    $0.28
    WASHER B17 FLAT - 5000010618×4
  • 10005200024521Not stocked
    Module×1
