G320 Generator, Standard, T4

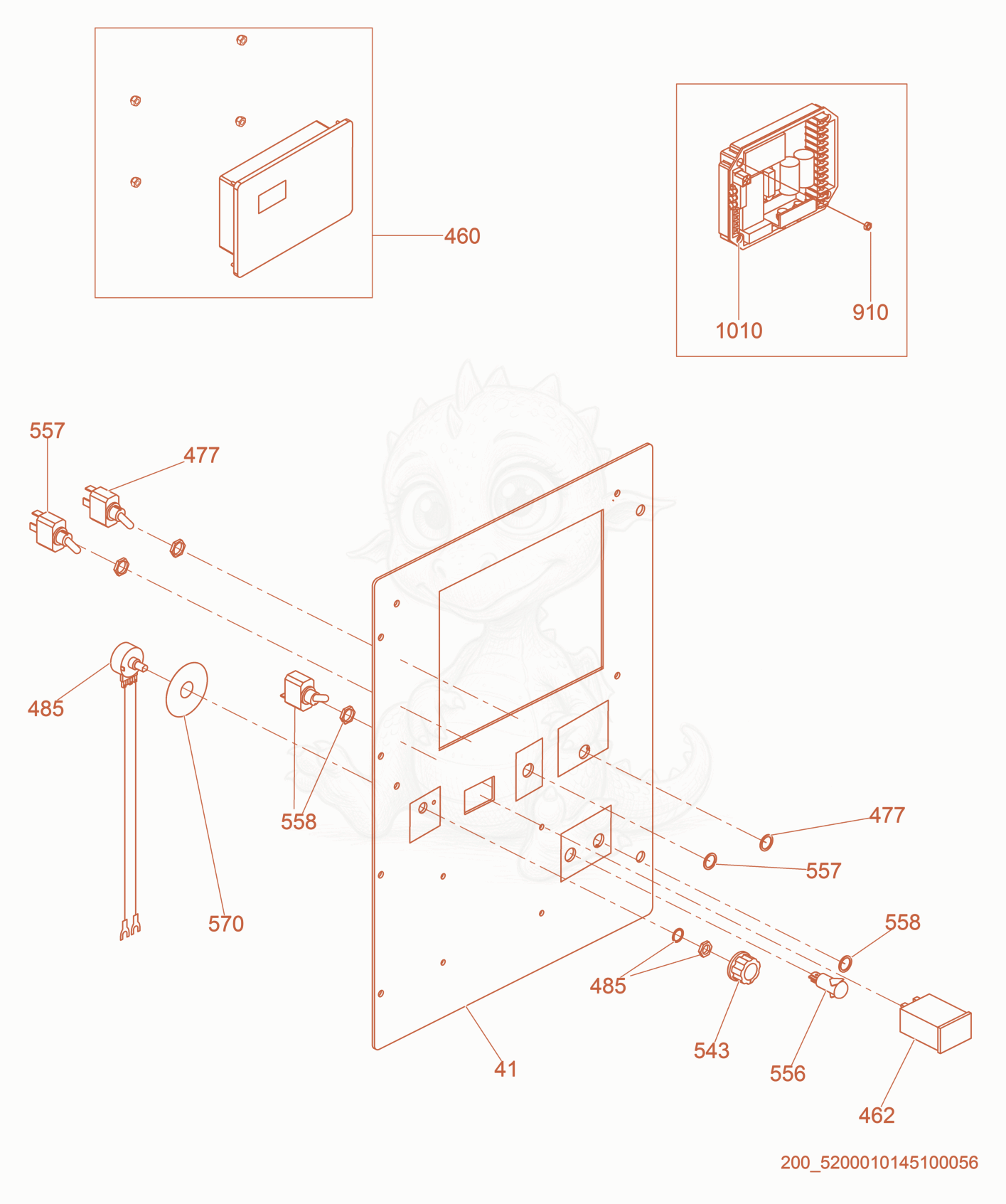

G320 Engine Control Module/VoltageRegulator Diagram

Exploded parts diagram of the Engine Control Module/VoltageRegulator of a Wacker Neuson G320, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 415200006884
    $131.24
    Door-Controller,G320,Deep Sea - 5200006884×1
  • 4605100036479
    $1,815.47
    MODULE-GEN CONTROL,DSE 73XX MKII,G320T4F - 5100036479×1
  • 4625000174668
    $104.75
    HOURMETER,MECHANICAL - 5000174668×1
  • 4775000176123
    $36.99
    SWITCH-TOGGLE,DPDT - 5000176123×1
  • 4855000178179
    $61.73
    WIRING HARNESS- Voltage Adjust - 5000178179×1
  • 5435000183016
    $4.96
    KNOB-VOLTAGE ADJUST - 5000183016×1
  • 5565200004727
    $18.18
    Light-indicator,amber - 5200004727×1
  • 5575200004728
    $28.58
    Switch-toggle,SPST, ON/OFF - 5200004728×1
  • 5585200004729
    $28.05
    Switch-toggle,SPST, (ON)/OFF - 5200004729×1
  • 5705000153523
    $8.44
    GUARD-POTENTIOMETER - 5000153523×1
  • 9105000010872
    $0.01
    NUT M4 8,HEX. - 5000010872×4
  • 10105200014251Not stocked
    Voltage regulator×1
