G50 Generator, Extended Run T4F

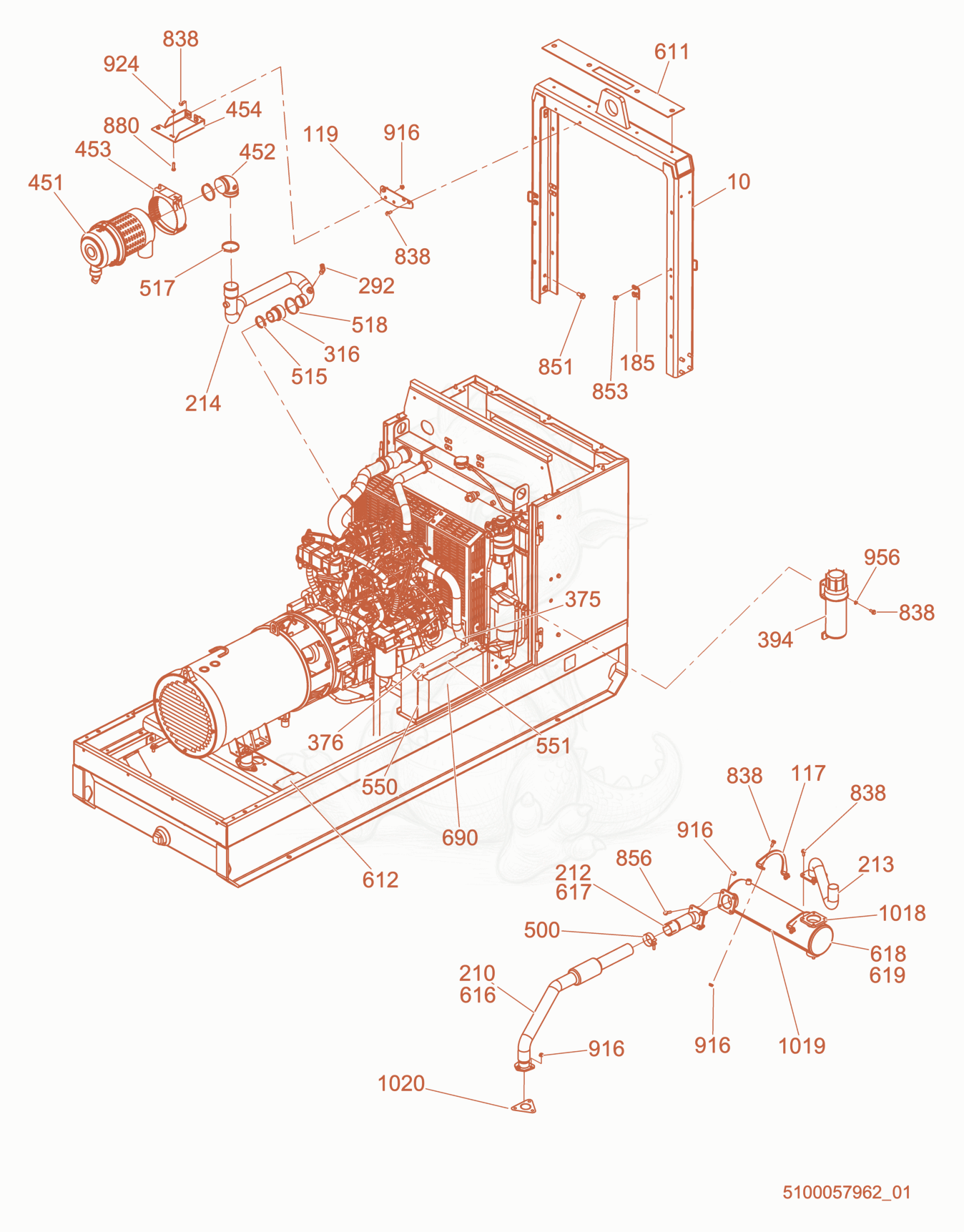

G50 Intake/Exhaust Diagram
- FRAME-LIFT STRUC. WLD,MED, P- 5000112007 - 5200001446×1
- 1175200017916Not stockedStrap×2
- BRACKET-FUEL WATR SEPARATOR P-5000176420 - 5200007556×1
- LATCH STRIKE,WIRE - 5000158982×4
- 2105200013852Not stockedPipe×1
- 2125200010300Not stockedPipe×1
- 2135200017917Not stockedPipe×1
- 2145200013823Not stockedPipe×1
- FITTING 3/8 NPT,5/8 BARB,45 DG - 5000162827×1
- 3165200011412Not stockedHose sleeve×1
- 3755200017936Not stockedPositive battery cable×1
- CABLE-BATTERY, NEG. 965mm - 5200000957×1
- Holder-Manual,3.25 w/Molded Feet - 5200008089×1
- 4515200012263Not stockedAir cleaner×1
- 4525200012264Not stockedElbow×1
- 4535200012265Not stockedBracket×1
- Bracket-Air Filter,Sml T4 P-5000176420 - 5200009393×1
- 5005200015559Not stockedClamp×1
- CLAMP-THREADED,1.56-2.50 - 5000112287×1
- CLAMP-WORM DRIVE 2.06 -3 - 5000154344×1
- CLAMP-HOSE,#20,.81-1.75 - 5000119906×1
- BOLT-L .25-10,BATTERY - 5000154319×2
- BATTERY HOLD-DOWN,LONG - 5100055571×1
- GASKET-LIFT EYE - 5000158118×1
- GASKET-RADIATOR COVER - 5000158849×1
- 6165200017792Not stockedInsulator×1
- 6175200016867Not stockedInsulator-exhaust×1
- 6185200016867Not stockedInsulator-exhaust×1
- 6195200015558Not stockedInsulator×1
- BATTERY-WET,GR 24 - 5000153757×1
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×10
- SCREW M12X25-10.9 HX SFLG MZP - 5000155248×8
- SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
- SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×4
- SCREW M8 X 30 HX.HD. - 5000011456×2
- NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×13
- NUT-LOCK M8 HEX - 5000010367×2
- 10185200017721Not stockedExhaust gasket, DOC×2
- 10195200017720Not stockedDiesel oxidation catalyst×1
- 10205200017722Not stockedExhaust gasket×1
