G50 Generator, Extended Run T4F

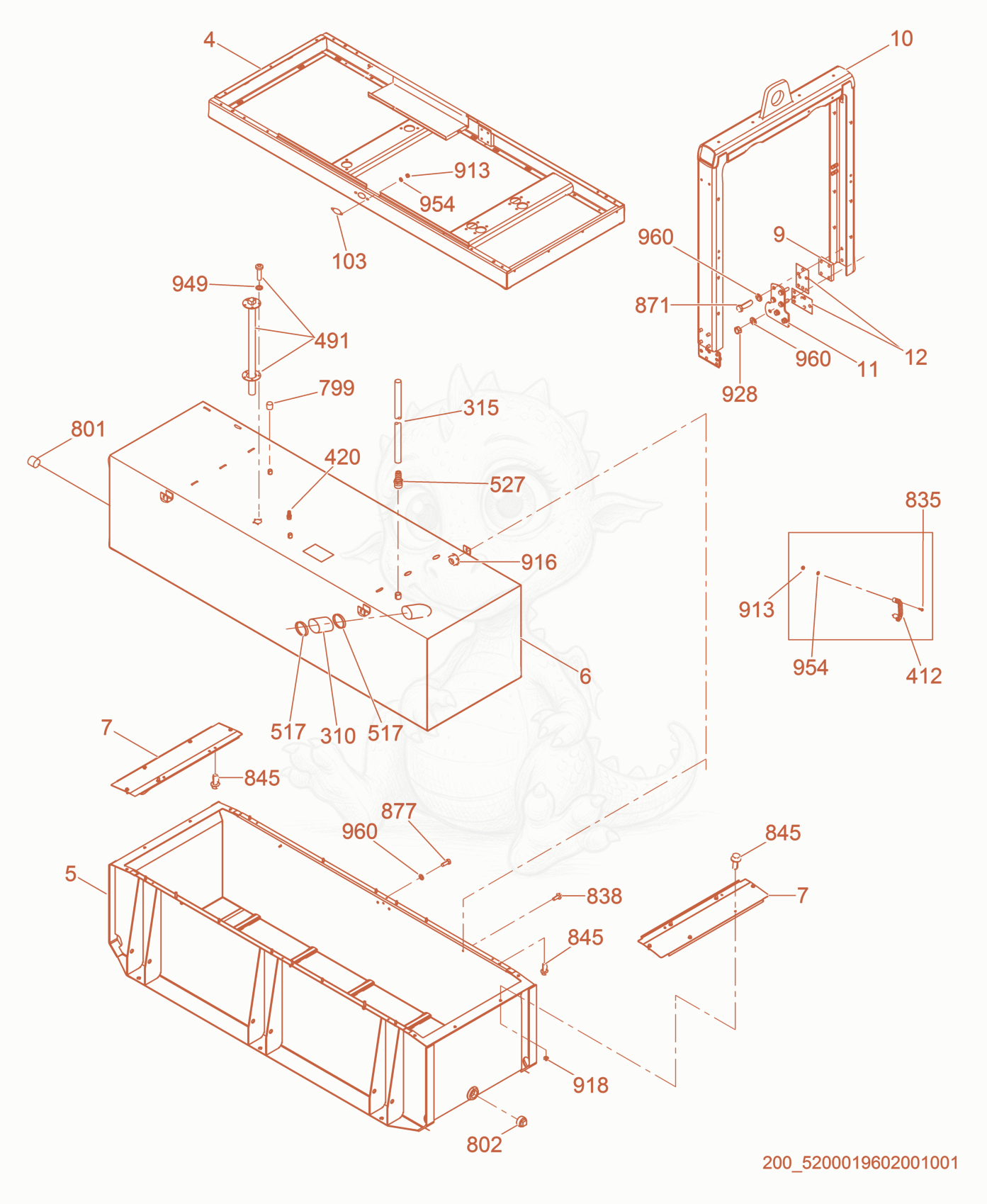

G50 Option-Extended Run Tank Diagram

Exploded parts diagram of the Option-Extended Run Tank of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 45200004050
    $1,079.56
    Frame-Skid Wldmnt Uppr, Blk - 5200004050×1
  • 55200004051
    $2,724.02
    Frame-Skid Lwr, 331 Gal, Blk - 5200004051×1
  • 65000171040
    $2,829.92
    TANK-FUEL,331 GAL P-5000112007 - 5000171040×1
  • 75100022663Not stocked
    Panel×2
  • 95000177445
    $50.36
    PLATE-LIFT STRUCTURE,MED - 5000177445×2
  • 105200003197Not stocked
    Lifting frame×1
  • 115000172346
    $66.46
    PLATE-LIFT SUPPORT,MED P-5000176420 - 5000172346×2
  • 125000177641
    $57.20
    PLATE-SHIM,MED EXT RUN P-5000176420 - 5000177641×4
  • 1035000158900
    $29.81
    PANEL-OIL DRAIN COVER,SKID P-5000176420 - 5000158900×1
  • 3105000159374
    $27.13
    HOSE-FUEL FILL 2-3/8 X 200MM - 5000159374×1
  • 3155000162777
    $7.75
    HOSE-FUEL 5/8 X 760MM - 5000162777×1
  • 4125000117815
    $11.08
    HANDLE-PUMP - 5000117815×4
  • 4205000181823
    $8.58
    FITTING-3/8 BARB X 3/8 F.NPT - 5000181823×1
  • 4915200001008
    $151.01
    Sensor-Fuel,650mm w/connector - 5200001008×1
  • 5175000154344
    $2.64
    CLAMP-WORM DRIVE 2.06 -3 - 5000154344×2
  • 5275000155285
    $38.76
    FITTING-FUEL VENT - 5000155285×1
  • 8015000153237
    $1.99
    PLUG-1/2 HEX SOCKET - 5000153237×1
  • 8025000159651
    $36.72
    PLUG,2NPT,SQHD,BK PIPE,RAL7043 P-176420 - 5000159651×1
  • 8355000154519
    $0.46
    SCREW M6X25 HX SER FLG CLR ZP - 5000154519×8
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×4
  • 8455000116164
    $0.69
    SCREW M10X25 HEX,SER.FLG ZP - 5000116164×16
  • 8715000172831
    $2.23
    SCREW M12X45X1.75,HX.HD.,10.9 - 5000172831×8
  • 8775000020378
    $0.58
    SCREW M12 X 30-10.9,HX HD - 5000020378×6
  • 9135000010368
    $0.10
    NUT-LOCK M6 HEX. - 5000010368×8
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9185000089316
    $0.29
    NUT-LOCK M10,SERR.,FLANGE - 5000089316×8
  • 9285000177630
    $1.31
    NUT M12,CLASS 10,MECH.ZN - 5000177630×7
  • 9495000064610
    $0.20
    SEAL-RING 5 X 7.5 - 5000064610×5
  • 9545000010624
    $0.03
    WASHER B6.4 FLAT - 5000010624×8
  • 9605000010620
    $0.26
    WASHER B13 FLAT - 5000010620×20
