G50 Generator, Extended Run T4F

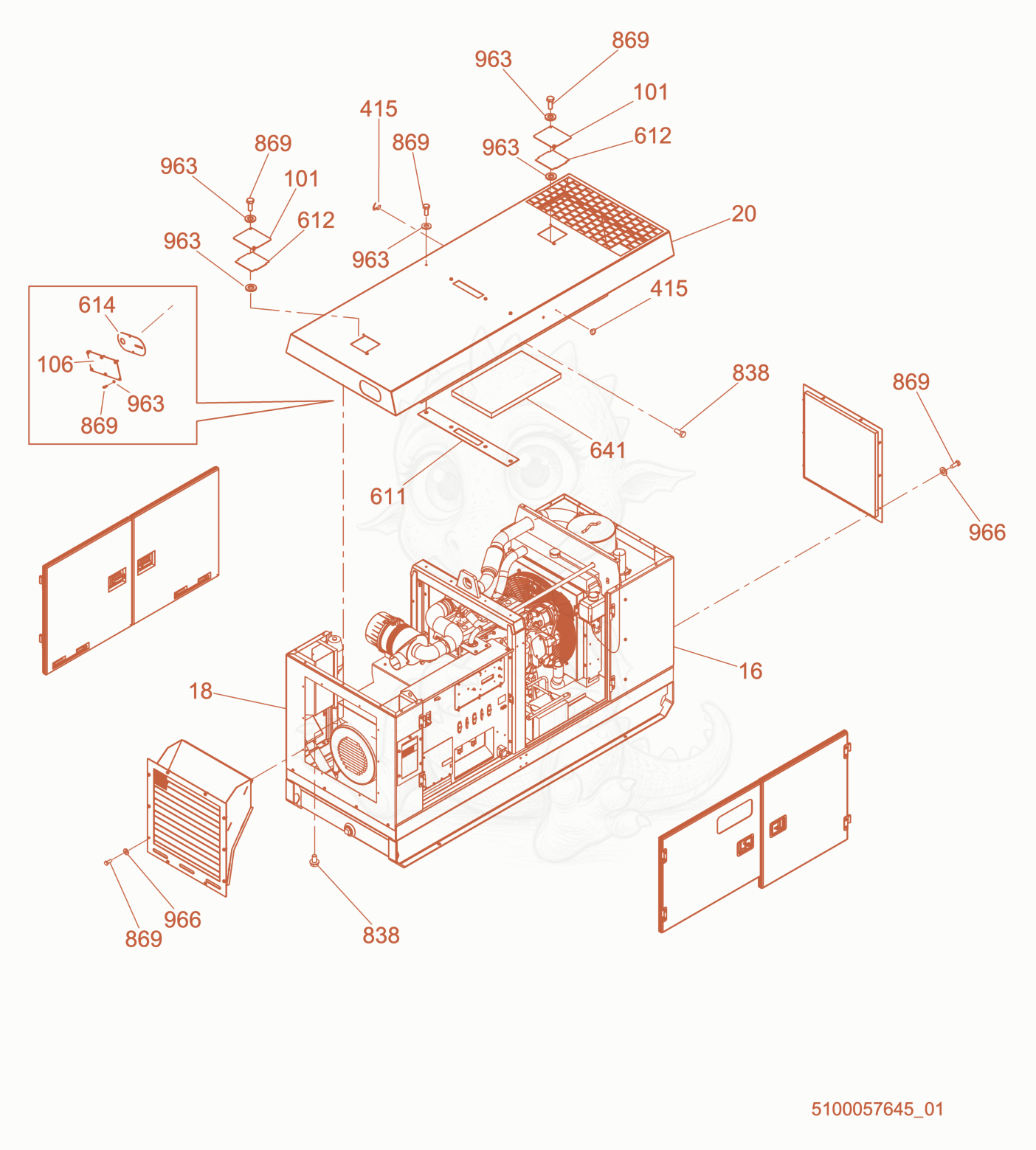

G50 Sheet Metal Assembly Diagram

Exploded parts diagram of the Sheet Metal Assembly of a Wacker Neuson G50, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 165100021158
    $1,089.80
    PANEL-ENCL FRONT WLDMT,MED, P-5100021100 - 5100021158×1
  • 185100021159
    $1,070.12
    PANEL-ENCL REAR WLDMNT,MED, P-5100021100 - 5100021159×1
  • 205100022038
    $2,623.04
    PANEL-ROOF,MED WELDMENT P-5100021100 - 5100022038×1
  • 1015100038676
    $18.29
    PANEL-ROOF RAD COVER,MG,MED P-5100021100 - 5100038676×2
  • 1065100038833
    $181.10
    PANEL-TELE ACCESS,MG,MED P-5100021100 - 5100038833×1
  • 4155000179122
    $0.09
    PLUG-SAE 3/8 ,POLYETHYLENE - 5000179122×4
  • 6115000158118
    $18.33
    GASKET-LIFT EYE - 5000158118×1
  • 6125000158849
    $1.89
    GASKET-RADIATOR COVER - 5000158849×2
  • 6415000181530
    $71.92
    INSULATOR-ROOF,FRONT - 5000181530×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×18
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×28
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×8
  • 9665000160626
    $0.06
    WASHER-LOCK M8 INT.STAR SST - 5000160626×20
