G70 Generator, Brazil, Premium

G70 Fuel Lines/Battery Diagram

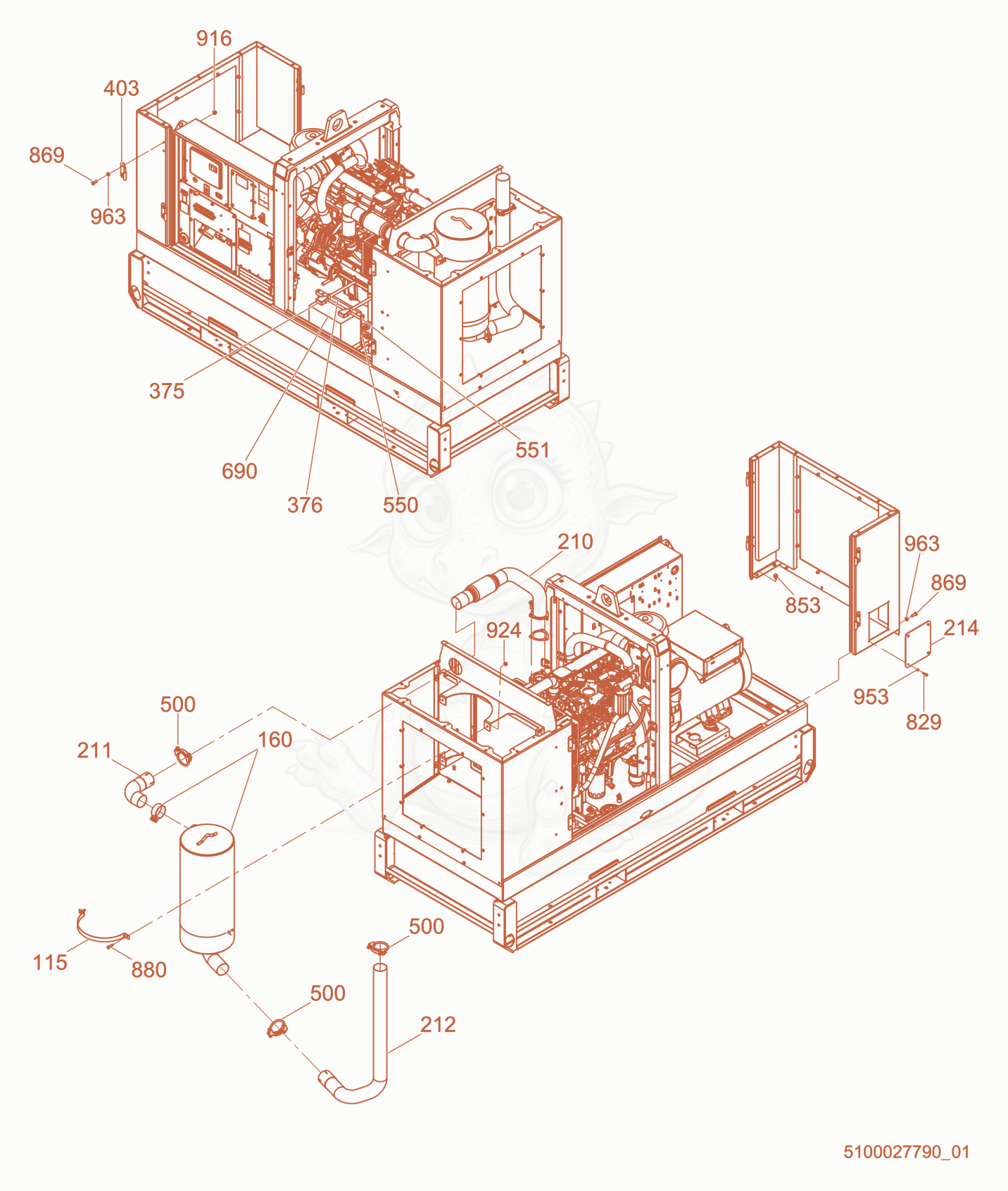

Exploded parts diagram of the Fuel Lines/Battery of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 1155100027191Not stocked
    Bracket×2
  • 1605000160646
    $1,919.01
    MUFFLER-MED - 5000160646×1
  • 2105200014178Not stocked
    Pipe, exhaust×1
  • 2115200017327Not stocked
    Pipe, exhaust×1
  • 2125200017320Not stocked
    Pipe, exhaust×1
  • 2145200017506Not stocked
    Panel×1
  • 3755000159697
    $63.14
    CABLE-BATTERY,POSITIVE - 5000159697×1
  • 3765200000957
    $78.02
    CABLE-BATTERY, NEG. 965mm - 5200000957×1
  • 4035200014959Not stocked
    Hinge pin×2
  • 5005000155303
    $5.63
    CLAMP 3 EXHAUST - 5000155303×3
  • 5505000154319
    $2.94
    BOLT-L .25-10,BATTERY - 5000154319×2
  • 5515000159046
    $45.69
    BRACKET-BATTERY HOLD DOWN - 5000159046×1
  • 6905000153757
    $332.74
    BATTERY-WET,GR 24 - 5000153757×1
  • 8295000154517
    $0.06
    SCREW M5X20-4.8-H PAN HD - 5000154517×4
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×4
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×4
  • 8805000011456
    $0.29
    SCREW M8 X 30 HX.HD. - 5000011456×4
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
  • 9245000010367
    $0.10
    NUT-LOCK M8 HEX - 5000010367×4
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×4
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×4
