G70 Generator, Brazil, Premium

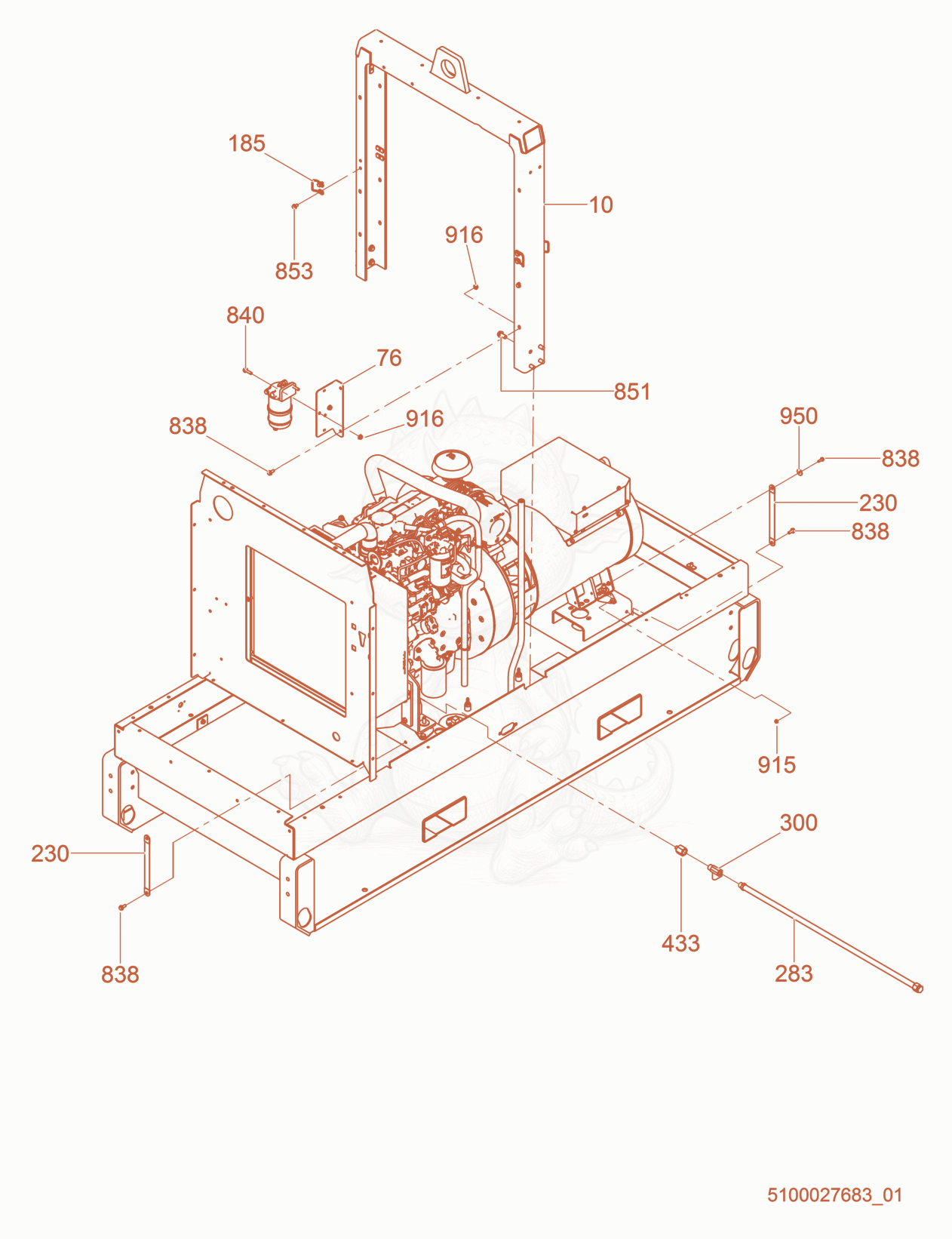

G70 Lifting Device Diagram

Exploded parts diagram of the Lifting Device of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 105200001446
    $1,276.56
    FRAME-LIFT STRUC. WLD,MED, P- 5000112007 - 5200001446×1
  • 765200021583Not stocked
    Bracket×1
  • 1855000158982
    $2.54
    LATCH STRIKE,WIRE - 5000158982×4
  • 2305000152978
    $17.62
    STRAP-GROUND 10 - 5000152978×2
  • 2835000176217
    $39.37
    HOSE-ASSY,DRAIN - 5000176217×1
  • 3005000154305
    $31.79
    VALVE-BALL 1/2 MALE X FEMALE - 5000154305×1
  • 4335200022310Not stocked
    Fitting×1
  • 8385000028404
    $0.26
    SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×12
  • 8405000085957
    $1.51
    SCREW M8 X 30,HX.HD,SER.FLG - 5000085957×2
  • 8515000155248
    $2.41
    SCREW M12X25-10.9 HX SFLG MZP - 5000155248×8
  • 8535000157021
    $0.57
    SCREW M8 X 14,HX.HD,SERR.FLG - 5000157021×8
  • 9155000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×1
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×4
