G70 Generator, Custom T4F

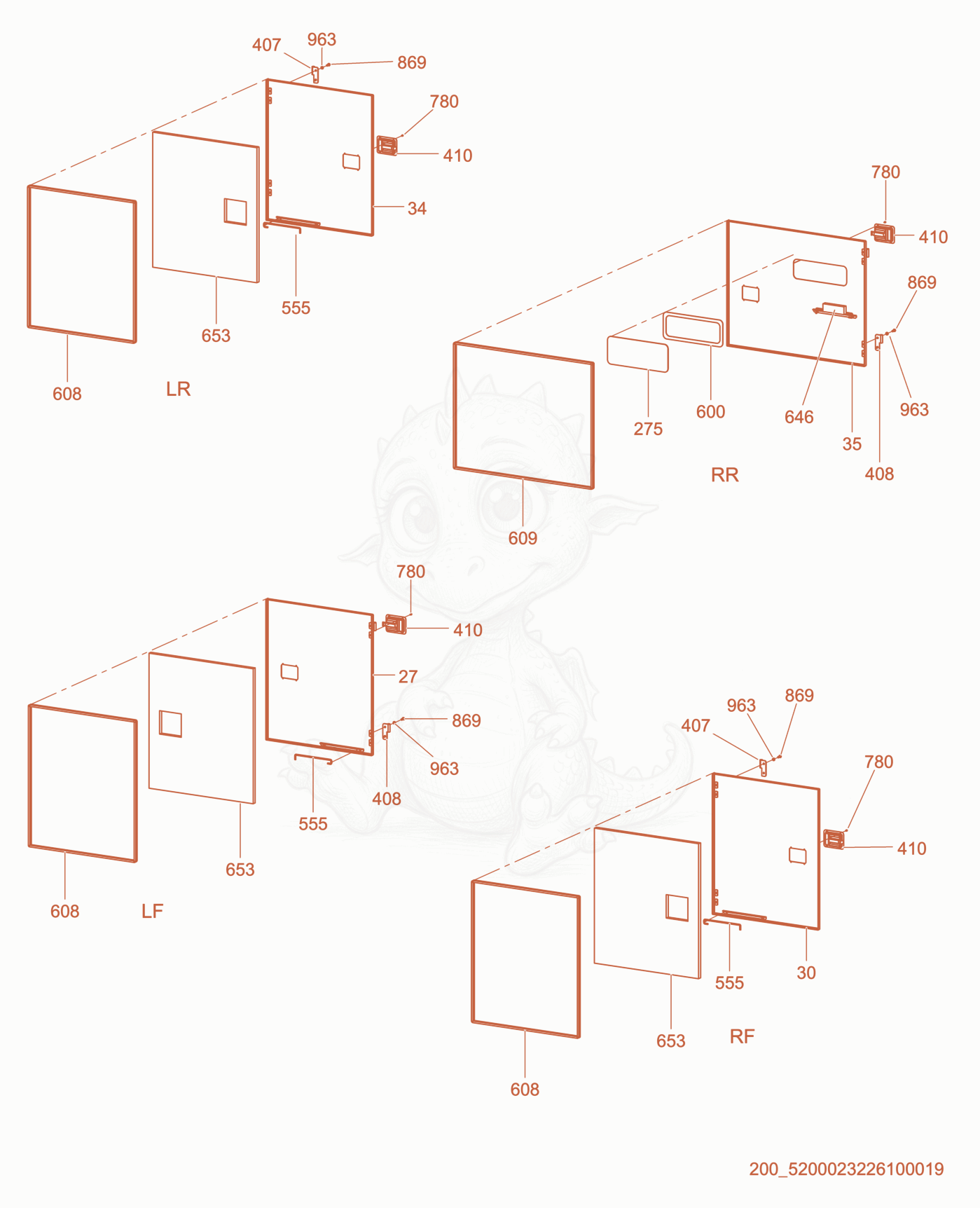

G70 Doors cpl. Diagram

Exploded parts diagram of the Doors cpl. of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 275100021160
    $789.51
    DOOR-LF,ML, P-5100021100 - 5100021160×1
  • 305100021118
    $334.95
    DOOR-RF,ML, P-5100021100 - 5100021118×1
  • 345100021121
    $873.86
    DOOR-LR,ML, P-5100021100 - 5100021121×1
  • 355100021127
    $452.28
    DOOR-RR(CONTROL),ML, P-5100021100 - 5100021127×1
  • 2755000176325
    $71.49
    WINDOW-CONTROL DOOR - 5000176325×1
  • 4075200014958Not stocked
    Hinge×4
  • 4085200014960Not stocked
    Hinge×4
  • 4105200015873Not stocked
    Latch×4
  • 5555000153022
    $28.99
    ROD-DOOR PROP - 5000153022×4
  • 6005000176326
    $11.95
    GASKET-WINDOW,CONTROL DOOR - 5000176326×1
  • 6085200012962Not stocked
    Seal Kit×3
  • 6095200012963Not stocked
    Seal Kit×1
  • 6465000164245
    $1.52
    INSULATOR-CONTROL DOOR,PROP - 5000164245×1
  • 6535000174510
    $163.68
    INSULATOR-DOOR,ML - 5000174510×3
  • 7805000176346
    $0.14
    RIVET .156 X .415 LG.,SST - 5000176346×16
  • 8695000158897
    $0.25
    SCREW M8X20 HX.HD.,SST - 5000158897×16
  • 9635000158899
    $0.07
    WASHER M8 FLAT,SST - 5000158899×16
