G70 Generator, Custom T4F

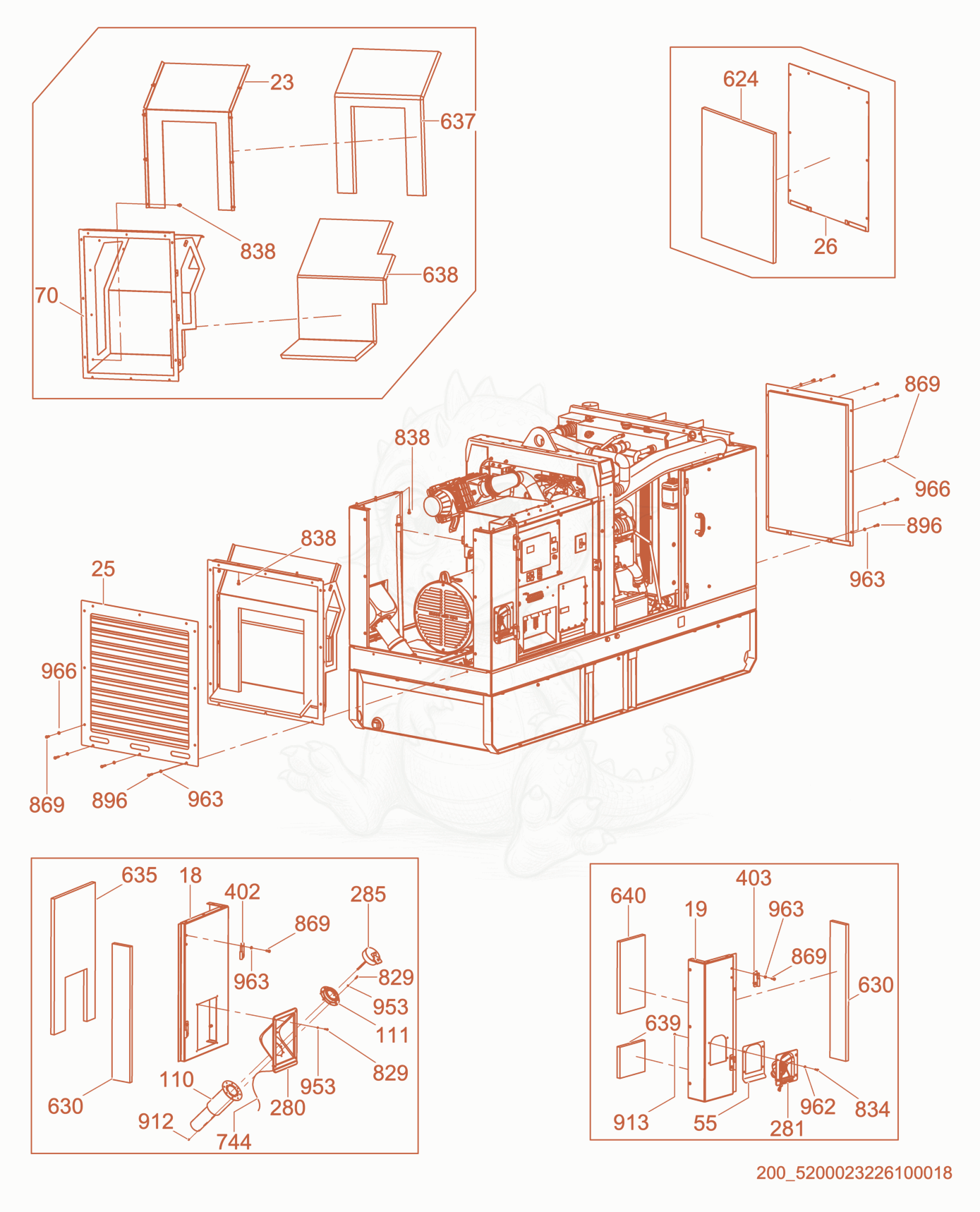

G70 Sheet Metal Assembly Diagram
- PANEL-LR SIDE,ML, P-5100021100 - 5100021138×1
- Panel-RR Side,ML,T4F P-5100021100 - 5100022063×1
- PANEL-INLET BAFFLE,ML P-5000112007 - 5100022743×1
- PANEL-REAR,AIR INLET,ML, P- 5000112007 - 5200001430×1
- PANEL-FRONT ACCESS,ML P-5000112007 - 5100022741×1
- 555200016877Not stockedPlate×1
- Duct-Rear,Air Inlet,ML,T4F P-5000112007 - 5100022738×1
- TUBE-FILLER WELDMENT P- 5000112007 - 5000171488×1
- PORT-FUEL FILL - 5000171136×1
- 2815200012487Not stockedPort×1
- CAP-FUEL FILL - 5000171137×1
- 4025200014957Not stockedHinge pin×2
- INSULATOR-EXH COMP,FNT,ML - 5000174502×1
- INSULATOR-REAR SIDE,ML - 5000174503×2
- INSULATOR-CORNER,LR,ML - 5000174504×1
- INSULATOR-REAR INL BAFFLE,ML - 5000174560×1
- 6385200023807Not stockedInsulator×1
- Insulator-Corner,DEF Fill,Bottom,ML, T4 - 5100017412×1
- 6405200023808Not stockedInsulator×1
- 7445200013415Not stockedWire-ground×1
- SCREW M5X20-4.8-H PAN HD - 5000154517×4
- 8345200018934Not stockedScrew×4
- SCREW M8 X 20,HX.HD,SER.FLG - 5000028404×10
- SCREW M8X20 HX.HD.,SST - 5000158897×26
- SCREW M8 X 35 HX HD,A2 304 - 5000173783×6
- NUT-LOCK M5 HEX. - 5000010369×8
- NUT-LOCK M6 HEX. - 5000010368×4
- WASHER B5.3 FLAT - 5000010625×4
- 9625200018935Not stockedWasher×4
- WASHER M8 FLAT,SST - 5000158899×14
- WASHER-LOCK M8 INT.STAR SST - 5000160626×18
