G70 Generator, Custom T4F

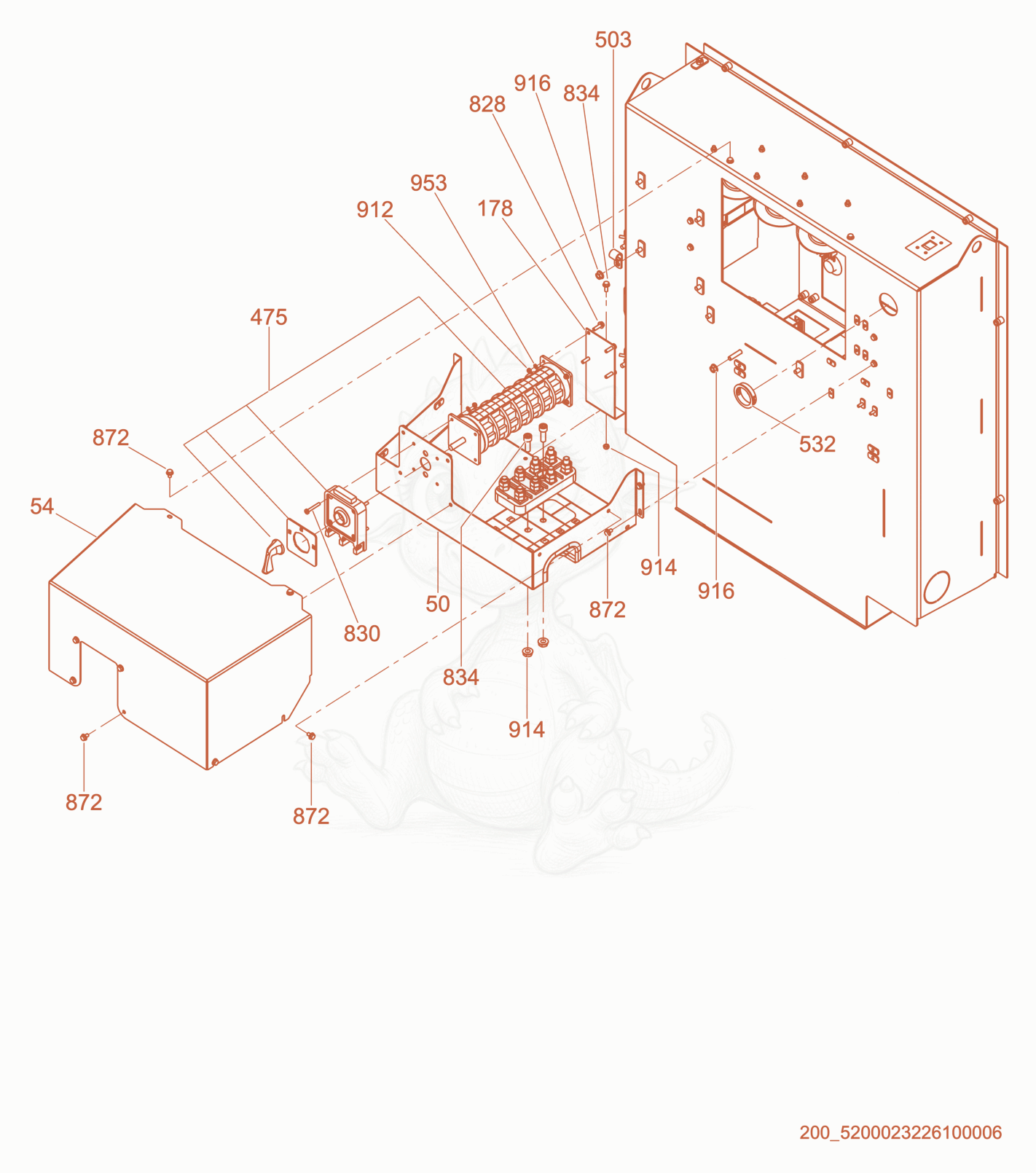

G70 Voltage Selector Switch Box Diagram

Exploded parts diagram of the Voltage Selector Switch Box of a Wacker Neuson G70, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 505100015744
    $480.81
    Panel-SS Box Bottom,ML P-176420 - 5100015744×1
  • 545100015743
    $414.23
    Panel-SS Box Top,ML P-176420 - 5100015743×1
  • 1785200024218Not stocked
    Bracket×1
  • 4755000153059
    $1,022.01
    SWITCH-PHASE,125 AMP - 5000153059×1
  • 5035000153746
    $1.14
    CLAMP-TUBING .625 - 5000153746×1
  • 5325000153092
    $0.73
    BUSHING 1-5/8 IN. I.D. - 5000153092×1
  • 8285000154516
    $0.09
    SCREW M5X16-4.8-H PAN HD ZP - 5000154516×4
  • 8305000154518
    $0.14
    SCREW M5X35-4.8-H PAN HD ZP - 5000154518×4
  • 8345000029116
    $0.18
    SCREW M6 X 1 X 20,FLANGE LOCK - 5000029116×3
  • 8725000073164
    $0.42
    SCREW M6 X 10,HX.HD,SER.FLG - 5000073164×14
  • 9125000010369
    $0.03
    NUT-LOCK M5 HEX. - 5000010369×8
  • 9145000029117
    $0.03
    NUT-LOCK M6,HEX,SERR,FLANGE - 5000029117×3
  • 9165000030066
    $0.16
    NUT-LOCK M8,HEX,SERR.,FLANGE - 5000030066×2
  • 9535000010625
    $0.14
    WASHER B5.3 FLAT - 5000010625×8
