G 7AI

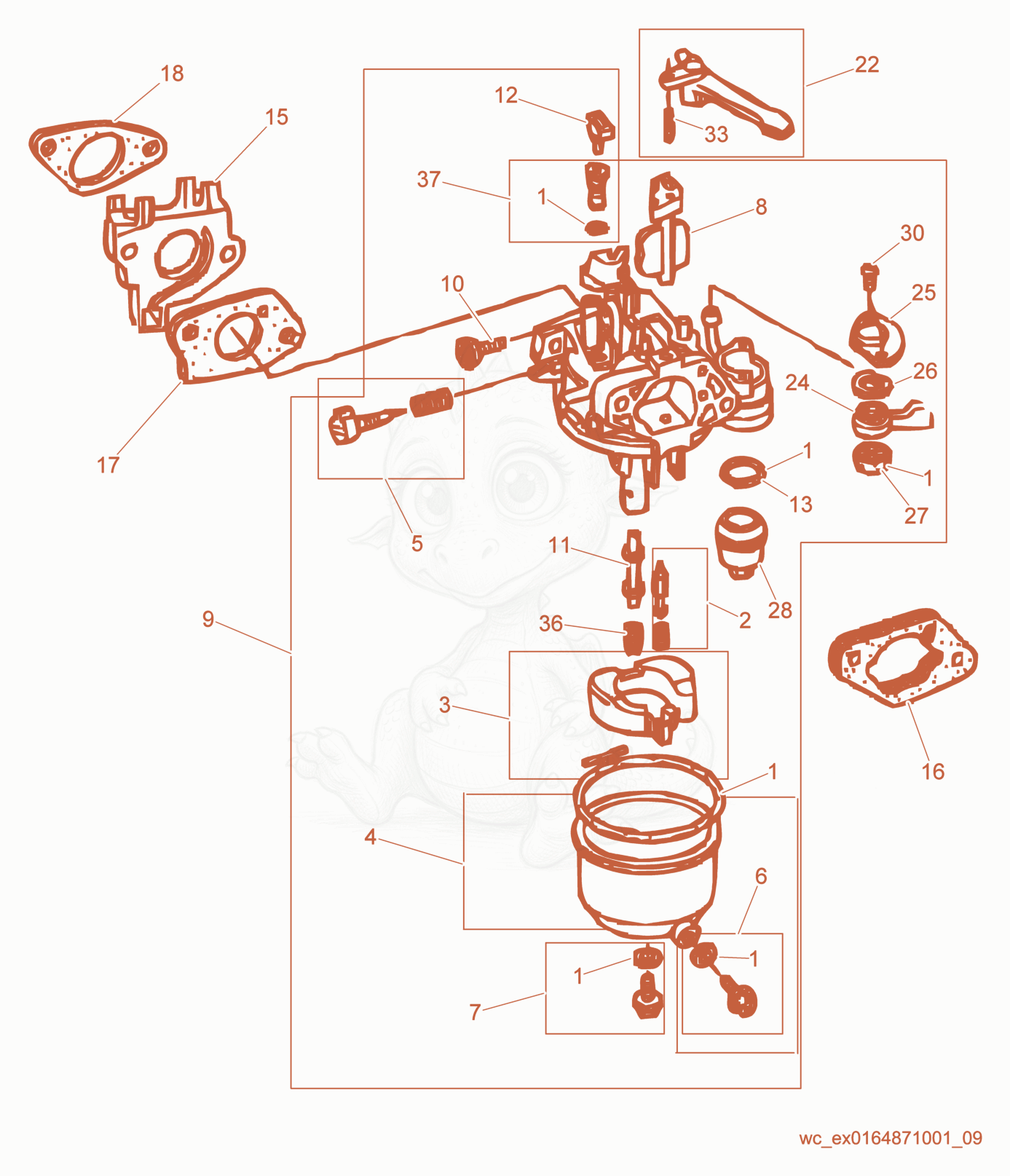

G7AI Carburetor cpl. Diagram

Exploded parts diagram of the Carburetor cpl. of a Wacker Neuson G7AI, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000074767
    $22.87
    SET-CARBURETOR GASKETS - 5000074767×1
  • 25000074759
    $53.05
    SET-FLOAT VALVE - 5000074759×1
  • 35000217483
    $62.99
    FLOAT COMPL. - 5000217483×1
  • 45200000429
    $35.49
    Set-carburetor float - 5200000429×1
  • 55000089286
    $25.15
    SCREW-SET - 5000089286×1
  • 65200000430
    $13.04
    Screw w/washer, carb. drain - 5200000430×1
  • 75200000431
    $6.91
    Screw w/washer, carb. bowl - 5200000431×1
  • 85200000432
    $34.64
    Choke Shaft Set - 5200000432×1
  • 95200000433
    $389.29
    Carburetor cpl. - 5200000433×1
  • 105000071018
    $22.04
    SCREW-THROTTLE STOP - 5000071018×1
  • 115200000434
    $1.63
    Jet-main - 5200000434×1
  • 125000089281
    $12.55
    SET-COLLAR - 5000089281×1
  • 135000071024
    $7.73
    GASKET-FUEL STRAINER CUP - 5000071024×1
  • 155200000436
    $4.04
    Insulator-carburetor mount - 5200000436×1
  • 165000074761
    $15.63
    SPACER-CARBURETOR MOUNT - 5000074761×1
  • 175200000437
    $1.30
    Gasket-carburetor mount - 5200000437×1
  • 185200000438
    $1.34
    Gasket-carburetor insulator - 5200000438×1
  • 225000071013
    $12.86
    LEVER-CHOKE CONTROL - 5000071013×1
  • 245000150266
    $13.50
    LEVER-FUEL VALVE - 5000150266×1
  • 255000073269
    $7.96
    PLATE-FUEL VALVE SETTINGS - 5000073269×1
  • 265000073270
    $5.13
    SPRING-FUEL LEVER - 5000073270×1
  • 275000073272
    $5.07
    GASKET-FUEL VALVE LEVER - 5000073272×1
  • 285000071023
    $28.91
    FILTER-FUEL STRAINER CUP - 5000071023×1
  • 305000156674
    $1.14
    X-5000078550-SCREW 3X6,PAN - 5000156674×2
  • 335000071014
    $2.62
    PIN 2 X 12MM,SPRING TYPE - 5000071014×1
  • 365000125841
    $9.70
    JET-MAIN,SIZE 90 - 5000125841×1
  • 365000089290
    $9.70
    JET-MAIN #92 - 5000089290×1
  • 365000162702
    $8.72
    JET-MAIN #95 - 5000162702×1
  • 375000081997
    $27.73
    SET-PILOT JET,#38 - 5000081997×1
