G 7AI

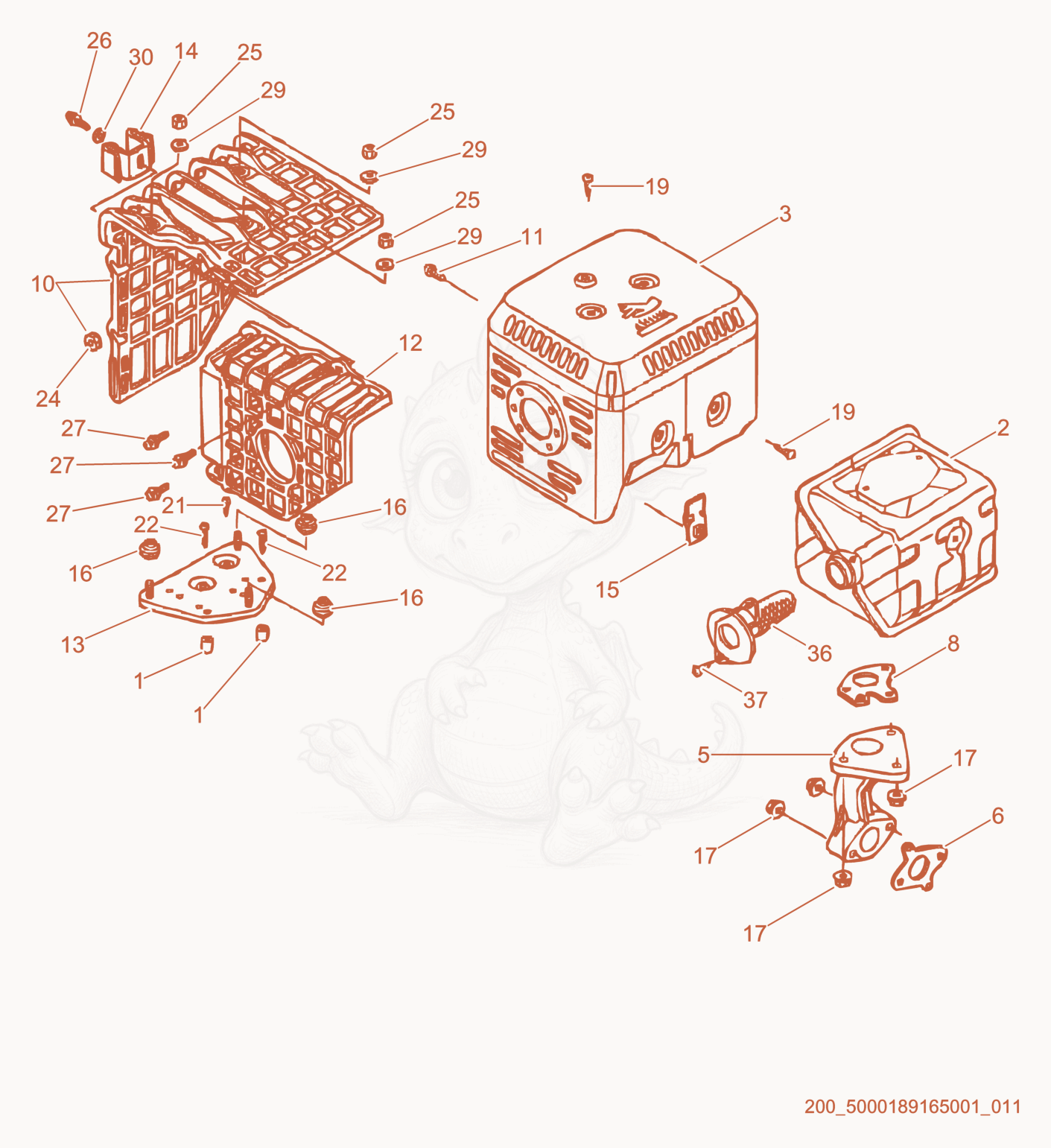

G7AI Muffler cpl. Diagram

Exploded parts diagram of the Muffler cpl. of a Wacker Neuson G7AI, with numbered balloons — Hover a box for the part, its price and its row below. Click it to select.

25200000446
$66.68
Muffler Cpl. - 5200000446×1
35200000447
$33.84
Cover-muffler - 5200000447×1
55200000448
$33.11
Pipe-exhaust - 5200000448×1
65000162672
$3.47
GASKET-EXHAUST - 5000162672×1
85000081640
$14.64
GASKET-MUFFLER - 5000081640×1
115000089284
$2.33
SCREW M6X10,TAPPING - 5000089284×1
155200000450
$18.39
Plate - 5200000450×1
175000074738
$1.45
NUT M8,HEX.FLANGE - 5000074738×5
195000071070
$2.73
SCREW M5 X 8,TAPPING - 5000071070×4
215000071070
$2.73
SCREW M5 X 8,TAPPING - 5000071070×1
365200000449
$23.10
protection - 5200000449×1
375000071070
$2.73
SCREW M5 X 8,TAPPING - 5000071070×2
