G 7AI

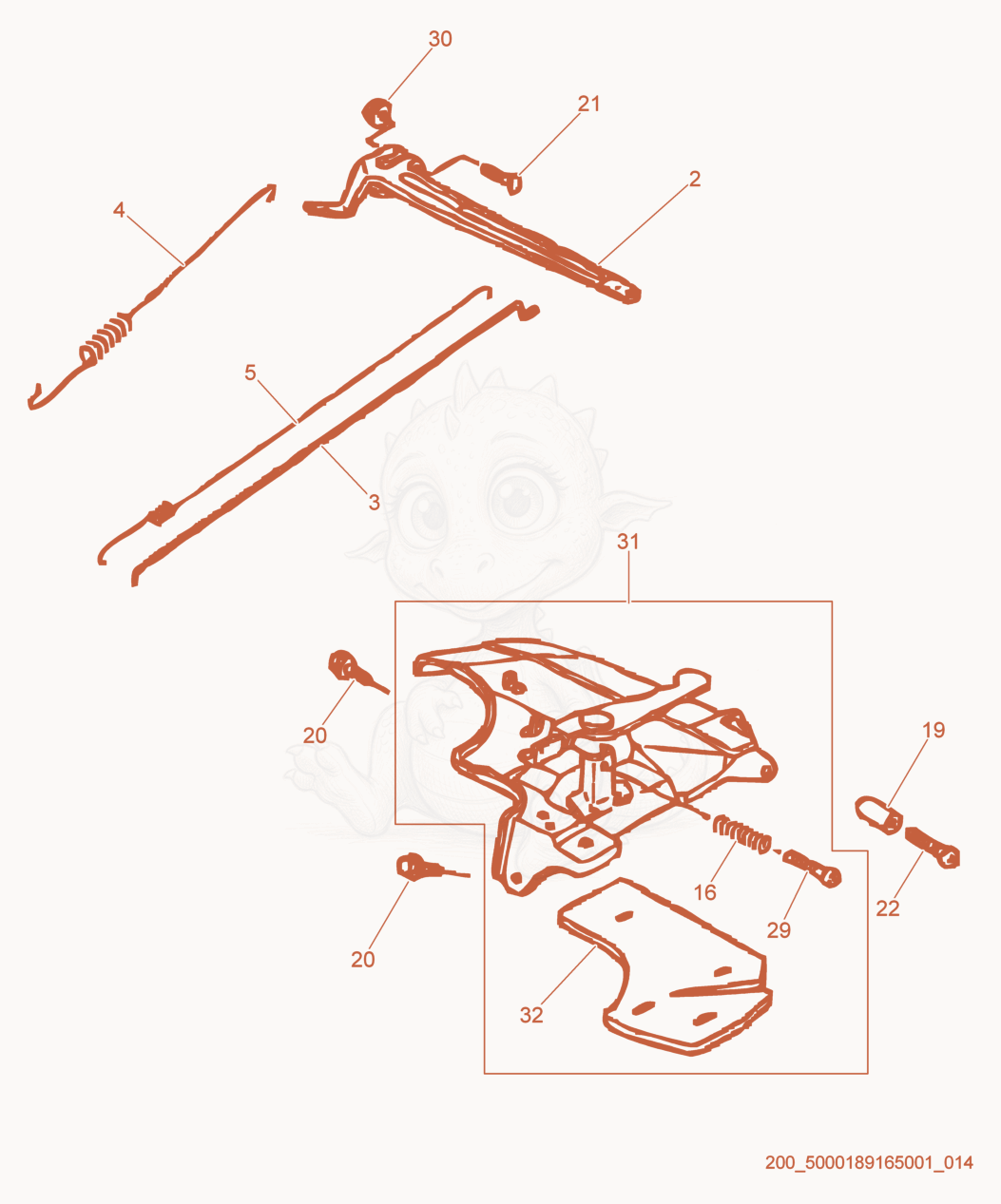

G7AI Throttle cpl. Diagram
- LEVER-GOVERNOR CONTROL - 5000075845×1
- ROD-GOVERNOR CONTROL - 5000075844×1
- Spring - 5000209990×1
- SPRING-THROTTLE RETURN - 5000075843×1
- SPRING-ADJUSTING - 5000054088×1
- SPACER - 5000156684×1
- SCREW M6 X 12,HX.FLANGE HD. - 5000053990×2
- Bolt - 5200000457×1
- SCREW 5X25 - 5000156685×1
- SCREW 5 X 45 - 5000116740×1
- NUT M6,HEX,FLANGE - 5000071056×1
- Control cpl. - 5200000456×1
- Bracket-control base - 5200000458×1
