HD69 Direct heater cpl. Diagram

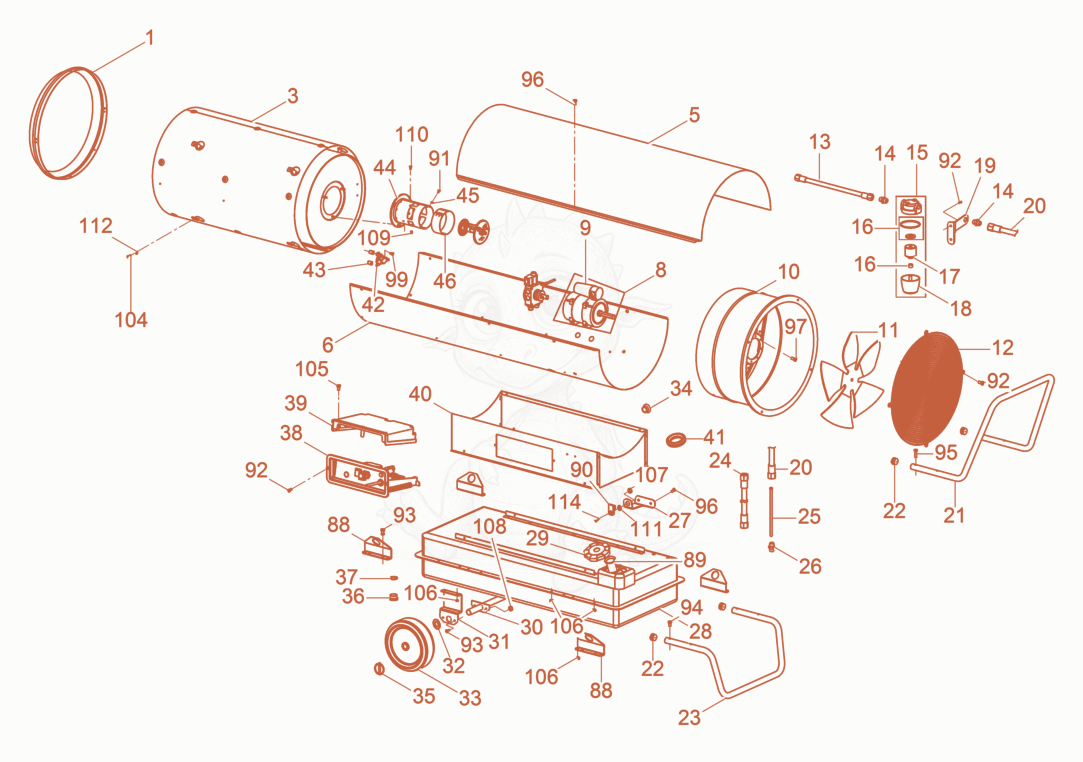

Exploded parts diagram of the Direct heater cpl. of a Wacker Neuson HD69, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 15000227930Not stocked
    Ring×1
  • 35000227931Not stocked
    Combustion chamber×1
  • 55000227932Not stocked
    Cover×1
  • 65000227933Not stocked
    Lower part×1
  • 85000227821Not stocked
    Engine complete×1
  • 95000227830Not stocked
    Capacitor×1
  • 105000227857Not stocked
    Flange×1
  • 115000211235Not stocked
    Fan blade×1
  • 125000211217Not stocked
    Screen grid×1
  • 135000227949Not stocked
    Tube×1
  • 145000227935Not stocked
    Connector×1
  • 155000211255Not stocked
    Oil filter×1
  • 165000211260Not stocked
    Gasket Set×1
  • 175000211256Not stocked
    Filter Element×1
  • 185000211258Not stocked
    Filter housing×1
  • 195000229063Not stocked
    Support×1
  • 205000227948Not stocked
    Tube×1
  • 215000227957Not stocked
    Handle×1
  • 225000229055Not stocked
    Shock absorber×4
  • 235000227958Not stocked
    Foot×1
  • 245000227950Not stocked
    Tube×1
  • 255000227939Not stocked
    Intake pipe×1
  • 265000227941Not stocked
    Connector×1
  • 275000229062Not stocked
    Hook×1
  • 285000227866Not stocked
    Tank×1
  • 295000210704Not stocked
    Fuel tank cap×1
  • 305000229067Not stocked
    Axle×1
  • 315000227865Not stocked
    Clamp×1
  • 325000227852Not stocked
    Thermostat×1
  • 335000210690Not stocked
    Wheel×2
  • 345000210699Not stocked
    Push-in plug×1
  • 355000227956Not stocked
    Split×1
  • 365000227938Not stocked
    Plug (threaded)×1
  • 375000227810Not stocked
    O-Ring×1
  • 385100003085Not stocked
    Switch box×1
  • 395000227967Not stocked
    Covering×1
  • 405000229065Not stocked
    Box×1
  • 415000227809Not stocked
    Cable bushing×1
  • 425000210832Not stocked
    Thermostat×1
  • 435000227861Not stocked
    Spacer×1
  • 445000227890Not stocked
    Burner pipe×1
  • 455000227838Not stocked
    Terminal strip×1
  • 465000227891Not stocked
    Burner air shutter×1
  • 885000211051Not stocked
    Lifting eye×4
  • 895000211259Not stocked
    Filter×1
  • 905000229061Not stocked
    Cable bushing×1
  • 915000211713Not stocked
    Screw×1
  • 925000211527Not stocked
    Screw×6
  • 935000229069Not stocked
    Screw×4
  • 945000229070Not stocked
    Screw×4
  • 955000229071Not stocked
    Screw×2
  • 965000229072Not stocked
    Screw×12
  • 975000211177Not stocked
    Screw×4
  • 995000211542Not stocked
    Screw×2
  • 1045000229083Not stocked
    Screw×2
  • 1055000229084Not stocked
    Screw×4
  • 1065000211186Not stocked
    Nut×10
  • 1085000229086Not stocked
    Cap nut×4
  • 1095000229087Not stocked
    Nut×3
  • 1105000229089Not stocked
    Wing screw×1
  • 1125000211193Not stocked
    Washer×2
  • 1145000229073Not stocked
    Screw×1
