Direct oil-fired space heaters

HD69 Controller housing cpl. Diagram

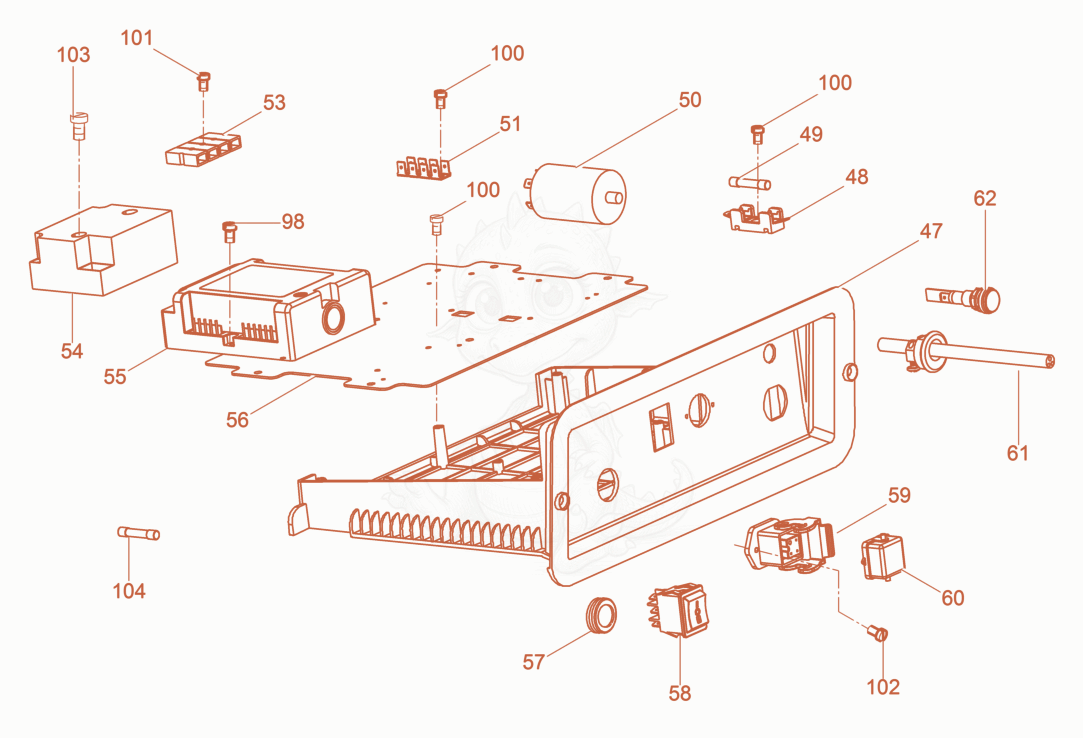

Exploded parts diagram of the Controller housing cpl. of a Wacker Neuson HD69, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 475000227881Not stocked
    Bracket×1
  • 485000227834Not stocked
    Switch×1
  • 495000210758Not stocked
    Fuse×1
  • 505000210794Not stocked
    Interference filter×1
  • 515000227832Not stocked
    Terminal strip×1
  • 525000210792Not stocked
    Relay×1
  • 535000210803Not stocked
    Clip×1
  • 545000210789Not stocked
    Transformer×1
  • 555100002532Not stocked
    Control box×1
  • 565000227862Not stocked
    Plate×1
  • 575000227833Not stocked
    Protection×1
  • 585000227813Not stocked
    Switch×1
  • 595000227836Not stocked
    Thermostat×1
  • 605000227837Not stocked
    Cap×1
  • 615000227843Not stocked
    Cable assembly×1
  • 625000227825Not stocked
    Pilot lamp×1
  • 985000211180Not stocked
    Oval head screw×2
  • 1005000211181Not stocked
    Oval head screw×7
  • 1015000211547Not stocked
    Screw×1
  • 1025000229077Not stocked
    Screw×2
  • 1035000229079Not stocked
    Screw×2
  • 1045100003089Not stocked
    Fuse×1
