Direct oil-fired space heaters

HD69 Pump assembly Diagram

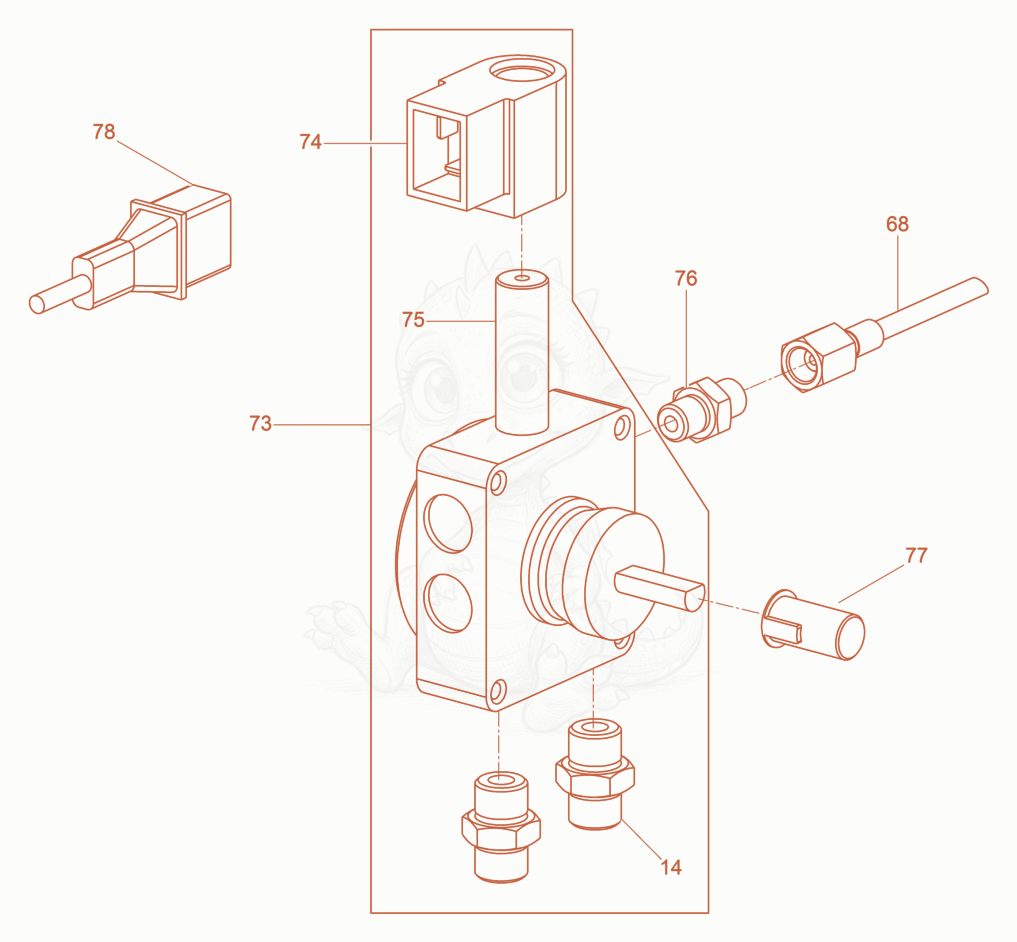

Exploded parts diagram of the Pump assembly of a Wacker Neuson HD69, with numbered balloons
Hover a box for the part, its price and its row below. Click it to select.
  • 145000227935Not stocked
    Connector×2
  • 685000227945Not stocked
    Hose×1
  • 735000211267Not stocked
    Oil Pump×1
  • 745000211253Not stocked
    Solenoid coil manipulation×1
  • 755000211254Not stocked
    Solenoid×1
  • 765000227936Not stocked
    Connector×1
  • 775000227824Not stocked
    Coupling×1
  • 785000227984Not stocked
    Power cable×1
